| Key Features
|
Intel® Celeron J1900 CPU, 2*LAN?1*USB3.0?3*USB2.0, 2*COM, DC 9~36V, IP65 front panel protection

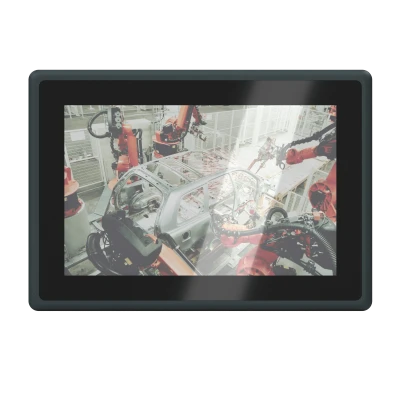

ALAD-A1001T is an intelligent fanless embedded panel PC equipped with Intel Baytrail Celeron J1900 CPU and 10.1” 1280*800 resolution high brightness TFT LCD. It supports flat panel 5-wire resistive touch screen, optional multi-touch projected capacitive touch screen. It is widely used in logistics and warehousing management fields.
Specification
| |||
| CPU | Intel Baytrail-D Celeron J1900, 2.0~2.42GHz, 4C/4T, 22nm, TDP 10W | ||
| System Memory | 1*DDR3L 1333MHz SODIMM? MAX. 8GB | ||
| Expansion | 1*Full size Mini PCIe with PCIe X1 and USB with SIM slot, support 4G LTE/Wifi/BT etc.? 1*Full size mSATA with USB2.0; 1*JHC-Express-01 EIO(PCIe,USB2.0,LPC,SMBus, PS2) | ||
| Intel Graphics | Gen7 Intel HD Graphics, Max. Res: VGA: 1920*1200@60Hz, support OpenGL 3.2, DirectX 11, OpenCL 1.2, MPGE2/H.264 | ||
| Audio | optional support Realtek ALC662VD, support 5.1 sound channel | ||
| LAN | 2*Intel I211-AT PCIe Gigabit Ethernet, 10/100/1000M self-adaption | ||
| Storage | 1*2.5'' SATA 3.0 HDD/SSD; 1*mSATA Full-height card, support AHCI | ||
| I/O ports | 2*RJ45 LAN with LEDs, 1*VGA, 1*USB3.0 Type A, 3*USB2.0 Type A 2*COM: RS232/422/485, DB9 1*Line-out, optional audio?2*2W Speaker | ||
| I-Port | 1*Mini PCIe(PCIeX1&USB signal) | ||
| LED | 1*Power LED, 1*HDD LED, 3*CPU temperature LEDs (Red is warning; Yellow is high; Green is normal) | ||
| Control SW | 1*Power button, 1*ATX Power SW, | ||
| Power Supply | DC IN 9~36V, short circuit, overvoltage and overcurrent pro. Con. TDP: 12V/1.1A(2.5"HDD) | ||
| Watchdog Timer | Watchdog timeout programmable via software 1 to 255 second | ||
| OS Support | Windows 7, Windows 8.1, Windows 10, Linux Fedora Ubuntu | ||
Mechanical & Environmental | |
|---|---|
| Construction | Aluminum die-casting front bezel and chassis, fin-shaped radiator shell |
| Operating Temperature | 0~50? -HDD(-10~55? -SSD ), with airflow |
| Storage Temperature | -20~60 ? |
| Operating Humidity | 10~95%@40, non-condensing |
| Shock | 10g peak acceleration(duration 11ms), in operating with HDD |
| Vibration | 1g 5~500Hz in operating with HDD |
| Mounting | Panel mounting, VESA 100*100 |
| Dimension | (W*H*D):275*193*51mm; mounting cut out(W*H): 271*189mm |
| Net Weight | 1.9KG |
| EMC | CE, FCC Class A |
LCD | |
|---|---|
| Type | 10.1''TFT LED Backlight |
| Resolution | 1280*800 |
| Color | 16.7M colors |
| Pixel Pitch(mm) | 0.1695*0.1695 |
| Brightness(cd/m2) | 350 |
| Viewing Angle | 85 Degree(left), 85 Degree(right), 85 Degree(up), 85 Degree(down) |
| Operating Temperature | -20~70? |
| Backlight Lifetime | 15000 Hours |
Touch | ||
|---|---|---|
| Type | 5 wire resistive touch | Projected capacitive touch |
| Resolution | gapless | gapless |
| Light Transmittance | 83% | 90% |
| Interface | USB | USB |
| Consumption | +5V @ 200mA | +5V @ 300mA |
| OS | Windows/Linux | Windows/Linux |
| Click Lifetime | 15 million times | 3 billion times |
| ||||||
| Model | Luminance | Camera | Touch Screen | Specifications | ||
| ALAD-A1001T/S001-G | 350 | n/a | 5-wires resistive touch screen | 10.1” TFT LCD, Intel J1900 CPU, 2*COM(2*RS232/422/485/), 4*USB 2*LAN, 1*Mine PCIe, 1*VGA, 1*Line out, 1*2.5?SATA Bay, 1*mSATA, 2*2W power speaker? DC 9~36V power supply | ||
| ALAD-A1001T/S002-G | 350 | 500M | 5-wires resistive touch screen | |||
| ALAD-A1001T/T001-G | 500 | n/a | 5-wires resistive touch screen | |||
| ALAD-A1001T/T002-G | 500 | 500M | 5-wires resistive touch screen | |||
| ALAD-A1001T(P)/S001-G | 350 | n/a | Projected capacitive touch screen | |||
| ALAD-A1001T(P)/S002-G | 350 | 500M | Projected capacitive touch screen | |||
| ALAD-A1001T(P)/T001-G | 500 | n/a | Projected capacitive touch screen | |||
| ALAD-A1001T(P)/T002-G | 500 | 500M | Projected capacitive touch screen | |||
| PA-60DC12 | AC/DC power adapter, DC12V/5A, 60W | |||||
