| Key Features - Aluminum die–casting chassis, Full Flat Mirror Panel
- 15.6'' Full HD LCD, Multi-point capacitive touch
- Intel® Elkhart lake Soc CPU, fanless design
- 1*DDR4 3200 SODIMM, up to 32GB
- 1*Mini PCIe, 1*M.2 B-Key Type 3042/3052
- 4*COM, 2*LAN, 4*USB3.2, 1*8-bit DIO (opt.)
- 2.5”SATA Bay, 1*mSATA, 1*Line out, 2*3W Speaker
- DC 9~36V power input
- Standard VESA mount and panel mounting
Datasheet |

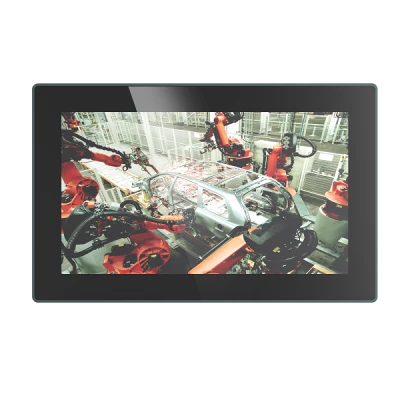

ALAD-A1510T | Industrial Panel Computer
15.6'' TFT LCD Capactive Touch, Intel® Elkhart lake Soc CPU, 4*COM, 2*LAN, 4*USB3.2, 1* Line out?1*2.5“ SATA bay, 1*mSATA, DC 9~36V
ALAD-A1510T(P) is a full flat mirror panel powered by an Intel® Elkhart lake Soc CPU series processor. It adopts 15.6 "1920*1080 resolution full HD TFT LCD and fully fits surface projection multi-point capacitive touch screen. The product has a comprehensive I/O interface, supporting 1*2.5 "SATA disk and 1*mSATA dual storage; Built-in 1*Mini PCIe and 1*M.2 3042/3052 expansions, wide voltage DC power supply from 9 to 36V, aluminum die-cast body without fan heat dissipation, various installation modes, suitable for intelligent MES system and device management HMI.
Specification
System | CPU | Intel® Elkhart lake SoC CPU: Celeron J6412 2.0-2.6GHz 4-core 4-thread or Celeron N6210 1.2-2.6GHz dual-core dual-thread |
Chipset | Intel® CPU SoC MCP |
System memory | 1*DDR4 3200 MHz SODIMM, up to 32GB |
BIOS | AMI EFI BIOS, 128Mbit SPI flash memory |
Storage | 1*2.5'' SATA HDD bay, support SATA3.0 6Gbps HDD/SSD; 1*mSATA |
Display | 15.6 "1920*1080@60Hz Full HD TFT LCD, 1*HDMI for extended display Intel UHD Graphics or iRIS® X? Graphics, Supports the Intel DL boost deep learning to strengthen technology, DirectX12.1, OpenGL 4.6 and OpenCL 3.0, HDMI Max resolution 4096*2304@60Hz |
Expansion | 1*Mini PCIe (PCIe&USB signal), supports a functional module with PCIe or USB signals 1*M.2 B-Key Type 3042/3052 with SIM card slot, supports 4G LTE/5G NR |
Audio | Realtek ALC897 controller, support 5.1 channel, 2*3W Speaker |
Real I/O | 4*COM: 2*RS232/422/485, 2*RS232, DB9; 1*HDMI; 1*Line out; 4*USB3.2 Type A ; 2*RJ45; 1*3 pin DC-IN terminal pin; 1*Remote SW |
Front I/O | / |
LAN | 2*Intel I226V PCIe Gig. Ethernet, 10/100/1000Mbps, support WOL |
Control SW/LED | Power LED, 1*CMOS, 1*AT/ATX, 2-pin terminal remote switch |
Power Supply | DC to DC: 9~36V input, consumption: 26.4W (Celeron J6412 , 8G DDR4, 128G SSD) |
OS | Windows 11*IoT enterprise? Windows 10*IoT enterprise?Android?SUSE?Ubuntu?Wind River?Red Hat*Enterprise?Wind River VxWorks*7?Yocto |
Construction | Aluminum die–casting front bezel , fin–shaped radiator shell |
Mechanical & Environmental
| Operating Temperature | 0~50? –HDD( –10~55? –SSD), with airflow |
Storage Temperature | –20~60? |
Storage Humidty | 10~95%@40 , non–condensing |
Shock | 10G peak acceleration(duration 11ms), in operating with HDD |
Vibration | 1G 5~500Hz, in operating with HDD |
Mounting | Panel mounting?Cut out: 403*251mm), VESA 75*75mm and 100*100mm |
Dimension | (W*H*D): 416*264*59mm |
Net Weight | 3.7KG |
EMC | CE,FCC Class A |
LCD | Type | 15.6'' TFT LED backlight |
Resolution | 1920*1080@60Hz |
Color | 16.2M |
Pixel Pitch(mm) | 0.17925 *0.17925(mm) |
Brightness(cd/m2) | 350 |
Viewing Angle | 85°(left), 85°(right), 85°(up),85°(down) |
Backlight Lifetime | 15000 Hours |
Touch | Type | Projected capacitive touch |
Resolution | 1920*1080 |
Light Transmittance | ?85% |
Interface | EETI Industrial grade |
Consumption | +5V @300mA |
OS | Windows/Linux |
Click Lifetime | 3 billion times |
