| Key Features - Aluminum die–casting chassis, fanless design
- 12.1'' LED TFT LCD, capacitive/resistive touch
- Intel® Skylake–U/Kabylake-U CPU
- 1*DDR4 2133 SODIMM, Max 16GB
- 1*Mini PCIe(PCIe+USB)
- 2*COM, 2*LAN, 4*USB3.0,1*USB2.0?1*Lineout
- 2.5”HDD Bay,1*mSATA
- ATX button&remote button
- DC 9~36V powerinput
Datasheet |

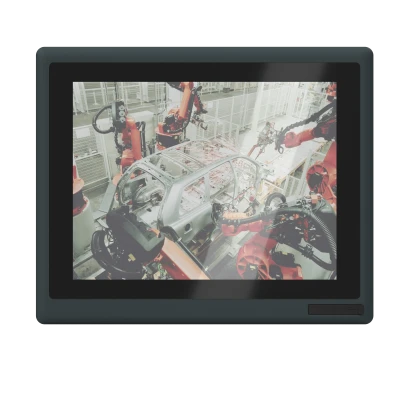

ALAD-K1220T | Industrial Tablet PC
12.1’’ TFT LCD Capacitive/Resistive Touch, Intel® Skylake-U CPU 2*LAN 4*USB3.0
ALAD–K1220T-G is an intelligent, fanless embedded panel, the system powered by Intel® SkylakeU/Kabylake-U Celeron and Core I3/I5/I7 CPU. Supports12.1 inch 1024*768@60HzTFT LCD. It offers multiple interfaces, 1*2.5” easy–pluggable SATA bay and
1*mSATA for storage, 1*MiniPCIe socket (PCIex1+USB signal) for expansion.DC 9~36V wide power input, be fit for use in MES and machines HMI.
Specification
System | CPU | Gen.6th Intel® Skylake-U Celeron 3855U; Core I3-6100U; I5-6200U; I7-6500U CPU Gen. 7th Intel® Kabylake-U Celeron 3865U; Core I3-7100U; I5-7200U; I7-7500U CPU |
Chipset | Intel® SOC |
System Wemory | 1*DDR4 2133 MHz SODIMM, Max 16GB |
BIOS | Insyde SPI 64Mbit flash |
Storage | 1*2.5'' SATA HDD bay, support SATA3.0 6Gbps HDD/SSD, 1*mSATA |
Display | 12.1'' LED backlight TFT LCD and HDWI(4K resolution) , dual display, Intel® HD graphics 510/520 |
Touch | 5 wire resistive touch optional projected capacitive touch, USB control |
Expansion | 1*Mini PCIe(PCIe&USB signal) |
Audio | Realtek ALC662VD controller, Support 5.1 channel, 2*3W Speaker |
Real I/O | 2*COM: 2*RS232/422/485, DB9 1*HDMI,1*Line out 4*USB3.0 Type A 2*RJ45 |
Front I/O | 1*USB2.0 Type A |
LAN | 2*Intel I210AT PCIe Gig. Ethernet, 10/100/1000Mbps |
Control SW/LED | 1*Cmos, 1*AT/ATX, Power button, 2–pin connecter with power switch signal,HDD LED |
Power Supply | DC to DC: 9~36V input, consumption: TDP 12V/2.75A(Intel® I5–6200U CPU, 4GB DDR4) |
OS | Windows 7, Windows 8.1,Windows 10,Linux |
Mechanical & Environmental | Construction | Aluminum die–casting front bezel , fin–shaped radiator shell |
Operating Temperature | 0~50? –HDD( –10~55? –SSD), with airflow |
Storage Temperature | –20~60? |
Storage Humidty | 10~95%@40 , non–condensing |
Shock | 10g peak acceleration(duration 11ms), in operating with HDD |
Vibration | 1g 5~500Hz, in operating with HDD |
Mounting | Panel mounting, VESA 100*100, Rack mounting |
Dimension | (W*H*D):315*259*51mm; mounting cut out(W*H): 303*247mm |
Net Weight | 2.8kg |
EMC | CE,FCC Class A |
LCD | Type | 12.1'TFT LED |
Resolution | 1024*768 |
Color | 16.2M |
Pixel Pitch(mm) | 0.240*0.240(mm) |
Brightness(cd/m2) | 500 |
Viewing Angle | 80°(left), 80°(right), 70°(up),70°(down) |
Operating Temperature | -30~70? |
Backlight Lifetime | 50000 hours |
Touch | Type | 5 wire resistive touch | Projected capacitive touch |
Resolution | gapless | gapless |
Light Transmittance | 83% | 90% |
Interface | USB | USB |
Consumption | +5V @200mA | +5V @300mA |
OS | Windows/Linux | Windows/Linux |
Click Lifetime | 35 million times | 3000 million times |
