| Key Features - Aluminum die-casting chassis, Fanless design
- 10.1’LED TFT LCD, Capacitive/Resistive touch
- ARM Cortex-A17 CPU,the main frequency is up to 1.8GHz,memory is 2GB, storage is 8GB
- 1*LAN, 1*WIFI,1*USB Type C OTG, 2*USB2.0
- VGA/HDMI dual display
- 1*Audio, 2* speaker
- DC 12V Power input
Datasheet |

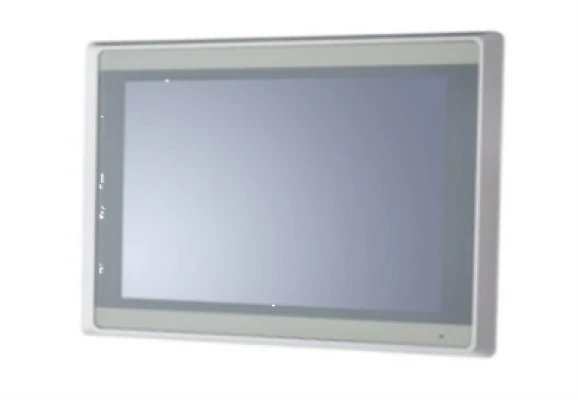

ALAD-S1041T(P) | Industrial Panel Computer
10.1''TFT LCD Capacitive/Resistive Touch, Cortex-A17 CPU, 1*LAN, 1*USB Type C, 2*USB2.0, DC IN 12V?Front pannel IP65
The ALAD-S1041T(P) is an intelligent fanless embedded tablet powered by the ARM Cortex-A17 CPU family. Using 10. 1 inch 1280*800 high resolution, high brightness TFT LCD support full plane 5-wire resistance touch screen, optional surface projection multi-touch capacitive screen,DC 12V DC input, widely used in CNC machinery, logistics warehousing management and other fields.
Specification
System | CPU | Cortex-A17 CPU, 1.8GHz, quad-core, quad-thread, 2M cache, 28nm |
Chipset | ARM Cortex-A17 |
System Memory | Dual channel DRAM controller, 64 bits storage port, support DDR3L, LPDDR2, LPDDR3, support MLC NAND Flash, eMMC 4.51 |
GPU | Mali-T764 GPU, support AFBC(frame buffer compression), support OpenGL ES 1.1/2.0/3.1, OpenCL, DirectX9.3 embedded high performance 2D acceleration hardware |
Display | Support 4K 10bits H265/H264 video decoding; Support 1080P 100fps H.265/H.264 video coding; Support 8M ISP, support HDR; Video post processor: de-interleaving, de-noising, edge/detail/color optimization; Dual MIPI-DSI,eDP display interface, maximum resolution 3840*2160 |
Audio | optional support Realtek ALC662VD, support 5.1 sound channel, 2*2W speaker speaker inside, optional line out |
Front I/O | 1*USB Type C?,2*USB2.0,1*WIFI,1*Line out , 1*RJ45 LAN?1*HDMI,1*VGA |
LAN | 1*Intel I211-AT PCIe Gigabit Ethernet, 10/100/1000M self-adaption |
Control&LED | 1* power switch, 1*2pin terminal switch signal, 1*Menu button, 1*Left button, 1*Right button, 1*Audio button |
Power supply | DC IN 12V, With short circuit, over voltage and over current protection?4-pin M12 connector , Power consumption TDP: TBD |
OS | Android 7.1/9.0/10.0 |
Mechanical & Environmental | Construction | Aluminum die-casting front bezel and chassis, fin-shaped radiator shell |
Operating Temperature | -20~60? -HDD, -10~55? -SSD, with airflow |
Storage Temperature | -30~70? |
Storage Humidty | 10~90%@30?, non-condensing |
Shock | 10g peak acceleration(duration 11ms), in operating with HDD |
Vibration | 1g 5~500Hz, in operating with HDD |
Mounting | Panel mounting, VESA 75*75mm |
Dimension | (W*H*D):283.2*186.9*50.5mm |
Net Weight | 2.0KG |
EMC | CE, FCC Class A |
LCD | Type | 10.1''TFT LED Backlight |
Resolution | 1280*800 |
Color | 16.2M colors |
Pixel Pitch(mm) | 0.1695*0.1695 |
Brightness(cd/m2) | 400(S00x), 500(T00x) |
Viewing Angle | -85~85°(H), -85~85°(V) |
OperatingTemperature | -20~60? |
Backlight Lifetime | 30000 Hours(S00x), 50000Hours(T00x) |
Touch | Type | 5 wire resistive touch | 10 point capacitive screen |
Resolution | gapless | gapless |
Light Transmittance | 83% | 90% |
Interface | USB | USB |
Consumption | +5V @ 200mA | +5V @ 300mA |
OS | Android 7.1/9.0/10.0 | Android 7.1/9.0/10.0 |
Click Lifetime | 35 million times | 30 billion times |
