CA-114 Series

Features and Benefits  921.6 kbps maximum baudrate for fast data transmission  On-chip hardware and software flow control  IRQ settings, I/O settings, and serial interface are jumper and DIP switch selectable  Onboard Tx and Rx LED indicators for each port  Supports Windows CE 5.0/6.0 and Windows XP Embedded operating systems  Wide-temperature model available for -40 to 85°C environments

Introduction

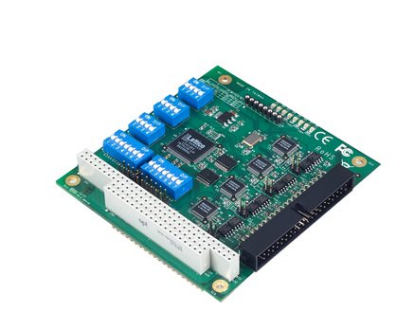

The CA-114 PC/104 modules are reliable, high-performance, multiport serial communication solutions that have 4 RS-232/422/485 ports, and can be used with PC/104 CPU boards that accept the PC/104 expansion interface. Optional DB9 and DB25 connection cables are available for connecting to serial devices, and versatile driver support makes the modules suitable for a wide range of applications.

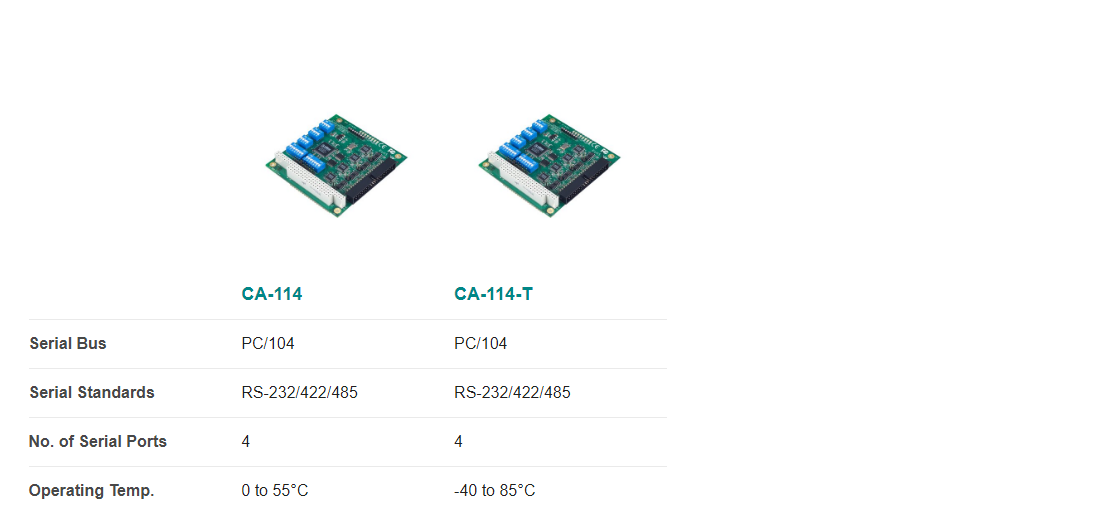

Models
