CB-602I Series

Features and Benefits  Supports CAN 2.0A and CAN 2.0B  Two independent CAN communication ports  CAN transfer rate up to 1 Mbps  2 kV electrical isolation  LED for transmit/receive status on each port  Optional 120-ohm terminal resistor for CAN bus network  DLL library and examples included  Windows drivers provided

Introduction

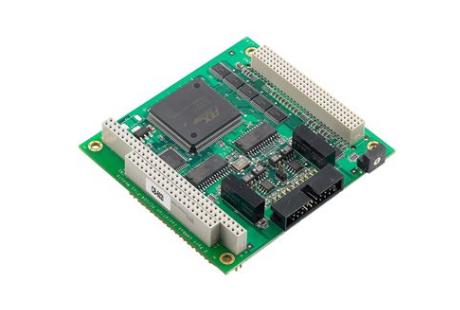

Moxa’s CB-602I CAN (Controller Area Network) interface boards support the PC/104-Plus interface. Optional DB9 and DB25 connection cables are available for connecting to CAN interface devices. The CB-602I CAN interface boards use the NXP SJA1000 and PCA82C251 transceiver, which provide bus arbitration and error detection. The -40 to 85°C wide operating temperature (CB-602I-T only) and 2 kV isolation make the boards suitable for use in harsh industrial environments.

Models
