CP-602E-I Series

Features and Benefits  Supports CAN 2.0A and CAN 2.0B  Two independent CAN communication ports  CAN transfer rate up to 1 Mbps  2 kV electrical isolation  LED for transmit/receive status on each port  Optional 120-ohm terminal resistor for CAN bus network  DLL library and examples included  Windows driver provided

Introduction

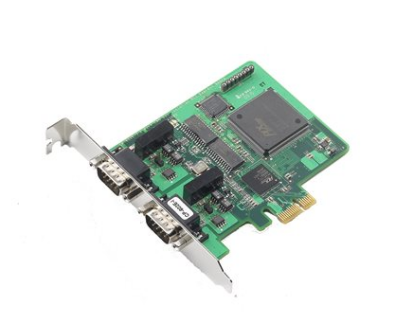

Moxa’sCP-602E-I CAN (Controller Area Network) interface board supports the PCI Express interface. As a standalone CAN controller, the CP-602E-I is a cost-effective solution that provides two active CAN controllers with a DB9 connector on the same board. The CP-602E-I CAN interface board uses the NXP SJA1000 and transceiver PCA82C251, which provide bus arbitration and error detection. The -40 to 85°C wide operating temperature (CP-602E-I-T only) and 2 kV isolation make the boards suitable for use in harsh industrial environments.

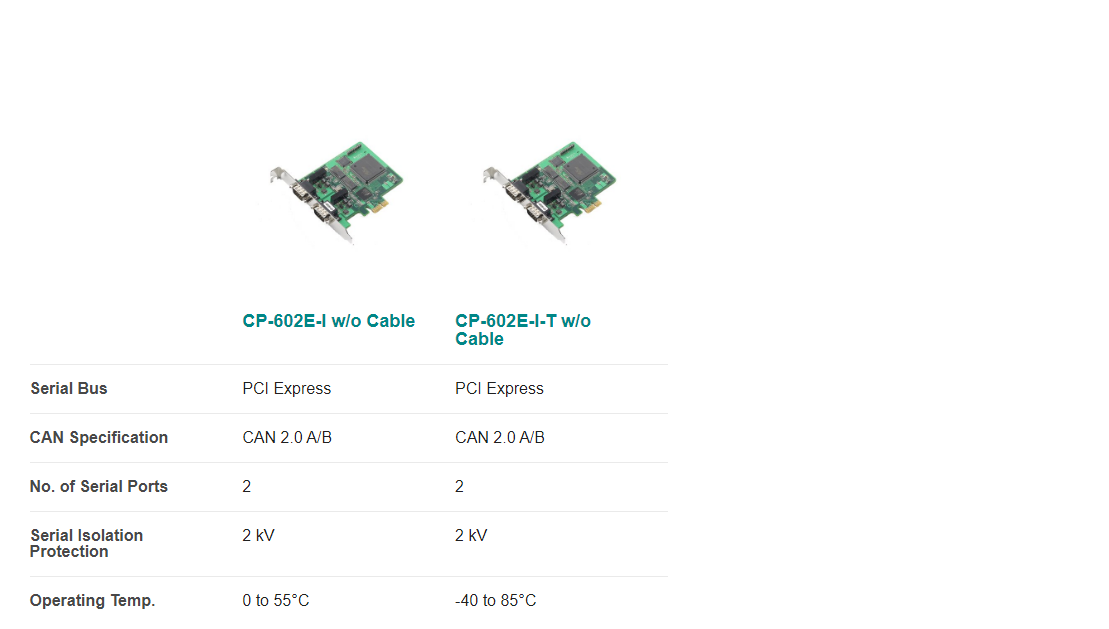

Models
