FRT-405N

FRT-405N

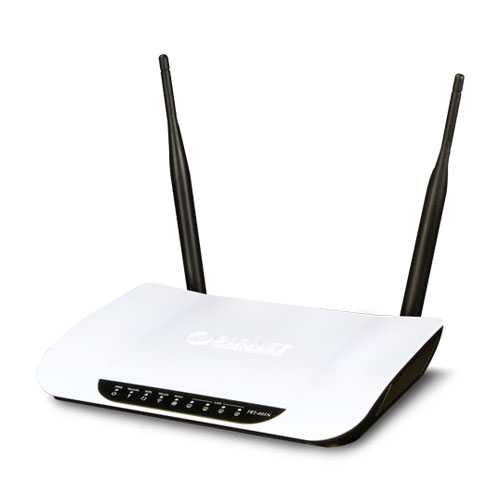

802.11n Wireless Internet Fiber Router (mini-GBIC, SFP) with 4-port switch

Overview

Delivering High-Demand Service Connectivity for ISP / Triple Play Devices
The FRT-405N is the ideal solution for FTTH (Fiber-to-the-home) applications. With built-in 100Base-FX fiber interface, the FRT-405N supports different optic types for WAN and the distance can be up to 15~60 km through the Fiber connection. It can handle multiple high-throughput services such as IPTV, on-line gaming, VoIP and Internet access, and keep the bandwidth usage smoothly. The FRT-405N also incorporates a 4-port 10/100Base-TX switching hub, which makes it easy to create or extend your LAN and prevent the attacks from Internet.

High-Speed 802.11n Wireless

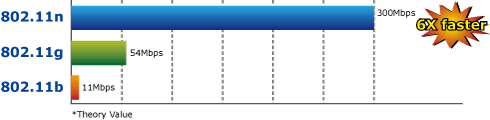

With built-in IEEE 802.11b/g and 802.11n wireless network capability, the FRT-405N allows any computer and wireless-enabled network device to connect to it without additional cabling. 802.11n wireless capability brings users the high speed wireless data transmission rate as high as 300Mbps. The radio coverage is also doubled to offer strong wireless connection even in widely spacious offices or houses.

Secure Wireless Access Control
To secure wireless communication, the FRT-405N supports the most up-to-date encryptions including WEP, WPA-PSK and WPA2-PSK. Moreover, the FRT-405N supports WPS configuration with PBC/PIN type for users to easily connect to a secured wireless network.

Providing Superior Function
The FRT-405N provides user-friendly management interface that can be managed easily through standard web browsers. For networking management features, the FRT-405N not only provides basic router functions such as DHCP server, virtual server, DMZ, QoS, and UPnP, but also provides full firewall functions including Network Address Translation (NAT), IP/Port/MAC Filtering and Content Filtering. Furthermore, the FRT-405N serves as an Internet firewall to protect your network from being accessed by unauthorized users.

Applications

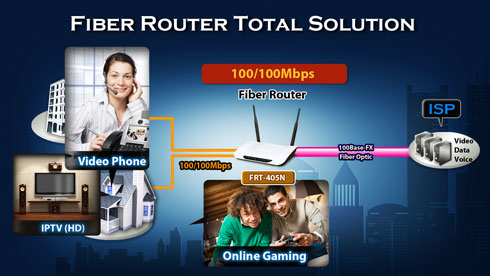

Internet Connection with Fiber Optic

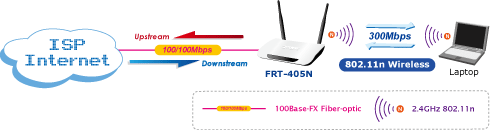

With the growing network services such as HDTV, IPTV, voice-over-IP (VoIP) and Multimedia broadband applications, the demand for bandwidth rises quickly. The current Broadband environment has not met its needs; the FTTH (fiber-to-the-home) would be the most promising NGN (Next Generation Networking) application to fulfill the demand.

Adopting the IEEE 802.11n technology, the FRT-405N provides better wireless signal, and higher data rate and performance than 802.11g compliant routers. Furthermore, the FRT-405N features the latest security and firewall functions to prevent unauthorized access or invasion. By just clicking the WPS button and setup step by step, you can easily get on the wireless network and enjoy high speed Internet transmission in your home or office.

Key Features

Internet Access Features

Shared Internet Access: All users on the LAN can access the Internet through the FRT-405N using only one single external IP address. The local (invalid) IP addresses are hidden from external sources. This process is called NAT (Network Address Translation).
IEEE 802.3u 100Base-FX standard: The FRT-405N provides long distance connection based on optical fiber transceiver which supports FTTH and IPTV applications.
Multiple WAN Connection: Upon the Internet (WAN port) connection, the FRT-405N supports Dynamic IP address (IP address is allocated upon connection), fixed IP address, PPPoE, PPTP and L2TP.
Bridge and Router Application: The FRT-405N supports two application modes: bridging and routing modes. Currently, the default mode is routing mode.?Note: routing mode and bridging mode cannot be used simultaneously.?

Advanced Internet Functions

Virtual Servers: This feature allows Internet users to access Internet servers on your LAN. The setup is quick and easy.
Firewall: The FRT-405N supports simple firewall with NAT technology.
Universal Plug and Play (UPnP): UPnP allows automatic discovery and configuration of the Broadband Router. UPnP is supported by Windows ME, XP, or later.
User Friendly Interface:The FRT-405N can be managed and controlled through Web UI.
DMZ Support:The FRT-405N can translate public IP addresses into private IP address to allow unlimited 2-way communication with the servers or individual users on the Internet. It provides the most flexibility to run programs smoothly for programs that might be restricted in NAT environment.
RIP1/2 Routing: It supports RIPv1/2 routing protocol for routing capability.
VPN Pass-through Support: PCs with VPN (Virtual Private Networking) software are transparently supported - no configuration is required.
802.1Q VLAN: The FRT-405N supports 802.1Q VLAN for IPTV applications.
PLANET DDNS/PLANET Easy DDNS: Connecting the devices anywhere on the Internet with a meaningful or easy-remembered name you gave.

LAN Features

4-Port Switch: The FRT-405N incorporates a 4-Port 10/100Base-TX switching hub, making it easy to create or extend your LAN.
DHCP Server Support: Dynamic Host Configuration Protocol provides a dynamic IP address to PCs and other devices upon request. The FRT-405N can act as a DHCP Server for devices on your local LAN.

Wireless Features

Supports IEEE 802.11b, g and 802.11n Wireless Stations: The 802.11n standard provides backward compatibility with the 802.11b and 802.11g standard, so 802.11b, 802.11g, and 802.11n can be used simultaneously. IEEE 802.11n wireless technology is capable of up to 300Mbps data rate.
Two External Antennas with MIMO Technology: The FRT-405N provides farther coverage, less dead spaces and higher throughput with 2T2R MIMO technology.
WPS Push Button Control: The FRT-405N supports WPS (Wi-Fi Protected Setup) for users to easily connect to wireless network without configuring the security.
WEP Support: WEP (Wired Equivalent Privacy) is included. Key sizes of 64 bit and 128 bit are supported.
WPA-PSK Support: WPA-PSK_TKIP and WAP-PSK_AES encryption are supported.
Wireless MAC Access Control:The Wireless Access Control feature can check the MAC address (hardware address) of wireless stations to ensure that only trusted wireless stations can access your LAN.

Ordering Information
FRT-405N	802.11n Wireless Internet Fiber Router (4 x RJ45, 1 x mini-GBIC, SFP)

Accessories
MFB-F20	SFP-Port 100Base-FX Transceiver (1310nm) – 20KM
MFB-F40	SFP-Port 100Base-FX Transceiver (1310nm) – 40KM
MFB-F60	SFP-Port 100Base-FX Transceiver (1310nm) – 60KM
MFB-FA20	SFP-Port 100Base-FX Transceiver (WDM, TX:1310nm) – 20KM
MFB-FB20	SFP-Port 100Base-FX Transceiver (WDM, TX:1550nm) – 20KM
MFB-FX	SFP-Port 100Base-FX Transceiver (1310nm) – 2KM
MFB-TFX	SFP-Port 100Base-FX Transceiver (1310nm) – 2KM ( -40~75 degrees C )

Datasheet

Date	Version	Description	Download
2013-10-16	1.0	FRT-405N
