POS-104UL Series

Features and Benefits  Over 800 kbps data throughput for top performance  Power options for each port: 5 V (output), 12 V (output), and RI (input)  Serial port power from bus or power supply  921.6 kbps maximum baudrate for fast data transmission  128-byte FIFO and on-chip H/W, S/W flow control  Compatible with 3.3/5 V PCI and PCI-X  Low-profile board, suitable for compact-sized PCs  Drivers provided for a broad selection of operating systems, including Windows, Linux, and UNIX  Wide-temperature model available for -40 to 85°C environments

Introduction

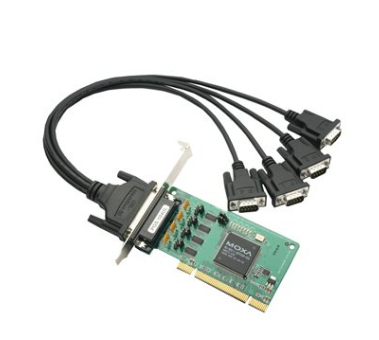

The POS-104UL is a smart, 4-port Universal PCI serial board designed for POS and ATM applications and for use by industrial automation system manufacturers and system integrators. The POS-104UL is compatible with all major operating systems. In addition, each of the 4 RS-232 serial ports supports data rates up to 921.6 kbps and provides full modem control signals to ensure compatibility with a wide range of serial peripherals. The POS-104UL supplies 5 or 12 volts of power to each serial port, and it works with both 3.3 V and 5 V PCI buses, making it suitable for installation in most PC servers.

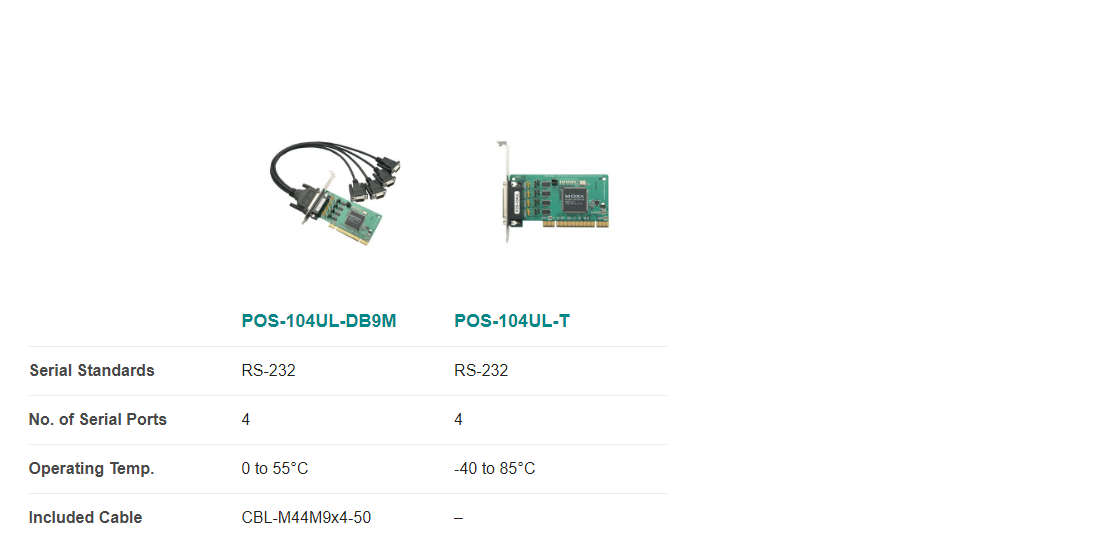

Models
