| Key Features - Intel® Baytrail Celeron J1900 2.0-2.42GCPU
- 1-Ch DDR3L 1333MHZ SODIMM, Up to8GB
- SUS304 grade stainless steel enclosure
- 3.0mm 5052 aluminum rear cover
- Full Flat bezel design, fanless
- Totally IP65/IP66(except for IO interface )
- Support for standard VESA 100*100 mounting
- 15” LED TFT LCD, Resistive/Capacitive touch
- 1*HDMI, 1*VGA,2*GbE LAN,2*COM, 1*USB3.0, 3*USB2.0
- 1*Opt. ANT, support4G LTE/WiFi/BT4.0
- 1*MiniPCIe(PCIe+USB,w/SIM)
- 1*Simple-swap2.5”SATA bay , 1*mSATA
- DC 9~36Vpower input
Datasheet |

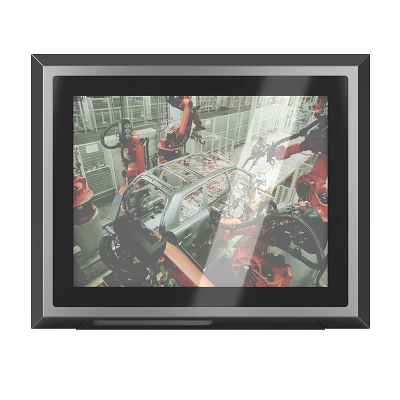

WPPC-H1580T | Industrial Waterproof Panel PC
15”TFT LCD, Resistive /Capacitive touch , Intel ®Celeron J1900 CPU, 2*GbE LAN, 2*COM,1*USB3.0, 3*USB2.0, 1*HDMI, 1*VGA, SUS304 &Fanless design
WPPC-H1580T is a rugged, super-reliable, fanless embedded waterproof panel PC. The front panel is made of SUS304 stainless steel. The back cover is made of a 3.0mm 5052 aluminum alloy, which can meet both CPU thermal dissipation and VESA mounting. It is powered by Intel® Celeron J1900 CPU,1-Ch DDR3L 1333 MHz SODIMM, and up to 8GB. Supports 15-inch 1280*1024@60Hz TFT LCD, Resistive/Capacitive touch. This PC adopts a full flat bezel design. In addition to the IO interface, the waterproof grade of this PC can reach IP65/IP66. It has super waterproof, solid and reliable, high performance, multi-IO, multi-extension, and has a wide range of applications. Suitable for wet, cold and harsh environments.
Specification
System | CPU | Intel® Baytrail Celeron J1900 2.0-2.42G CPU |
Chipset | Intel SoC |
System Memory | 1-Ch DDR3L, 1333MHz SODIMM MAX 8GB |
BIOS | AMI UEFI BIOS |
Storage | 1*Simple-swap 2.5” SATA bay;1*mSATA(full size), support AHCI |
Display | Gen.7 Intel® HD Graphics 15”LED TFT LCD and HDMI, VGA three display, VGA Max resolution?1920*1200@60Hz; HDMI Max resolution?1920*1080@60Hz Support OpenGL 3.2, DirectX 11, OpenCL 1.2, MPGE2/H.264 |
Touch | Resistive/Capacitive touch |
Expansion | 1*Mini PCIe(full size) with PCIe X1+USB,with SIM slot 1*Full size mSATA with USB2.0 |
Rear I/O | 2*RJ45 GbE LAN?with LED); 2* RS232/422/485?DB9? 1*USB3.0 Type A; 3*USB2.0 Type A 1*HDMI; 1*VGA; 1*Opt. ANT |
Audio | Realtek ALC662VD controller, Support 5.1 channel |
LAN | 2*Intel I211AT PCIe Gig. Ethernet, 10/100/1000Mbps |
LED | 1*Power LED; 1*HDD LED; 3*CPU Temp.LED(Red is warning, Yellow is high, Green is normal) |
Control SW | 1*Power button, 1*AT/ATX Select dip |
Power Supply | DC 9~36V, D-Jack w/ M8 connector, Comsuption: TDP 12V/ 1.62A |
Watchdog Timer | Watchdog timeout programmable via software 1 to 255 second |
OS Support | Windows 7, Windows 8.1, Windows 10, Linux Fedora Ubuntu |
Mechanical | Structure | The whole body: SUS304 Stainless steel Back cover: 3.0mm 5052 Aluminum IO cover: 1.0mm SECC/SGCC |
Mounting | Desktop VESA(100mm*100mm) mounting |
Dimension | (W*H*D):405.22mm*328.22mm*52.1mm |
Net weight | 5.8KG |
Environ- mental | Operating temperature | 0~60? |
Storage Temperature | -40°C~85°C |
Storage Humidity | 10~90%@40?, non-condensing |
Vibration | 1g 5~500Hz |
Shock | 10g peak acceleration(duration 11ms) |
Certification/EMC | CE/FCC Class B |
LCD | Type | 15.0''TFT LED |
Resolution | 1024*768 |
Color | 16.2M colors |
Pixel Pitch(mm) | 0.297*0.297 |
Brightness(cd/m2) | 350 |
Viewing Angle | 80 °(Left), 80 ° (Right), 80 ° (Up), 80 ° (Down) |
Operating Temperature | -20~70? |
Backlight Lifetime | 50000Hours |
Touch | Type | 5 wire resistive touch | Projected capacitive touch |
Resolution | gapless | gapless |
Light Transmittance | 83% | 90% |
Interface | USB | USB |
Consumption | +5V@200mA | +5V@300mA |
OS | Windows,Linux | Windows/Linux |
Click Lifetime | 35 million times | 3 billion times |
