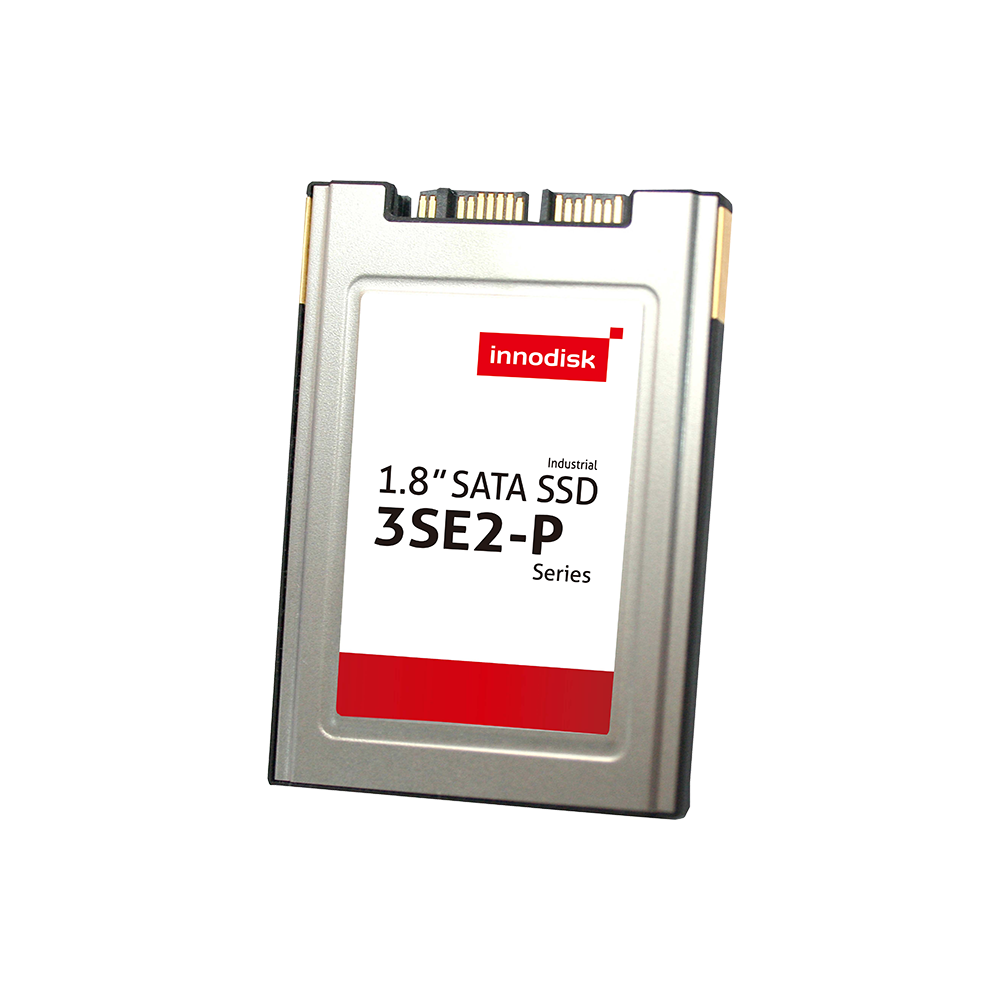

1.8" SATA SSD 3SE2-P

1.8" SSD

8GB ~ 256GB

Features

  • 1.8" SATA III solution for industrial field
  • Hardware-based AES 256-bit key
  • iData Guard for abnormal power failure
  • PLP (iCell) technology for data protection (optional)
  • Compliant with TCG Opal 2.0
  • iSMART disk health monitoring

BORN FOR SUPERIOR PERFORMANCE

Innodisk 1.8" SATA SSD 3SE2-P is SATA III 6.0Gb/s Flash based disk, which delivers excellent performance, especially in random data transfer rate, which offers reliability making it the ideal solution for a variety of applications, including embedded systems, industrial computing, and enterprise field.

Innodisk 1.8" SATA SSD 3SE2-P is designed with AES engine, which is built-in the controller. When controller receives the data package from host, AES engine encrypts the data package and save the encrypted data into NAND Flash. Thus, unauthorized personal has no access to decrypt the data in NAND Flash. Innodisk 1.8'' SATA SSD 3SE2-P supports several standard features, including TRIM, NCQ, and S.M.A.R.T and compliant with TCG Opal 2.0 and IEEE 1667.


SPECIFICATIONS

Model Name

1.8" SATA SSD 3SE2-P

Flash Type

SLC

Interface

SATA III 6.0 Gb/s

Form Factor

1.8" SSD

Capacity

8GB ~ 256GB

Sequential R / W (MB/sec, max.)

560 / 360

P/E Cycle

60,000

TBW (Max.)

12,000

Storage Temperature

-55°C ~ 95°C

Max. Power Consumption

2.4W

Max. Channels

4

External DRAM Buffer

Y

Feature

PLP (iCell), AES, TCG Opal 2.0, S.M.A.R.T.

Series

Mission Critical SSD

Dimension (W x L x H/mm)

54.0 x 78.5 x 5.0

Vibration

20G@[7 ~ 2000Hz]

Shock

1500G@0.5ms

MTBF

>3 million hours

Warranty

5 Years


ORDER INFORMATION

Operating Temperature

Standard Grade

(0°C ~ 70°C)

Industrial Grade

(-40°C ~ 85°C)

8GB

DES18-08GD82SC*QB(P)

DES18-08GD82SW*QB(P)

16GB

DES18-16GD82SC*QB(P)

DES18-16GD82SW*QB(P)

32GB

DES18-32GD82SC*QB(P)

DES18-32GD82SW*QB(P)

64GB

DES18-64GD82SC*QB(P)

DES18-64GD82SW*QB(P)

128GB

DES18-A28D82SC*QB(P)

DES18-A28D82SW*QB(P)

256GB

DES18-B56D82SC*QB(P)

DES18-B56D82SW*QB(P)

(P) : PLP (iCell) (Optional)

*. A : 3.3V voltage version / B : 5V voltage version
