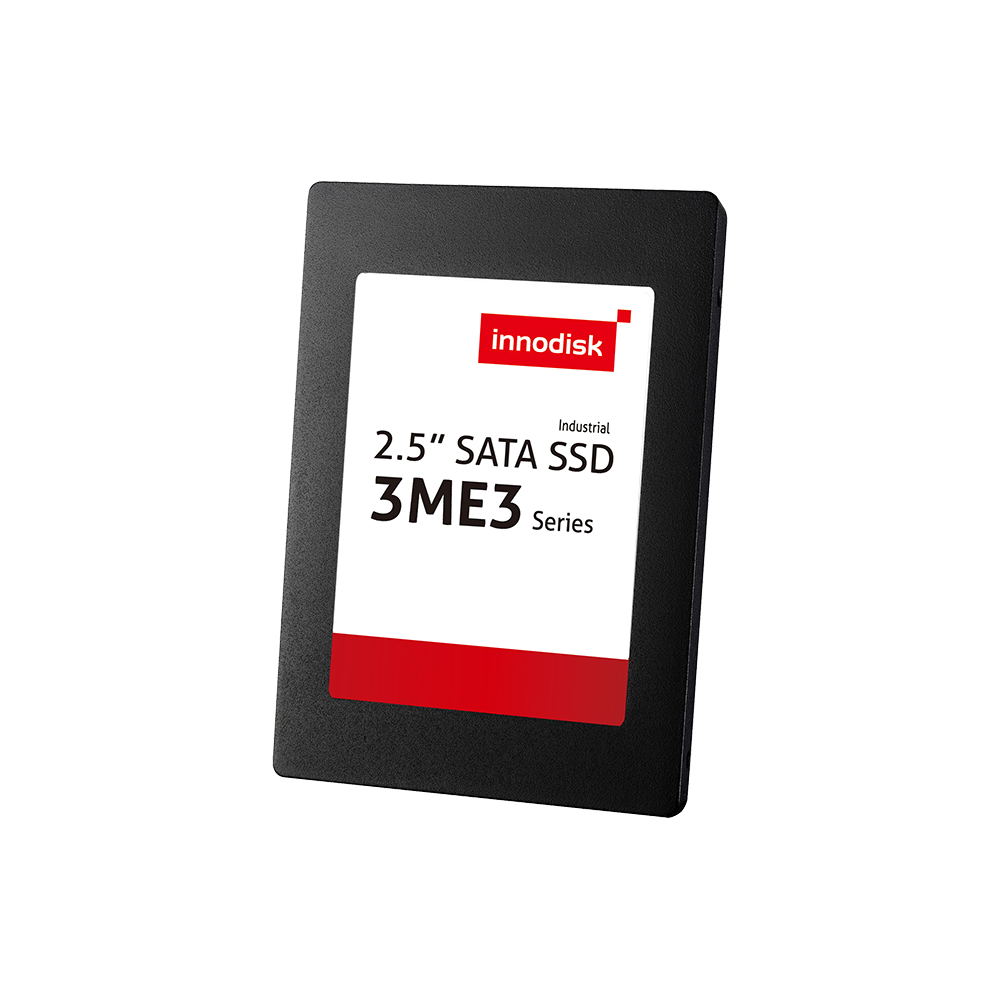

2.5” SATA SSD 3ME3

2.5" SSD

8GB ~ 512GB

Features

• 2.5” SATA III solution for industrial field
• iSMART disk health monitoring
• High IOPS to enhance boot up timing
• DRAM-less, no data loss concern
• iData Guard Protection
• Supports wide temperature from -40°C to 85°C

Model Name

2.5” SATA SSD 3ME3

Flash Type

MLC

Interface

SATA III 6.0 Gb/s

Form Factor

2.5" SSD

Capacity

8GB ~ 512GB

Sequential R / W (MB/sec, max.)

415 / 200

P/E Cycle

3,000

TBW (Max.)

1,344

Storage Temperature

-55°C ~ 95°C

Max. Power Consumption

2.1W

Max. Channels

4

External DRAM Buffer

N

Feature

S.M.A.R.T.

Dimension (W x L x H/mm)

69.85 x 100.1 x 7.0

Vibration

20G@[7 ~ 2000Hz]

Shock

1500G@0.5ms

MTBF

>3 million hours

Warranty

2 Years
