2.5” SATA SSD 3MR2-P

alvasta-tech.com / Industrial / Innodisk / Flash Storage / SATA-2.5" SSD / 2.5” SATA SSD 3MR2-P /

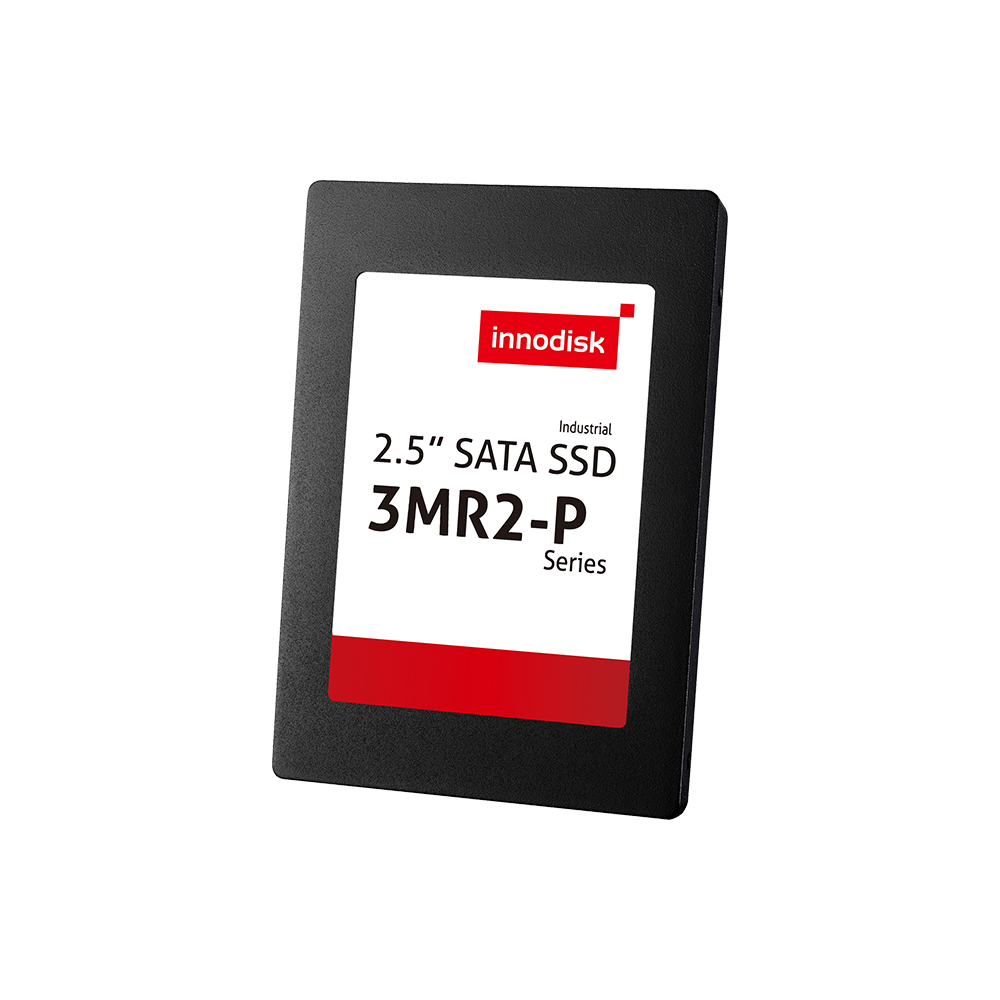

2.5” SATA SSD 3MR2-P

2.5" SSD

8GB ~ 2TB

Features

  • Compliant with MIL-STD-810-F/G
  • Data security (QEraser / SEraser / Destroy / Write Protect)
  • High random R/W performance
  • Intelligent error recovery system
  • Enhanced power cycling management
  • PLP (iCell) technology for data protection

BORN FOR SUPERIOR PERFORMANCE

Innodisk 2.5” SATA SSD 3MR2-P is a SATA III 6.0Gb/s Flash based disk, which delivers excellent performance and reliability. Especially, it comes with several data security functions, including Quick Erase, Security Erase, Destroy, and Write Protect. All the security functions can be triggered both by hardware and software approaches.

2.5” SATA SSD 3MR2-P is compliant with MIL-STD-810F/G standards. The SSD is equipped ruggedized hardware design and thus it can perform well in the harsh environment. 2.5” SATA SSD 3MR2-P is developed with Innodisk owned technical knowhow to ensure the data integrity and highest levels of reliability.


SPECIFICATIONS

Model Name

2.5” SATA SSD 3MR2-P

Flash Type

MLC

Interface

SATA III 6.0 Gb/s

Form Factor

2.5" SSD

Capacity

8GB ~ 2TB

Sequential R / W (MB/sec, max.)

520 / 450

P/E Cycle

3,000

TBW (Max.)

2,344

Storage Temperature

-55°C ~ 95°C

Max. Power Consumption

5.8W

Max. Channels

4

External DRAM Buffer

Y

Feature

PLP (iCell), AES, TCG Opal 2.0, H/W Write Protect, S.M.A.R.T.

Series

Mission Critical SSD

Dimension (W x L x H/mm)

69.85 x 100.0 x 9.5

Vibration

20G@[7 ~ 2000Hz]

Shock

1500G@0.5ms

MTBF

>3 million hours

Warranty

3 Years


ORDER INFORMATION

Operating Temperature

Standard Grade

(0°C ~ 70°C)

Industrial Grade

(-40°C ~ 85°C)

8GB

DRS25-08GD81BC1SCP

DRS25-08GD81BW1SCP

16GB

DRS25-16GD81BC1SCP

DRS25-16GD81BW1SCP

32GB

DRS25-32GD81BC1DCP

DRS25-32GD81BC1DWP

64GB

DRS25-64GD81BC1QCP

DRS25-64GD81BW1QCP

128GB

DRS25-A28D81BC1QCP

DRS25-A28D81BW1QCP

256GB

DRS25-B56D81BC1QCP

DRS25-B56D81BW1QCP

512GB

DRS25-C12D81BC1QCP

DRS25-C12D81BW1QCP

1TB

DRS25-01TD81BCAQCP

DRS25-01TD81BWAQCP

2TB

DRS25-02TD81BCAQC

DRS25-02TD81BWAQC


For more information, please contact our support.
