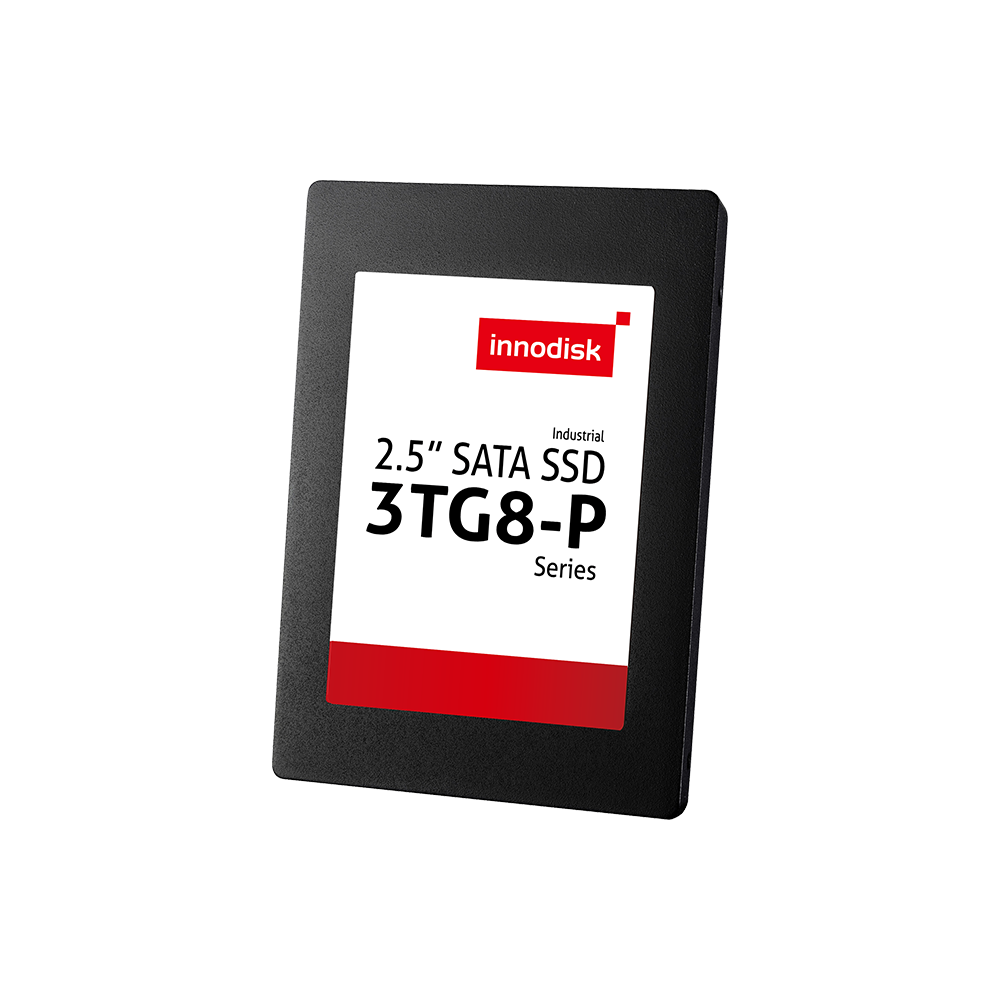

2.5” SATA SSD 3TG8-P

2.5" SSD

1TB ~ 8TB

Features

2.5” SATA III solution for industrial field
High IOPS
iSMART disk health monitoring
End-to-End Data Path Protection
iData Guard for abnormal power failure
PLP (iCell) technology for data protection
Supports wide temperature from -40°C to 85°C

BORN FOR SUPERIOR PERFORMANCE

Innodisk 2.5” SATA SSD 3TG8-P is SATA III 6Gb/s solid state disk, which delivers excellent performance, especially in random data transfer rate, and which offers reliability making it the ideal solution for a variety of applications, including embedded system, industrial computing, and enterprise field.

2.5” SATA SSD 3TG8-P not only performs unmatched performance, but also designed with Innodisk owned technical knowhow to ensure the data integrity and highest levels of reliability. Equipped with Error Correction Code (ECC) technology, it provides comprehensive End-to-End Data Path Protection (ETEP), ensuring secure data transmission between the host system and NAND Flash.

SPECIFICATIONS

Model Name	2.5” SATA SSD 3TG8-P
Flash Type	3D TLC
Interface	SATA III 6.0 Gb/s
Form Factor	2.5" SSD
Capacity	1TB ~ 8TB
Sequential R / W (MB/sec, max.)	560 / 520
P/E Cycle	3,000
TBW (Max.)	17,643
Storage Temperature	-40°C ~ 85°C
Max. Power Consumption	5.2W
Max. Channels	8
External DRAM Buffer	Y
Feature	PLP (iCell), AES, TCG Opal 2.0, S.M.A.R.T.
Dimension (W x L x H/mm)	69.8 x 100.0 x 7.0
Vibration	20G@[7 ~ 2000Hz]
Shock	1500G@0.5ms
MTBF	>3 million hours
Warranty	3 Years

ORDER INFORMATION

Operating Temperature	Standard Grade (0°C ~ 70°C)	Industrial Grade (-40°C ~ 85°C)
1TB	DGS25-01TDE1KCAEFP	DGS25-01TDE1KWAEFP
2TB	DGS25-02TDE1KCAEFP	DGS25-02TDE1KWAEFP
4TB	DGS25-04TDE1KCAEFP	DGS25-04TDE1KWAEFP
8TB	DGS25-08TDE1KCAEFP	DGS25-08TDE1KWAEFP

For TCG OPAL function, the PN Code 10th ~ 12th will be DE2.

For more information, please contact our support.
