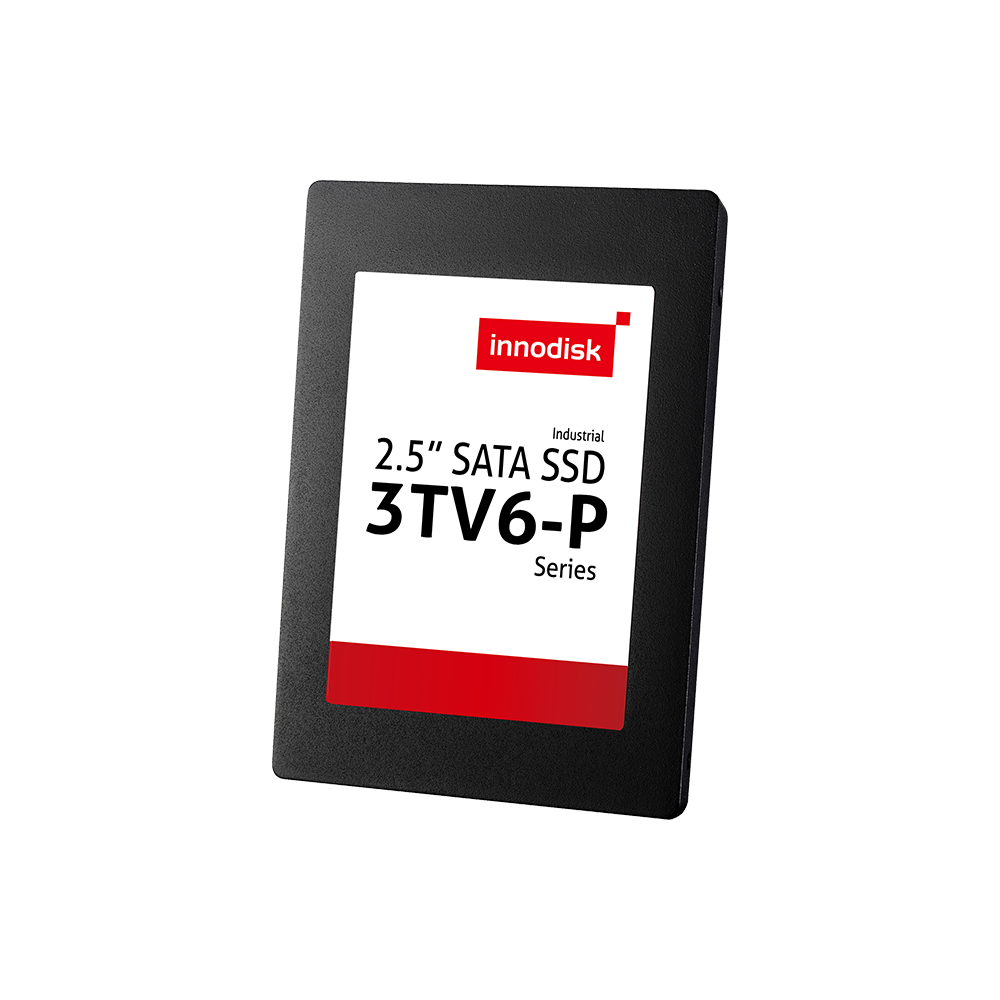

2.5” SATA SSD 3TV6-P

alvasta-tech.com / Industrial / Innodisk / Flash Storage / SATA-2.5" SSD / 2.5” SATA SSD 3TV6-P /

2.5” SATA SSD 3TV6-P

2.5" SSD

128GB ~ 4TB

Features

  • InnoREC solution for surveillance application
  • Exclusive RECLine for video recording
  • Ensures steady performance without any frame-loss
  • Built-in thermal sensor
  • Supports S.M.A.R.T, TRIM, NCQ and iData Guard

Download Datasheet

BORN FOR SUPERIOR PERFORMANCE

Innodisk 2.5” SATA SSD 3TV6-P is the newest member of InnoREC product line, which adopts industrial Kioxia 3D TLC NAND. InnoREC is innodisk’s proprietary Flash feature set designed specifically for surveillance applications. Through the smart integration of firmware and hardware, the speed and performance required by modern surveillance solutions are fully met.

2.5” SATA SSD 3TV6-P products provide high capacity Flash memory Solid State Drive (SSD) that electrically complies with Serial ATA (SATA) standard. It supports SATA III standard (6.0GHz) with high performance and supports several features, including RECLine, iData Guard, iCell, Quick Erase, Thermal sensor, passive cooling and S.M.A.R.T.


SPECIFICATIONS

Model Name

2.5” SATA SSD 3TV6-P

Flash Type

3D TLC

Interface

SATA III 6.0 Gb/s

Form Factor

2.5" SSD

Capacity

128GB ~ 4TB

Sequential R / W (MB/sec, max.)

510 / 460

P/E Cycle

3,000

TBW (Max.)

9,231

Storage Temperature

-55°C ~ 95°C

Max. Power Consumption

3.5W

Max. Channels

4

External DRAM Buffer

Y

Feature

PLP (iCell), AES, TCG Opal 2.0, S.M.A.R.T.

Series

Surveillance SSD

Dimension (W x L x H/mm)

69.85 x 100.0 x 6.9

Vibration

20G@[7 ~ 2000Hz]

Shock

1500G@0.5ms

MTBF

>3 million hours

Warranty

3 Years


ORDER INFORMATION

Operating Temperature

Standard Grade

(0°C ~ 70°C)

Industrial Grade

(-40°C ~ 85°C)

128GB

DVS25-A28M72KCASFP

DVS25-A28M72KWASFP

256GB

DVS25-B56M72KCADFP

DVS25-B56M72KWADFP

512GB

DVS25-C12M72KCAQFP

DVS25-C12M72KWAQFP

1TB

DVS25-01TM72KC*QFP

DVS25-01TM72KWAQFP

2TB

DVS25-02TM72KC*QFP

DVS25-02TM72KWAQFP

4TB

DVS25-04TM72KCAQFP

DVS25-04TM72KWAQFP


For more information, please contact our support.


Need support, click here
