CFexpress 3TE8

CFexpress

128GB ~ 1TB

Features

PCIe Gen 3 x2, NVMe SSD
Kioxia 3D TLC NAND
Available in standard and wide temperature ranges
Hybrid write mode enabled with SLC cache
Supports Dynamic Thermal Throttling
Includes iData Guard and iPower Guard features
TCG Opal functionality supported

Download Datasheet

BORN FOR SUPERIOR PERFORMANCE

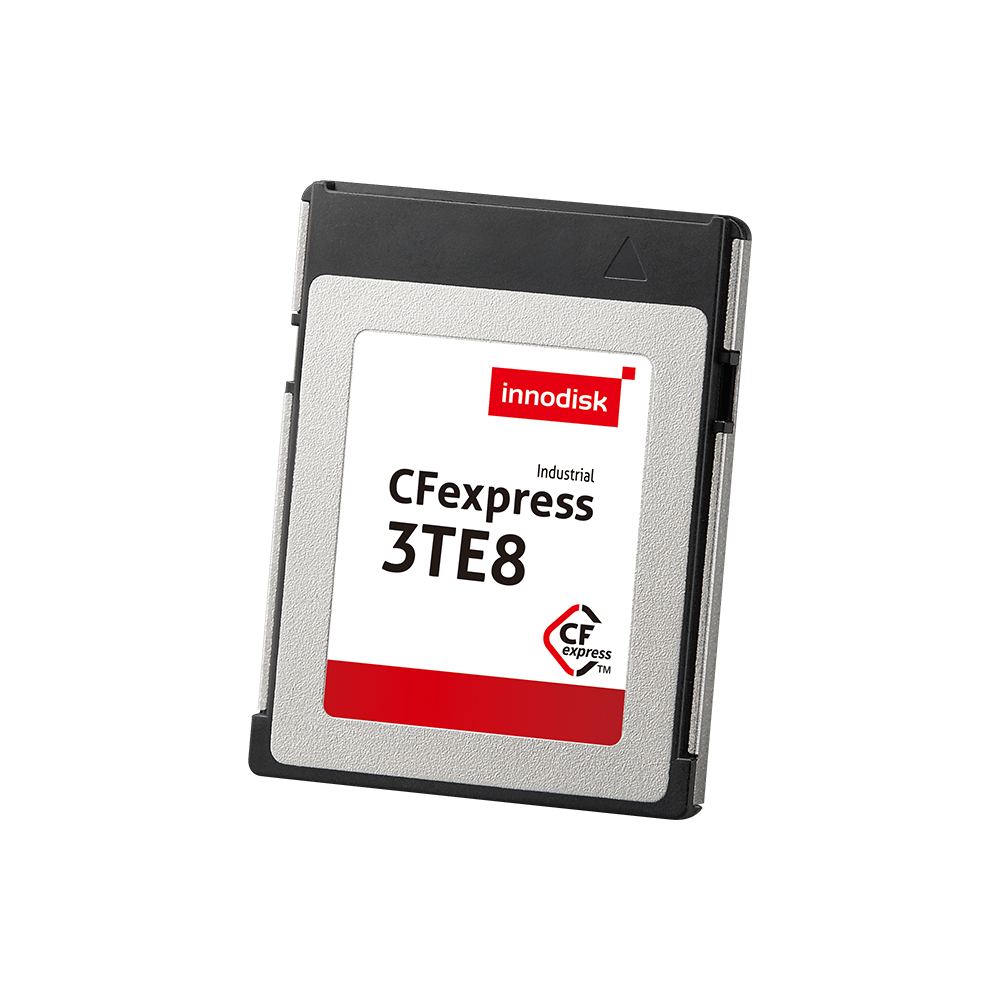

Innodisk CFexpress 3TE8 is a compact, removable memory card built on the CFexpress Version 1.0 Type B specification. It features a PCIe Gen 3 x2 interface and 3D TLC NAND Flash while adhering to the NVMe 1.4 protocol, delivering exceptional performance and high reliability. Equipped with Error Correction Code (ECC) technology, the CFexpress 3TE8 provides comprehensive End-to-End Data Path Protection (ETEP), ensuring secure data transmission between the host system and NAND Flash.

SPECIFICATIONS

Model Name	CFexpress 3TE8
Flash Type	3D TLC
Interface	PCIe Gen 3 x2
Form Factor	CFexpress 1.0 Type B
Capacity	128GB ~ 1TB
Sequential R / W (MB/sec, max.)	1,750 / 1,600
P/E Cycle	3,000
TBW (Max.)	803
Storage Temperature	-40°C ~ 85°C
Max. Power Consumption	2.8W
Max. Channels	4
External DRAM Buffer	N
Features	AES, TCG Opal 2.0, H/W Write Protect, S.M.A.R.T.
Dimension (W x L x H/mm)	29.6 x 38.5 x 3.8
Vibration	20G@[7 ~ 2000Hz]
Shock	1500G@0.5ms
MTBF	>3 million hours
Warranty	3 Years

ORDER INFORMATION

Operating Temperature	Standard Grade (0°C ~ 70°C)	Industrial Grade (-40°C ~ 85°C)
128GB	DECFX-A28DS2KCASF(W)	DECFX-A28DS2KWASF(W)
256GB	DECFX-B56DS2KCADF(W)	DECFX-B56DS2KWADF(W)
512GB	DECFX-C12DS2KCADF(W)	DECFX-C12DS2KWADF(W)
1TB	DECFX-01TDS2KCADF(W)	DECFX-01TDS2KWADF(W)

W: Write Protect
