CFexpress 4IE3

CFexpress

Ultra iSLC Solution

Features

  • Up to 100K P/E cycle, extending the lifespan by 33x
  • Utilizes Ultra iSLC Technology
  • Equipped with 112-layer 3D TLC NAND Flash
  • Supports temperature -40°C to 85°C
  • Supports dynamic thermal throttling for consistent SSD stability
  • 5 years warranty and longevity commitment

Download Datasheet

BORN FOR SUPERIOR PERFORMANCE

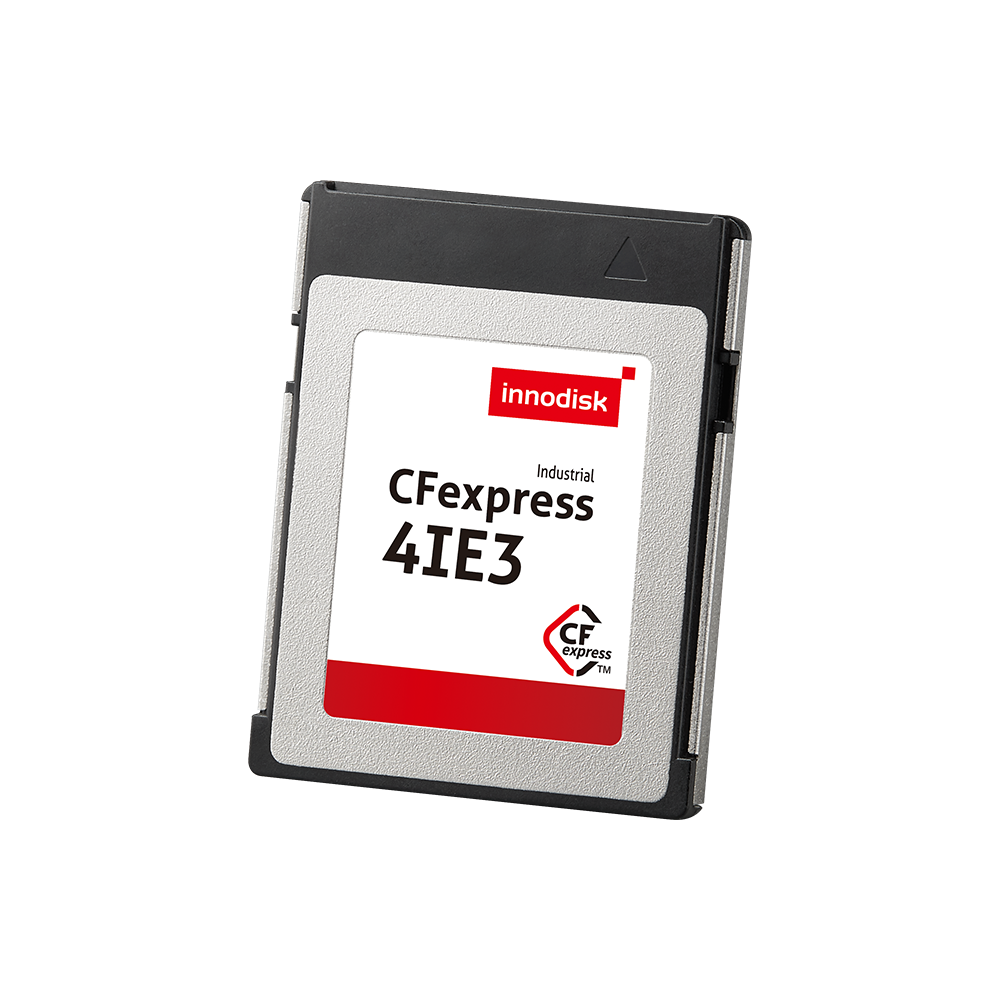

Innodisk CFexpress 4IE3 is a compact, removable memory card built on the CFexpress Version 1.0 Type B specification. It features a PCIe Gen 3 x2 interface and 3D TLC NAND Flash while adhering to the NVMe 1.4 protocol, delivering exceptional performance and high reliability. Equipped with Error Correction Code (ECC) technology, the CFexpress 4IE3 provides comprehensive End-to-End Data Path Protection (ETEP), ensuring secure data transmission between the host system and NAND Flash.


SPECIFICATIONS

Model Name

CFexpress 4IE3

Flash Type

iSLC (3D TLC)

Interface

PCIe Gen 3 x2

Form Factor

CFexpress 1.0 Type B

Capacity

40GB ~ 320GB

Sequential R / W (MB/sec, max.)

1,750 / 1,600

P/E Cycle

100,000

TBW (Max.)

36,803

Storage Temperature

-40°C ~ 85°C

Max. Power Consumption

2.9W

Max. Channels

4

External DRAM Buffer

N

Features

AES, TCG Opal 2.0, H/W Write Protect, S.M.A.R.T.

Dimension (W x L x H/mm)

29.6 x 38.5 x 3.8

Vibration

20G@[7 ~ 2000Hz]

Shock

1500G@0.5ms

MTBF

>3 million hours

Warranty

5 Years


ORDER INFORMATION

Operating Temperature

Standard Grade

(0°C ~ 70°C)

Industrial Grade

(-40°C ~ 85°C)

40GB

DHCFX-40GDH1KCADL(W)

DHCFX-40GDH1KWADL(W)

80GB

DHCFX-80GDH1KCAQL(W)

DHCFX-80GDH1KWAQL(W)

160GB

DHCFX-A60DH1KCAQL(W)

DHCFX-A60DH1KWAQL(W)

320GB

DHCFX-D2GDH1KCAQL(W)

DHCFX-D2GDH1KWAQL(W)

W : H/W Write Protect
For TCG Opal function, the PN Code 10th ~ 12th will be DH2.


For more information, please contact our support.
