CFexpress 4TE2

CFexpress

High Speed, Low Latency, Low Power

Features

Powered by PCIe Gen 3 x2 and NVMe 1.4, delivering fast and reliable performance
Supports dynamic thermal throttling for consistent SSD stability
Supports Write Protect to prevent unauthorized data modification

Download Datasheet

BORN FOR SUPERIOR PERFORMANCE

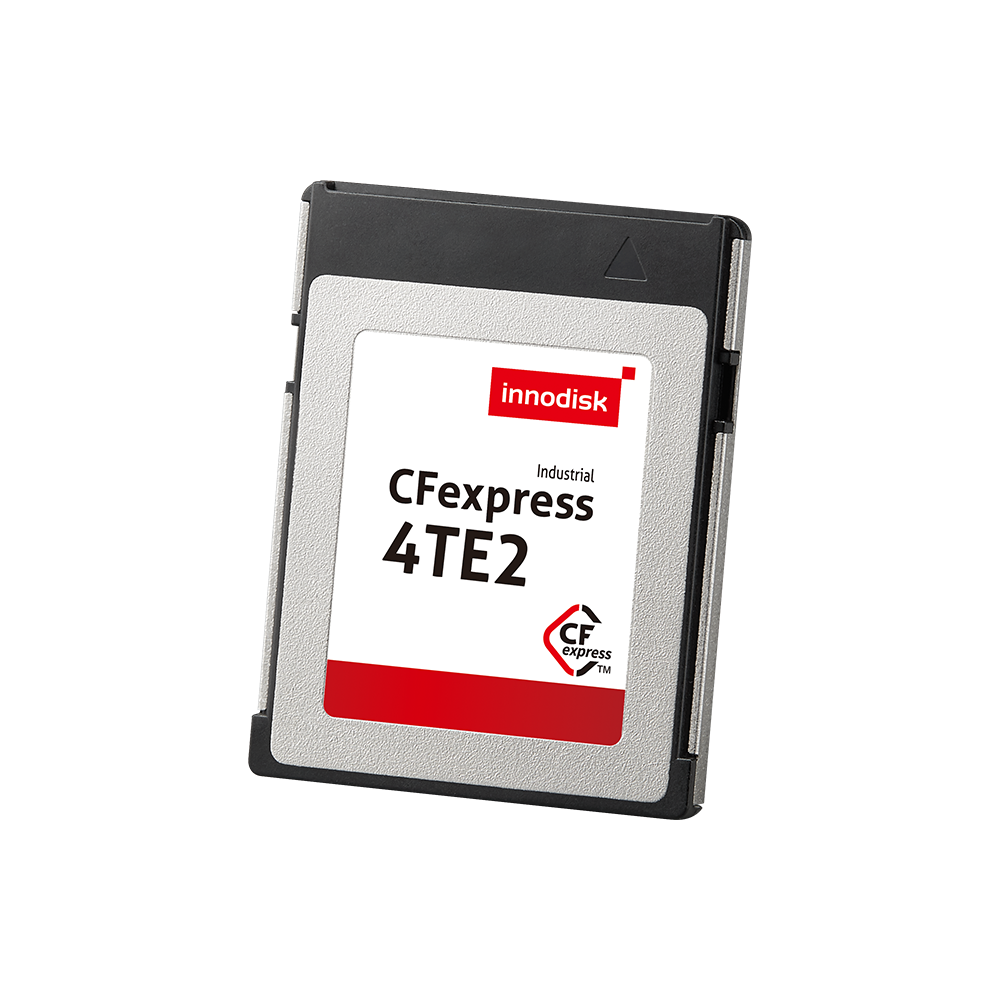

CFexpress 4TE2 is a compact, removable memory card built on the CFexpress Version 1.0 Type B specification. It features a PCIe Gen 3 x2 interface and 3D TLC NAND Flash while adhering to the NVMe 1.4 protocol, delivering exceptional performance and high reliability. Equipped with Error Correction Code (ECC) technology, the CFexpress 4TE2 provides comprehensive End-to-End Data Path Protection (ETEP), ensuring secure data transmission between the host system and NAND Flash.

SPECIFICATIONS

Model Name	CFexpress 4TE2
Flash Type	3D TLC
Interface	PCIe Gen 3 x2
Form Factor	CFexpress 1.0 Type B
Capacity	128GB ~ 1TB
Sequential R / W (MB/sec, max.)	1,750 / 1,650
P/E Cycle	3,000
TBW (Max.)	545
Storage Temperature	-40°C ~ 85°C
Max. Power Consumption	3.4W
Max. Channels	4
External DRAM Buffer	N
Features	AES, TCG Opal 2.0, H/W Write Protect, S.M.A.R.T.
Dimension (W x L x H/mm)	29.6 x 38.5 x 3.8
Vibration	20G@[7 ~ 2000Hz]
Shock	1500G@0.5ms
MTBF	>3 million hours
Warranty	3 Years

ORDER INFORMATION

Operating Temperature	Standard Grade (0°C ~ 70°C)
128GB	DECFX-A28DF1KCADF(W)
256GB	DECFX-B56DF1KCAQF(W)
512GB	DECFX-C12DF1KCAQF(W)
1TB	DECFX-01TDF1KCAQF(W)

W : H/W Write Protect
