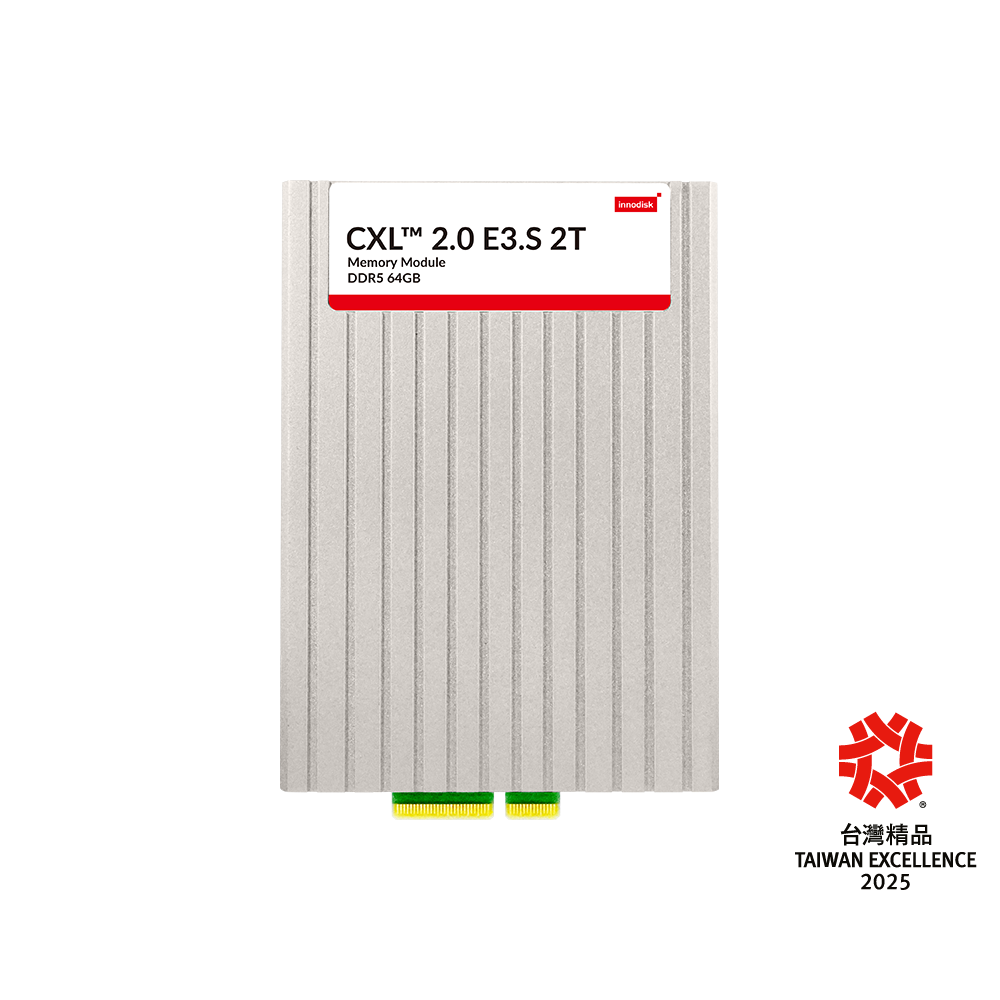

CXL Memory Module

CXL

The Future of Memory In AI Server

Features

Expanding memory without extra DIMM slots
Sharing memory resource via CXL.mem protocol meanwhile decrease latency and complexity
Data transferred with PCIe Gen5 32GB/s bandwidth
Fully tested and optimized for stability and performance
Uses original IC to meet strict industrial standards

BORN FOR SUPERIOR PERFORMANCE

The CXL Memory Module addresses the growing complexity of AI workloads by expanding server memory capacity and alleviating memory bottlenecks. It offers instant 64GB expansion per module with 32GB/s extra bandwidth, enables memory pooling for efficient resource sharing across servers, and utilizes optimized communication protocols to reduce latency.

Designed in the E3.S 2T form factor with PCIe Gen 5 x8 interface and CXL protocols, this solution from Innodisk provides cost-effective memory expansion for existing systems, supported by rigorous testing and comprehensive technical support.

SPECIFICATIONS

Model Name	CXL Memory Module
CXL Compliance	CXL 1.1 & CXL 2.0
CXL Protocol	Type 3 (CXL.mem & CXL.io)
Interface	PCIe Gen 5 x8
DRAM IC Generation	DDR5
Form Factor	E3.S 2T
Connector	EDSFF 2C (84 pin)
Density	64GB
Operating Temperature	0°C ~ 70°C

ORDER INFORMATION

P/N	Form Factor	Interface	CXL Compliance	Temp.	Description
MM111-5CGS1A1ACA00	E3.S 2T	PCIe Gen 5 x8	CXL 2.0	0°C ~ 70°C	CXL 64GB Memory Module

For more information, please contact our support.
