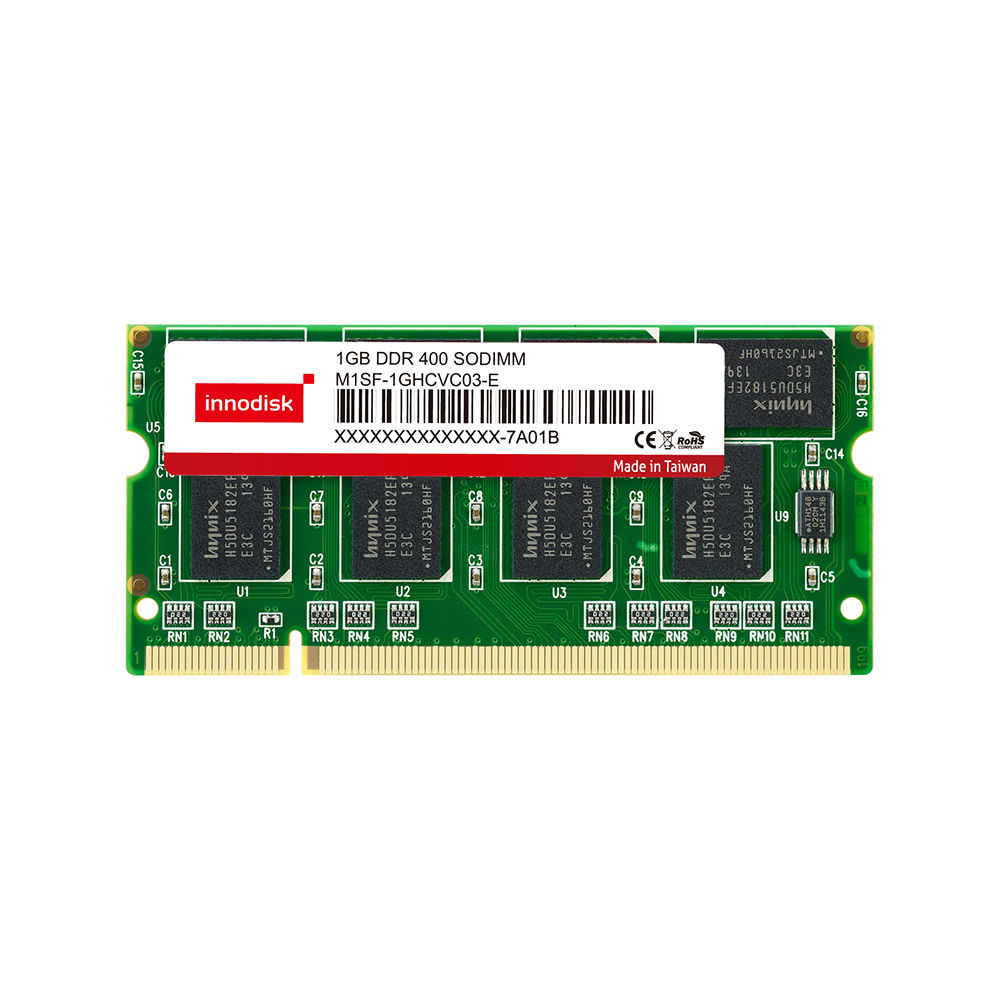

DDR SODIMM

DDR

Non-ECC Unbuffered Memory

Features

Small Outline Dual In-line Memory Module
Fully Tested and Optimized for Stability and Performance
Uses Original IC to Meet Strict Industrial Standards
JEDEC Standard 2.6V +/- 0.2V
Operating Environment : 0°C ~ 70°C
RoHS Compliance

BORN FOR SUPERIOR PERFORMANCE

DDR SODIMM is a compact memory module that provides lasting performance and is designed for the embedded, surveillance and automation markets. The modules include single bit error correction, are available in 256MB, 512MB, and 1GB capacities, and with data transfer rates of 333MT/s and 400MT/s.

SPECIFICATIONS

Model Name	DDR SODIMM
DDR Generation	DDR Memory
DIMM Type	SODIMM
Speed	333 MT/s, 400 MT/s
Density	256MB, 512MB, 1GB
Function	Non-ECC Unbuffered Memory
Pin Number	200pin
Bus Width	x64
Voltage	2.6V
PCB Height	1.25 Inches
Operating Temperature	0°C ~ 70°C

ORDER INFORMATION

P/N	IC Config.	Rank	Temp.	Description
M1SF-56MB3C03-J	32M x 16	1R x 16	0°C ~ 70°C	DDR 400 256MB SODIMM
M1SF-12MB3C03-J	32M x 8	2R x 16	0°C ~ 70°C	DDR 400 512MB SODIMM
M1SF-12MCSC03-J	64M x 8	1R x 8	0°C ~ 70°C	DDR 400 512MB SODIMM
M1SF-1GMCVC03-J	64M x 8 / BGA	2R x 8	0°C ~ 70°C	DDR 400 1GB SODIMM

For more information, please contact our support.
