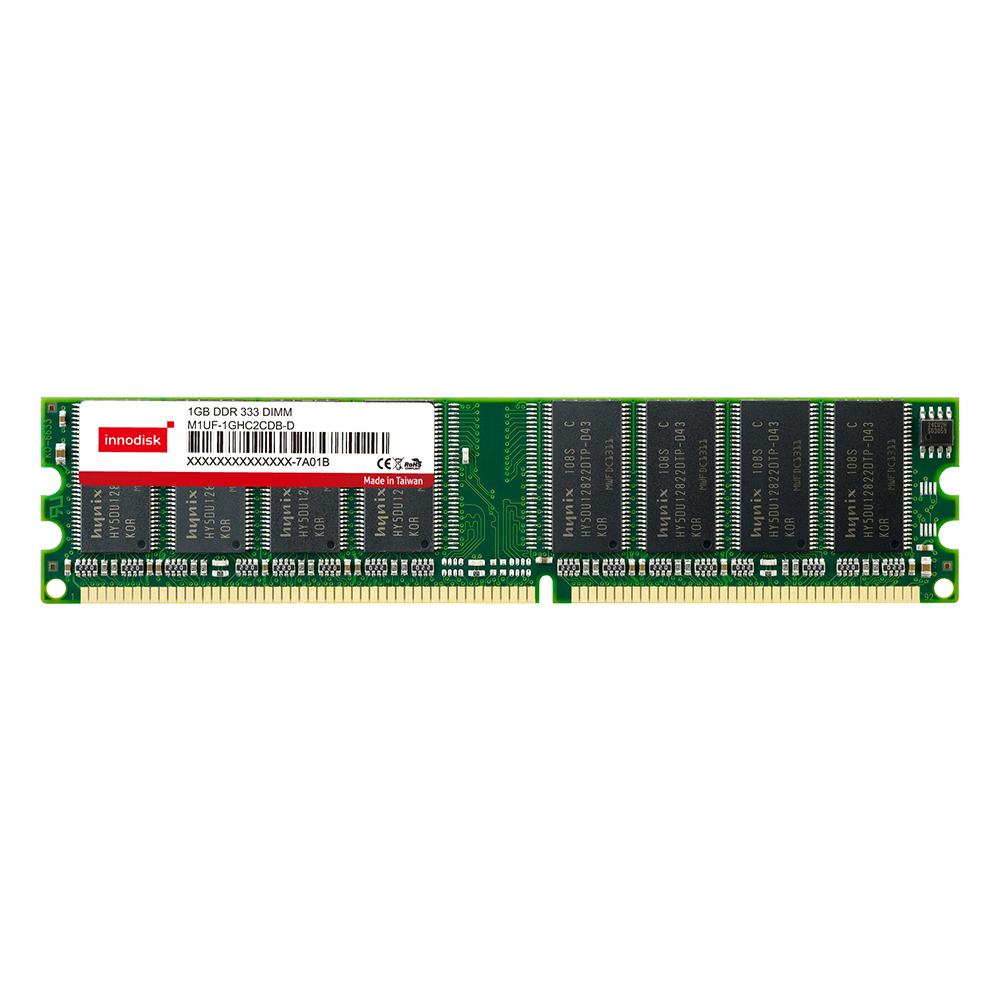

DDR UDIMM

alvasta-tech.com / Industrial / Innodisk / DRAM Modules / DDR / DDR UDIMM /

DDR UDIMM

DDR

Non-ECC Unbuffered Memory

Features

Fully Tested and Optimized for Stability and Performance
Uses Original IC to Meet Strict Industrial Standards
JEDEC Standard 2.6V +/- 0.2V
Operating Environment : 0°C ~ 70°C
RoHS Compliance

BORN FOR SUPERIOR PERFORMANCE

DDR UDIMM is an industrial memory module that provides lasting performance and is designed for the surveillance, automation, and embedded markets. The modules comply with all relevant JEDEC standards and are available in 512MB and 1GB capacities, and with data transfer rates of 333MT/s and 400MT/s.

SPECIFICATIONS

Model Name	DDR UDIMM
DDR Generation	DDR Memory
DIMM Type	UDIMM
Speed	333 MT/s, 400 MT/s
Density	512MB, 1GB
Function	Non-ECC Unbuffered Memory
Pin Number	184pin
Bus Width	x64
Voltage	2.6V
PCB Height	1.16 Inches
Operating Temperature	0°C ~ 70°C

ORDER INFORMATION

P/N	IC Config.	Rank	Temp.	Description
M1UF-12MC2C03-J	1G x 8	1R x 8	0°C ~ 70°C	DDR 400 512MB UDIMM
M1UF-1GMC2C03-J	2G x 8	2R x 8	0°C ~ 70°C	DDR 400 1GB UDIMM

For more information, please contact our support.
