DDR2 SODIMM

DDR2

Non-ECC Unbuffered Memory

Feature

  • Small Outline Dual In-line Memory Module
  • Fully Tested and Optimized for Stability and Performance
  • Uses Original IC to Meet Strict Industrial Standards
  • JEDEC Standard 1.8V +/- 0.1V
  • Operating Environment : 0°C ~ 85°C
  • RoHS Compliance
  • CE/FCC Certification

BORN FOR SUPERIOR PERFORMANCE

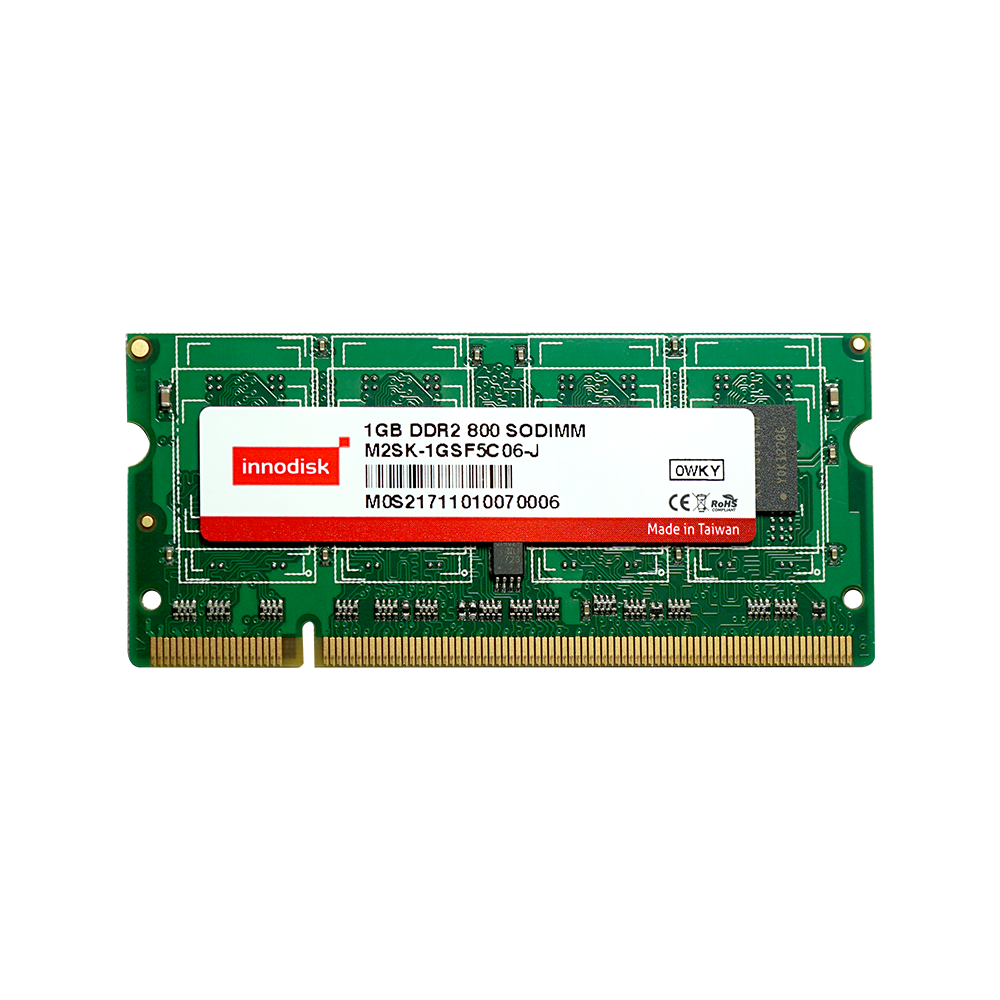

DDR2 SODIMM (small outline) is a compact memory module that fits neatly into any embedded, surveillance and automation setup. The modules comply with all relevant JEDEC standards and are available in 512MB, 1GB, 2GB, and 4GB capacities and with data transfer rates of 533MT/s, 667MT/s, and 800MT/s.


SPECIFICATIONS

Model Name

DDR2 SODIMM

DDR Generation

DDR2 Memory

DIMM Type

SODIMM

Speed

533 MT/s, 667 MT/s, 800 MT/s

Density

512MB, 1GB, 2GB, 4GB

Function

Non-ECC Unbuffered Memory

Pin Number

200pin

Bus Width

x64

Voltage

1.8V

PCB Height

1.18 Inches

Operating Temperature

0°C ~ 85°C


ORDER INFORMATION

P/N

IC Config.

Rank

Temp.

Description

M2SK-12MD4C06-M

64M x 16

1R x 16

0°C ~ 85°C

DDR2 800 512MB SODIMM

M2SK-1GMDAC06-M

64M x 16

2R x 16

0°C ~ 85°C

DDR2 800 1GB SODIMM

M2SK-1GMF5C06-M

128M x 8

1R x 8

0°C ~ 85°C

DDR2 800 1GB SODIMM

M2SK-2GMF6C06-M

128M x 8

2R x 8

0°C ~ 85°C

DDR2 800 2GB SODIMM

M2SK-4GMJ6C05-C

256M x 8

2R x 8

0°C ~ 85°C

DDR2 800 4GB SODIMM


For more information, please contact our support.
