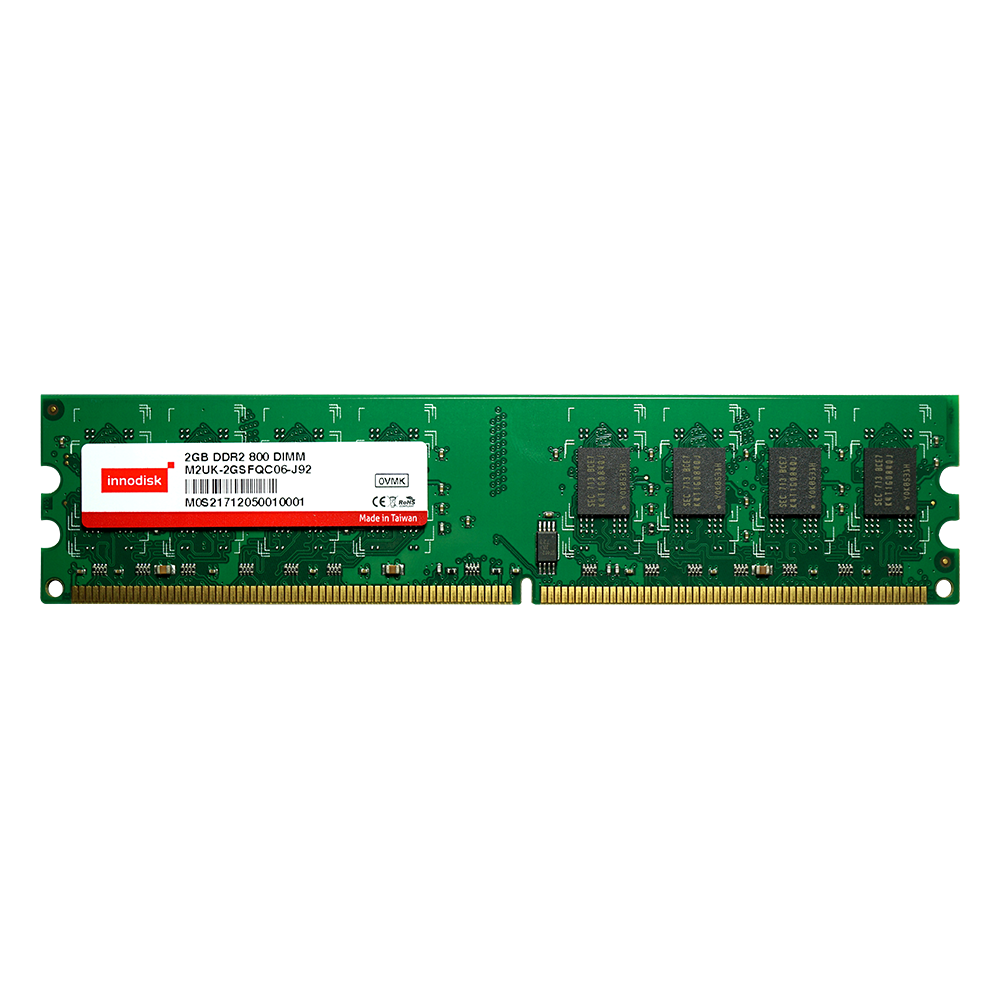

DDR2 UDIMM

alvasta-tech.com / Industrial / Innodisk / DRAM Modules / DDR2 / DDR2 UDIMM /

DDR2 UDIMM

DDR2

Non-ECC Unbuffered Memory

Feature

Fully Tested and Optimized for Stability and Performance
Uses Original IC to Meet Strict Industrial Standards
JEDEC Standard 1.8V +/- 0.1V
Operating Environment : 0°C ~ 85°C
RoHS Compliance

BORN FOR SUPERIOR PERFORMANCE

DDR2 UDIMM is an industrial memory module that provides lasting performance and is designed for the surveillance, automation, and embedded markets. The modules comply with all relevant JEDEC standards and are available in 1GB, 2GB, and 4GB capacities, with data transfer rates of 800MT/s.

SPECIFICATIONS

Model Name	DDR2 UDIMM
DDR Generation	DDR2 Memory
DIMM Type	UDIMM
Speed	800 MT/s
Density	1GB, 2GB, 4GB
Function	Non-ECC Unbuffered Memory
Pin Number	240pin
Bus Width	x64
Voltage	1.8V
PCB Height	1.18 Inches
Operating Temperature	0°C ~ 85°C

ORDER INFORMATION

P/N	IC Config.	Rank	Temp.	Description
M2UK-1GMF7C06-M	128M x 8	1R x 8	0°C ~ 85°C	DDR2 800 1GB UDIMM
M2UK-2GMFQC06-M	128M x 8	2R x 8	0°C ~ 85°C	DDR2 800 2GB UDIMM
M2UK-4GMJQC05-C	256M x 8	2R x 8	0°C ~ 85°C	DDR2 800 4GB UDIMM

For more information, please contact our support.
