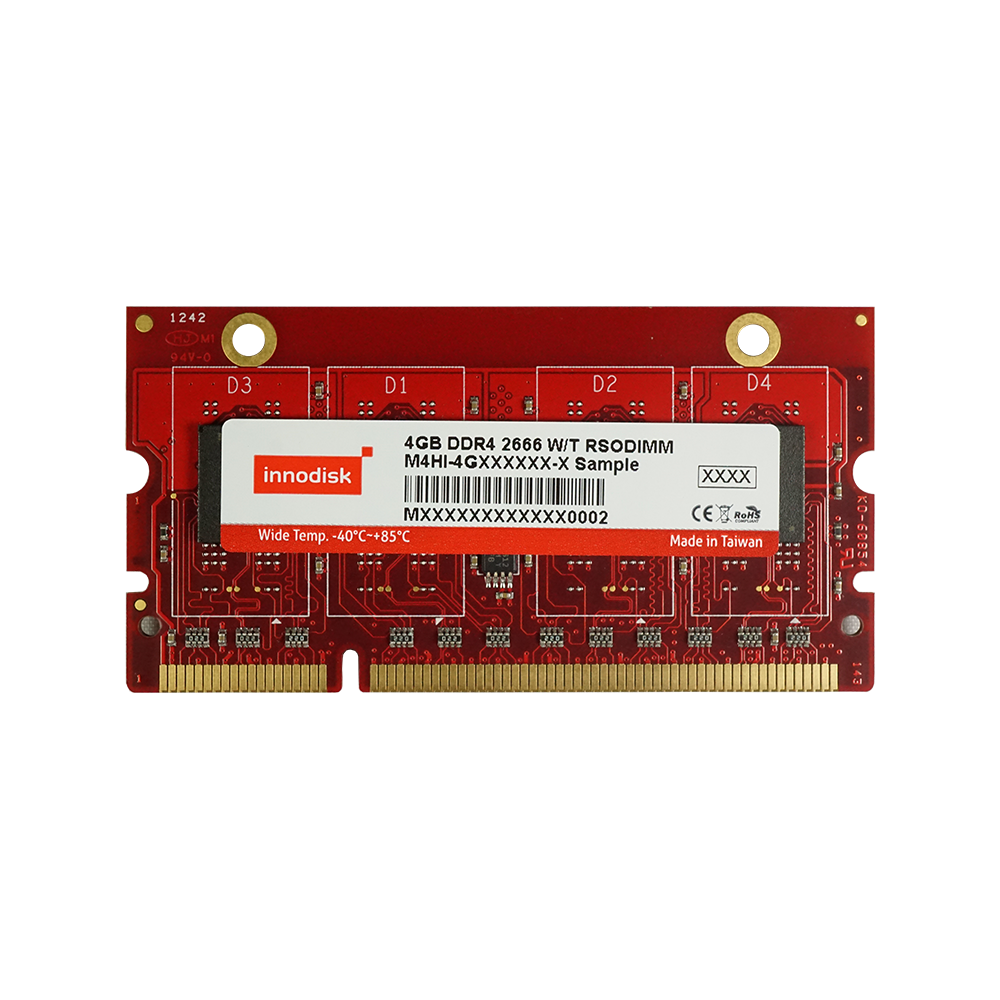

DDR4 Wide Temp. Rugged SODIMM

DDR4

Non-ECC Unbuffered Memory

Features

  • Specially made for Aerospace & Mission Critical application, and other harsh environment usage
  • JEDEC standard 1.2V (1.26V ~ 1.14V) with 260-pin
  • JEDEC Standard 8bit pre-fetch
  • OCD (Off-Chip Driver Impedance Adjustment)
  • Programmable burst length 4 / 8 with both sequential and interleave mode
  • 30?" Gold Finger
  • Equipped with 2 mounting holes to ensure a firm connection
  • RoHS Compliance

BORN FOR SUPERIOR PERFORMANCE

In order to meet the high standards of the aerospace and defense industry, our Rugged DIMM comes equipped with several advantages which will satisfy your expectation for robust DRAM modules. We design two mounting hole to provide extra shock and vibration resistance.


SPECIFICATIONS

Model Name

DDR4 Wide Temperature Rugged SODIMM

DDR Generation

DDR4 Memory

DIMM Type

SODIMM

Speed

2400 MT/s, 2666 MT/s

Density

16GB

Function

Non-ECC Unbuffered Memory

Pin Number

260pin

Bus Width

x64

Voltage

1.2V

PCB Height

1.18 Inches

Operating Temperature

-40°C ~ 95°C (Tc)

30?” Gold Finger

Y

Anti-Sulfuration

Y


ORDER INFORMATION

P/N

IC Config.

Rank

Temp.

Description

M4GE-AGS1O5SJ-G

1G x 8

1R x 8

-40°C ~ 95°C (Tc)

DDR4 2400 4GB Mini ECC VLP

M4GE-AGS1O5IK-G

1G x 8

1R x 8

-40°C ~ 95°C (Tc)

DDR4 2666 4GB Mini ECC VLP


For more information, please contact our support.
