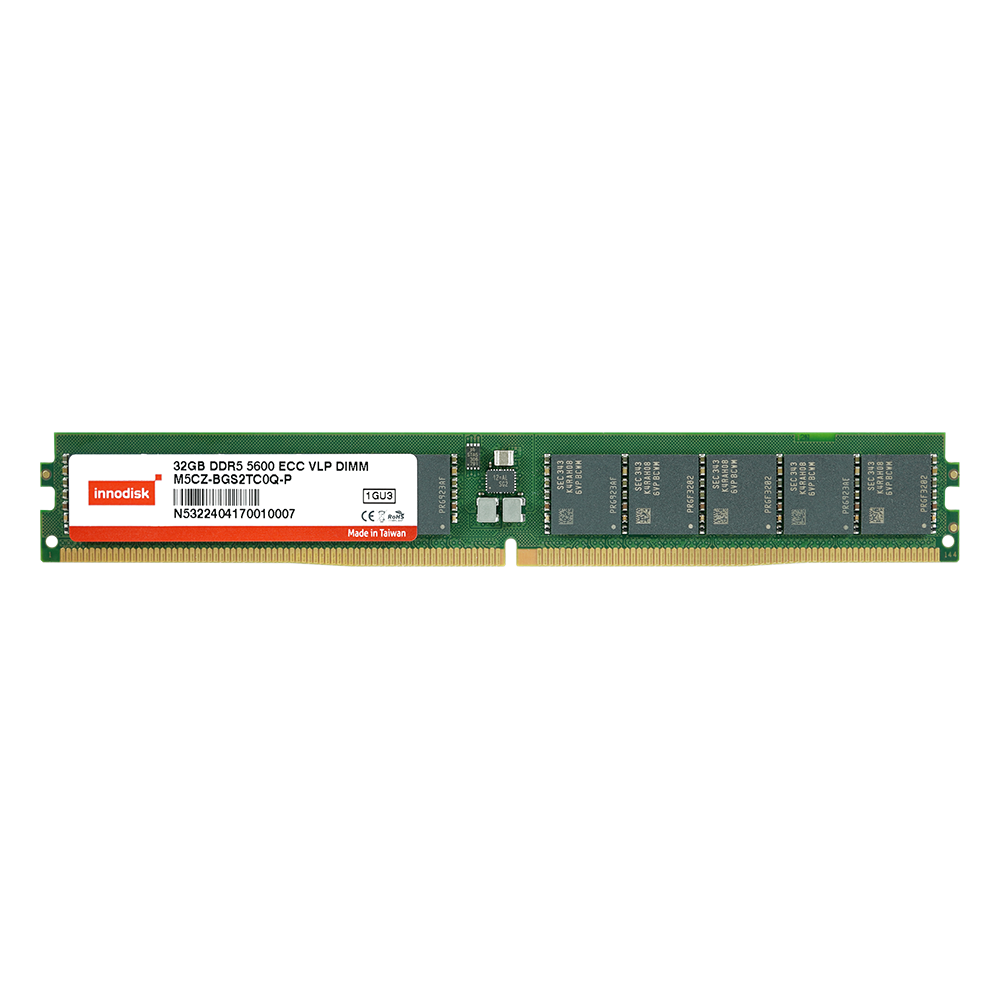

DDR5 ECC UDIMM VLP

alvasta-tech.com / Industrial / Innodisk / DRAM Modules / DDR5 / DDR5 ECC UDIMM VLP /

DDR5 ECC UDIMM VLP

DDR5

ECC Unbuffered Memory

Features

  • Saves 40% of system space with VLP (Very Low Profile) design
  • ECC DIMM incorporates error correction and detection capabilities
  • Speeds up to 5600MT/s with capacities up to 32GB
  • Operating Environment: 0°C ~ 95°C (Tc)
  • DDR5 original-grade IC equipped with on-die ECC functionality
  • DDR5 on-module PMIC and dual sub-channel structure
  • 30?” gold finger ensures durability, with anti-sulfuration shielding against harsh conditions
  • Complies with RoHS and CE / FCC certifications

BORN FOR SUPERIOR PERFORMANCE

As AI drives growing data transmission demands, DDR5 DRAM stands out as the optimal choice. With advancements in design and development, DDR5 offers up to 32GB capacity and 5600MT/s speed, surpassing previous generations in overall performance.


SPECIFICATIONS

Model Name

DDR5 ECC UDIMM VLP

DDR Generation

DDR5 Memory

DIMM Type

ECC UDIMM VLP

Speed

4800 MT/s, 5600 MT/s

Density

16GB, 32GB

Function

ECC Unbuffered Memory

Pin Number

288pin

Bus Width

x72

Voltage

1.1V

PCB Height

0.738 Inches

Operating Temperature

0°C ~ 95°C (Tc)

30?” Gold Finger

Y

Anti-Sulfuration

Y


ORDER INFORMATION

P/N

IC Config.

Rank

Temp.

Description

M5C0-AGS2SCZQ

2G x 8

1R x 8

0°C ~ 95°C (Tc)

DDR5 5600 16GB ECC UDIMM VLP

M5C0-AGM2SCZQ

2G x 8

1R x 8

0°C ~ 95°C (Tc)

DDR5 5600 16GB ECC UDIMM VLP

M5C0-BGS2TCZQ

2G x 8

2R x 8

0°C ~ 95°C (Tc)

DDR5 5600 32GB ECC UDIMM VLP

M5C0-BGM2TCZQ

2G x 8

2R x 8

0°C ~ 95°C (Tc)

DDR5 5600 32GB ECC UDIMM VLP
