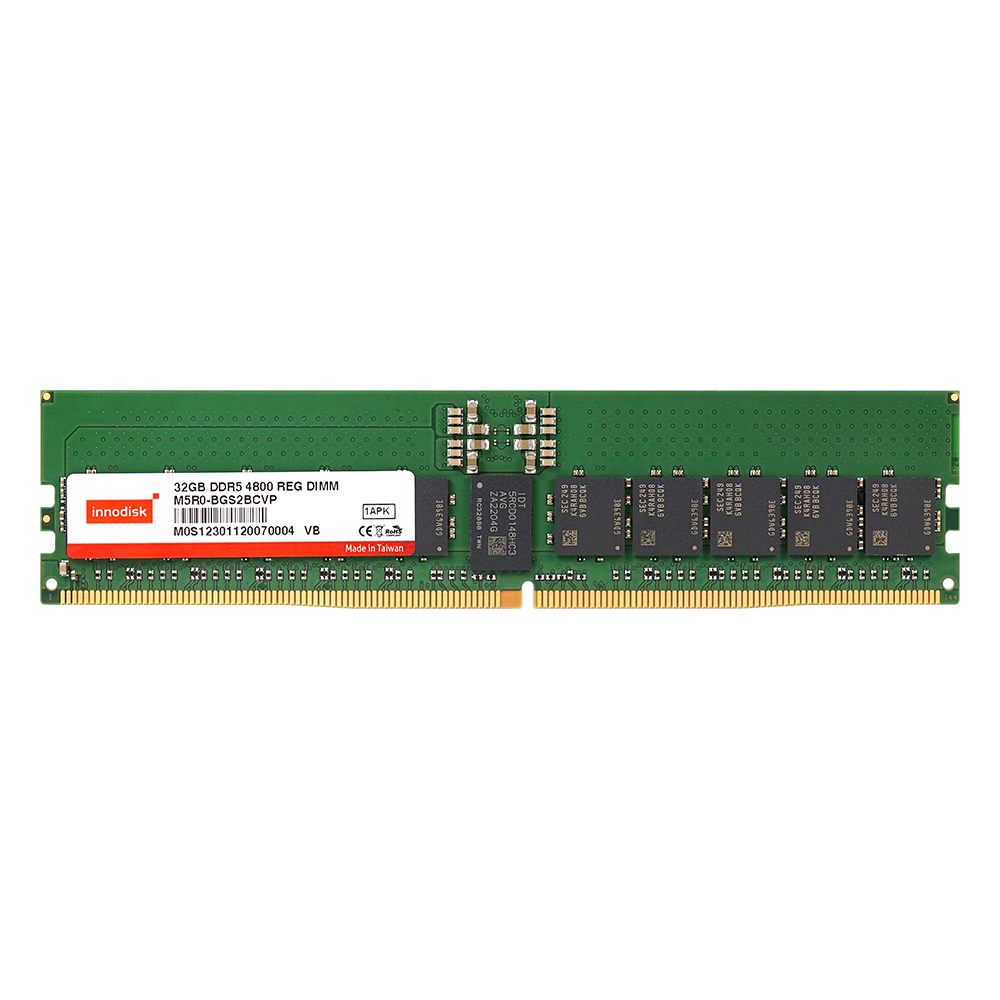

DDR5 RDIMM

DDR5

Registered Memory with ECC

Features

  • Register for enhancing clock, command, and control signals
  • Equipped with error correction and detection capabilities
  • Speeds up to 5600MT/s with capacities up to 128GB
  • Operating Environment: 0°C ~ 95°C (Tc)
  • DDR5 original-grade IC equipped with on-die ECC functionality
  • DDR5 on-module PMIC and dual sub-channel structure
  • 30?” gold finger ensures durability, with anti-sulfuration shielding against harsh conditions
  • Complies with RoHS and CE / FCC certifications

BORN FOR SUPERIOR PERFORMANCE

As AI drives growing data transmission demands, DDR5 DRAM stands out as the optimal choice. With advancements in design and development, DDR5 offers up to 128GB capacity and 5600MT/s speed, surpassing previous generations in overall performance.


SPECIFICATIONS

Model Name

DDR5 RDIMM

DDR Generation

DDR5 Memory

DIMM Type

RDIMM

Speed

4800 MT/s, 5600 MT/s

Density

16GB, 32GB, 64GB, 96GB, 128GB

Function

Registered Memory with ECC

Pin Number

288pin

Bus Width

x80

Voltage

1.1V

PCB Height

1.23 Inches

Operating Temperature

0°C ~ 95°C (Tc)

30?” Gold Finger

Y

Anti-Sulfuration

Y


ORDER INFORMATION

P/N

IC Config.

Rank

Temp.

Description

M5R0-AGS2ACZQ

2G x 8

1R x 8

0°C ~ 95°C (Tc)

DDR5 5600 16GB RDIMM

M5R0-AGM2ACZQ

2G x 8

1R x 8

0°C ~ 95°C (Tc)

DDR5 5600 16GB RDIMM

M5R0-BGS2BCZQ

2G x 8

2R x 8

0°C ~ 95°C (Tc)

DDR5 5600 32GB RDIMM

M5R0-BGM2BCZQ

2G x 8

2R x 8

0°C ~ 95°C (Tc)

DDR5 5600 32GB RDIMM

M5R0-CGS7GCZQ

4G x 4

2R x 4

0°C ~ 95°C (Tc)

DDR5 5600 64GB RDIMM

M5R0-HGS09CZQ

6G x 4

2R x 4

0°C ~ 95°C (Tc)

DDR5 5600 96GB RDIMM

M5R0-DGSEGCZQ

16G x 4

2R x 4

0°C ~ 95°C (Tc)

DDR5 5600 128GB RDIMM


For more information, please contact our support.
