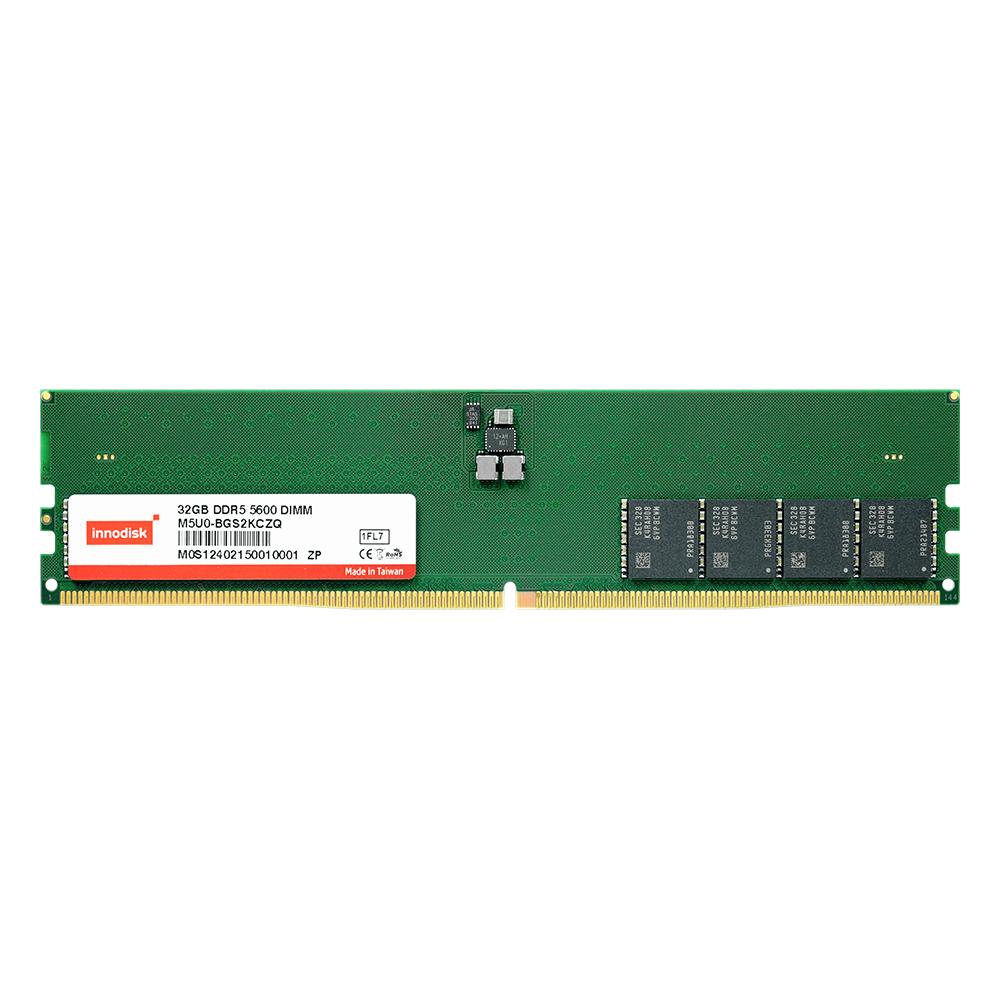

DDR5 UDIMM

DDR5

Non-ECC Unbuffered Memory

Features

  • Speeds up to 5600MT/s with capacities up to 48GB
  • Operating Environment: 0°C ~ 95°C (Tc)
  • DDR5 original-grade IC equipped with on-die ECC functionality
  • DDR5 on-module PMIC and dual sub-channel structure
  • 30?” gold finger ensures durability, with anti-sulfuration shielding against harsh conditions
  • Complies with RoHS and CE / FCC certifications

BORN FOR SUPERIOR PERFORMANCE

As AI drives growing data transmission demands, DDR5 DRAM stands out as the optimal choice. With advancements in design and development, DDR5 offers up to 48GB capacity and 5600MT/s speed, surpassing previous generations in overall performance.


SPECIFICATIONS

Model Name

DDR5 UDIMM

DDR Generation

DDR5 Memory

DIMM Type

UDIMM

Speed

4800 MT/s, 5600 MT/s

Density

8GB, 16GB, 24GB, 32GB, 48GB

Function

Non-ECC Unbuffered Memory

Pin Number

288pin

Bus Width

x64

Voltage

1.1V

PCB Height

1.23 Inches

Operating Temperature

0°C ~ 95°C (Tc)

30?” Gold Finger

Y

Anti-Sulfuration

Y


ORDER INFORMATION

P/N

IC Config.

Rank

Temp.

Description

M5U0-8GSY1CZQ

1G x 16

1R x 16

0°C ~ 95°C (Tc)

DDR5 5600 8GB UDIMM

M5U0-8GMY1CZQ

1G x 16

1R x 16

0°C ~ 95°C (Tc)

DDR5 5600 8GB UDIMM

M5U0-AGS2JCZQ

2G x 8

1R x 8

0°C ~ 95°C (Tc)

DDR5 5600 16GB UDIMM

M5U0-AGM2JCZQ

2G x 8

1R x 8

0°C ~ 95°C (Tc)

DDR5 5600 16GB UDIMM

M5U0-FGMZJCZQ

3G x 8

1R x 8

0°C ~ 95°C (Tc)

DDR5 5600 24GB UDIMM

M5U0-BGS2KCZQ

2G x 8

2R x 8

0°C ~ 95°C (Tc)

DDR5 5600 32GB UDIMM

M5U0-BGM2KCZQ

2G x 8

2R x 8

0°C ~ 95°C (Tc)

DDR5 5600 32GB UDIMM

M5U0-GGMZKCZQ

3G x 8

2R x 8

0°C ~ 95°C (Tc)

DDR5 5600 48GB UDIMM


For more information, please contact our support.
