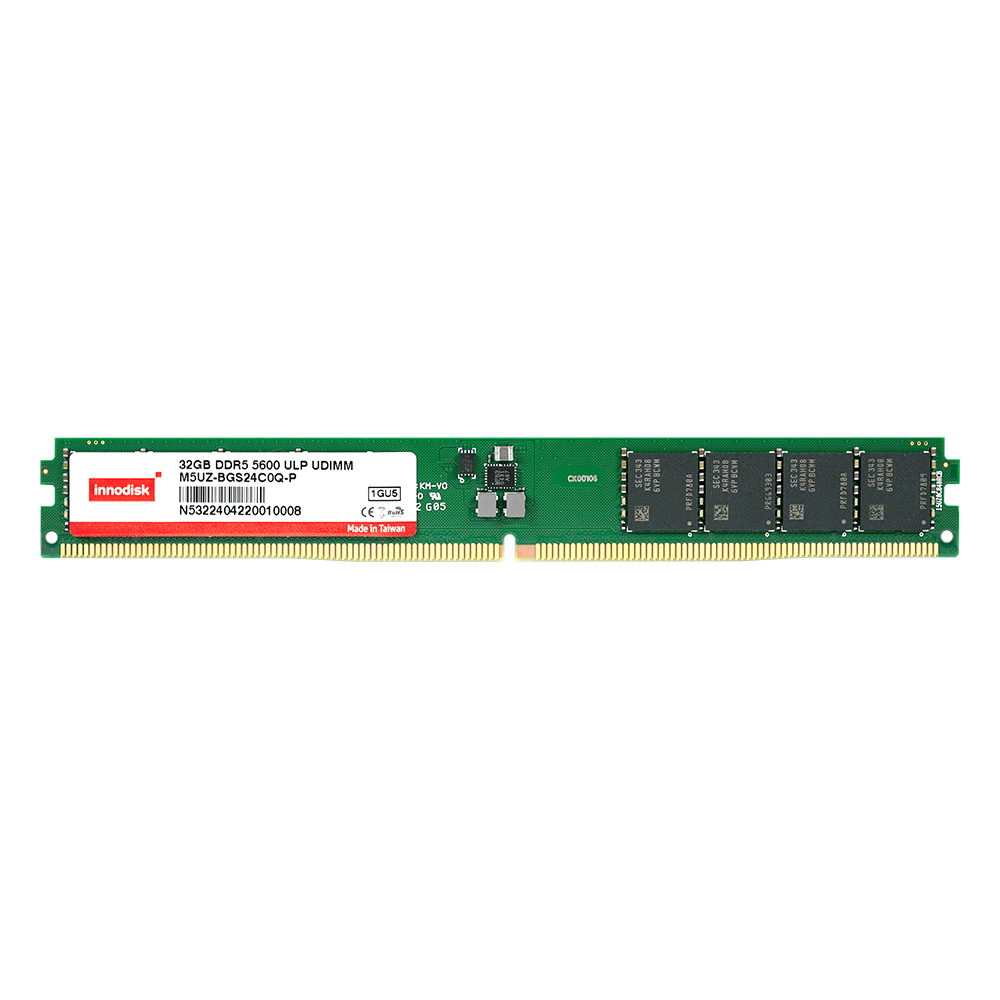

DDR5 UDIMM ULP

alvasta-tech.com / Industrial / Innodisk / DRAM Modules / DDR5 / DDR5 UDIMM ULP /

DDR5 UDIMM ULP

DDR5

Non-ECC Unbuffered Memory

Features

  • Saves more than 40% of system space with ULP (Ultra Low Profile) design
  • Speeds up to 5600MT/s with capacities up to 32GB
  • Operating Environment: 0°C ~ 95°C (Tc)
  • DDR5 original-grade IC equipped with on-die ECC functionality
  • DDR5 on-module PMIC and dual sub-channel structure
  • 30?” gold finger ensures durability, with anti-sulfuration shielding against harsh conditions
  • Complies with RoHS and CE / FCC certifications

BORN FOR SUPERIOR PERFORMANCE

As AI drives growing data transmission demands, DDR5 DRAM stands out as the optimal choice. With advancements in design and development, DDR5 offers up to 32GB capacity and 5600MT/s speed, surpassing previous generations in overall performance.


SPECIFICATIONS

Model Name

DDR5 UDIMM ULP

DDR Generation

DDR5 Memory

DIMM Type

UDIMM ULP

Speed

4800 MT/s, 5600 MT/s

Density

16GB, 32GB

Function

Non-ECC Unbuffered Memory

Pin Number

288pin

Bus Width

x64

Voltage

1.1V

PCB Height

0.7 Inches

Operating Temperature

0°C ~ 95°C (Tc)

30?” Gold Finger

Y

Anti-Sulfuration

Y


ORDER INFORMATION

P/N

IC Config.

Rank

Temp.

Description

M5U0-AGS23CZQ

2G x 8

1R x 8

0°C ~ 95°C (Tc)

DDR5 5600 16GB UDIMM ULP

M5U0-AGM23CZQ

2G x 8

1R x 8

0°C ~ 95°C (Tc)

DDR5 5600 16GB UDIMM ULP

M5U0-BGS24CZQ

2G x 8

2R x 8

0°C ~ 95°C (Tc)

DDR5 5600 32GB UDIMM ULP

M5U0-BGM24CZQ

2G x 8

2R x 8

0°C ~ 95°C (Tc)

DDR5 5600 32GB UDIMM ULP


For more information, please contact our support.
