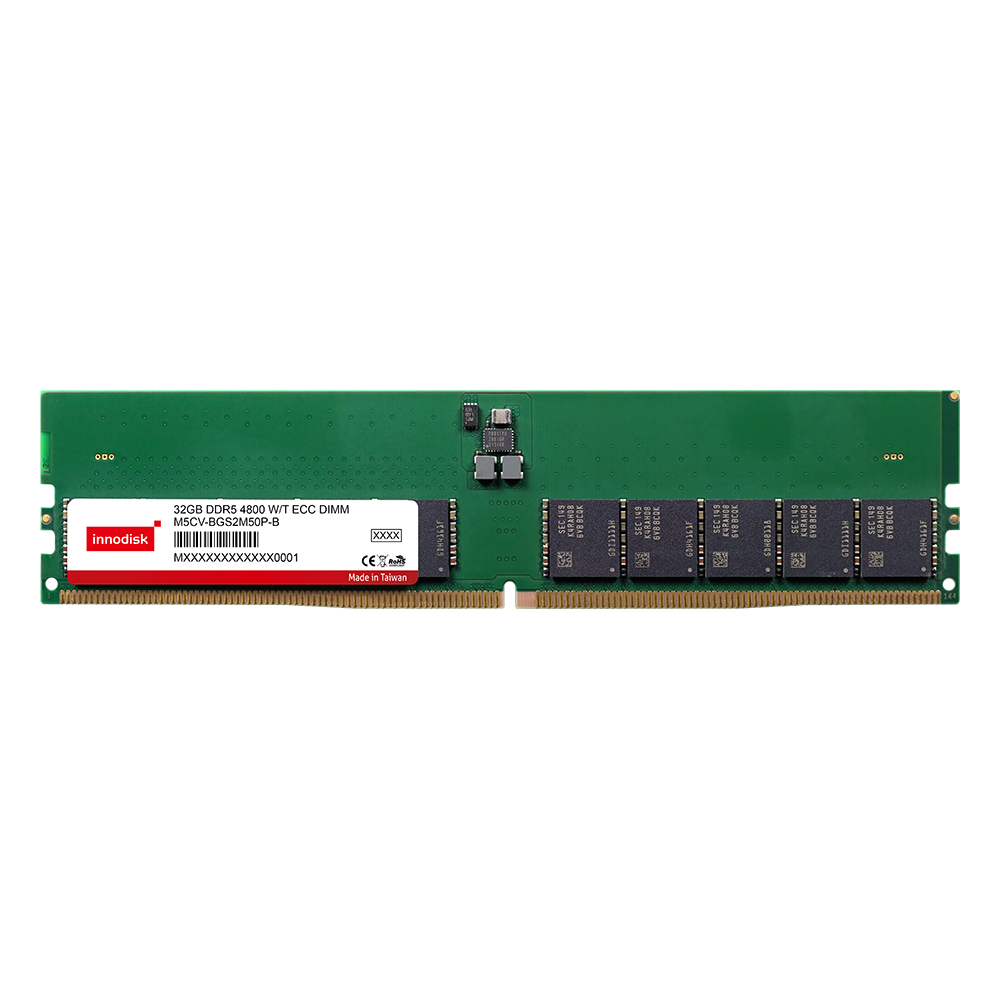

DDR5 Wide Temp. ECC UDIMM

alvasta-tech.com / Industrial / Innodisk / DRAM Modules / DDR5 / DDR5 Wide Temp. ECC UDIMM /

DDR5 Wide Temp. ECC UDIMM

DDR5

ECC Unbuffered Memory

Features

  • ECC DIMM incorporates error correction and detection capabilities
  • Speeds up to 5600MT/s with capacities up to 48GB
  • Operating Environment: -40°C ~ 95°C (Tc)
  • DDR5 original-grade IC equipped with on-die ECC functionality
  • DDR5 on-module PMIC and dual sub-channel structure
  • 30?” gold finger ensures durability, with anti-sulfuration shielding against harsh conditions
  • Complies with RoHS and CE / FCC certifications

BORN FOR SUPERIOR PERFORMANCE

As AI drives growing data transmission demands, DDR5 DRAM stands out as the optimal choice. With advancements in design and development, DDR5 offers up to 48GB capacity and 5600MT/s speed, surpassing previous generations in overall performance.


SPECIFICATIONS

Model Name

DDR5 Wide Temperature ECC UDIMM

DDR Generation

DDR5 Memory

DIMM Type

ECC UDIMM

Speed

4800 MT/s, 5600 MT/s

Density

16GB, 24GB, 32GB, 48GB

Function

ECC Unbuffered Memory

Pin Number

288pin

Bus Width

x72

Voltage

1.1V

PCB Height

1.23 Inches

Operating Temperature

-40°C ~ 95°C (Tc)

30?” Gold Finger

Y

Anti-Sulfuration

Y


ORDER INFORMATION

P/N

IC Config.

Rank

Temp.

Description

M5C0-AGS2L5ZQ

2G x 8

1R x 8

-40°C ~ 95°C (Tc)

DDR5 5600 16GB Wide Temperature ECC UDIMM

M5C0-AGM2L5ZQ

2G x 8

1R x 8

-40°C ~ 95°C (Tc)

DDR5 5600 16GB Wide Temperature ECC UDIMM

M5C0-FGMZL5ZQ

3G x 8

1R x 8

-40°C ~ 95°C (Tc)

DDR5 5600 24GB Wide Temperature ECC UDIMM

M5C0-BGS2M5ZQ

2G x 8

2R x 8

-40°C ~ 95°C (Tc)

DDR5 5600 32GB Wide Temperature ECC UDIMM

M5C0-BGM2M5ZQ

2G x 8

2R x 8

-40°C ~ 95°C (Tc)

DDR5 5600 32GB Wide Temperature ECC UDIMM

M5C0-GGMZM5ZQ

3G x 8

2R x 8

-40°C ~ 95°C (Tc)

DDR5 5600 48GB Wide Temperature ECC UDIMM


For more information, please contact our support.


Need support, click here
