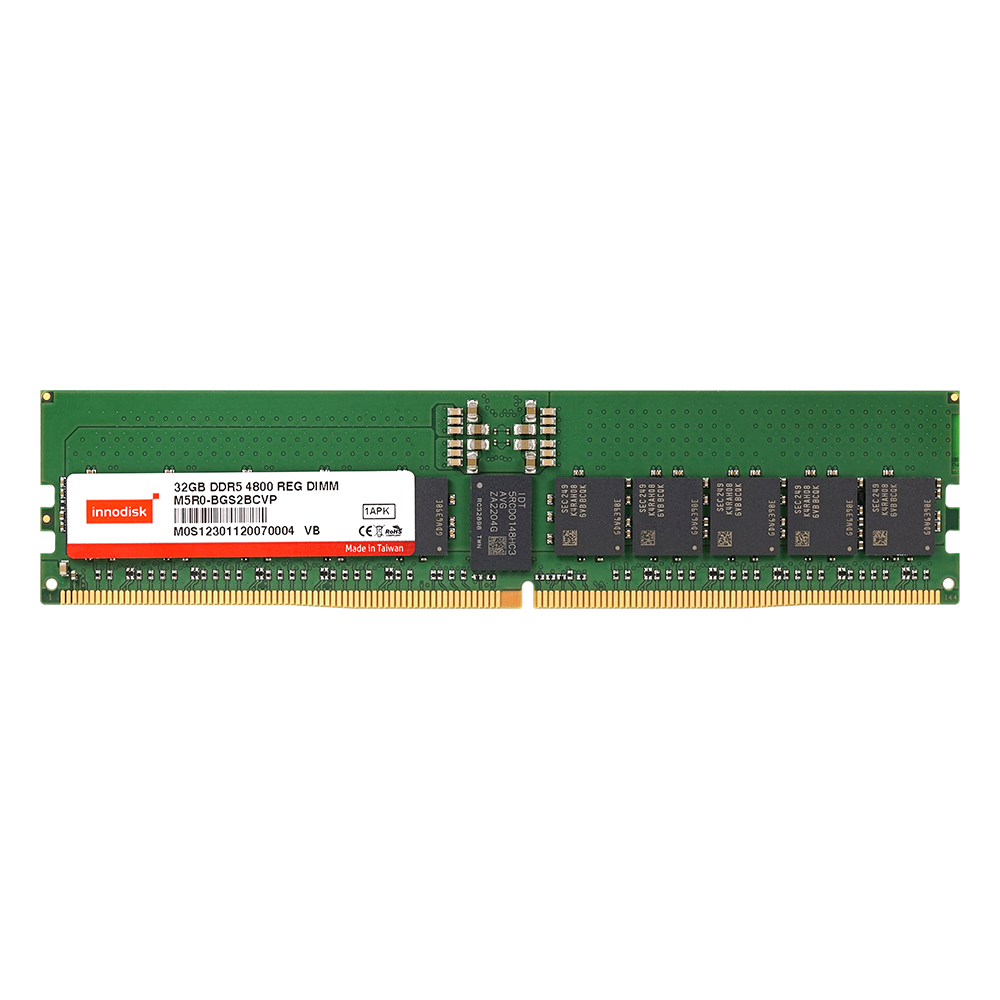

DDR5 Wide Temp. RDIMM

alvasta-tech.com / Industrial / Innodisk / DRAM Modules / DDR5 / DDR5 Wide Temp. RDIMM /

DDR5 Wide Temp. RDIMM

DDR5

Registered Memory with ECC

Features

  • Register for enhancing clock, command, and control signals
  • Equipped with error correction and detection capabilities
  • Speeds up to 5600MT/s with capacities up to 32GB
  • Operating Environment: -40°C ~ 95°C (Tc)
  • DDR5 original-grade IC equipped with on-die ECC functionality
  • DDR5 on-module PMIC and dual sub-channel structure
  • 30?” gold finger ensures durability, with anti-sulfuration shielding against harsh conditions
  • Complies with RoHS and CE / FCC certifications

BORN FOR SUPERIOR PERFORMANCE

As AI drives growing data transmission demands, DDR5 DRAM stands out as the optimal choice. With advancements in design and development, DDR5 offers up to 32GB capacity and 5600MT/s speed, surpassing previous generations in overall performance.


SPECIFICATIONS

Model Name

DDR5 Wide Temperature RDIMM

DDR Generation

DDR5 Memory

DIMM Type

RDIMM

Speed

4800 MT/s, 5600 MT/s

Density

16GB, 32GB

Function

Registered Memory with ECC

Pin Number

288pin

Bus Width

x80

Voltage

1.1V

PCB Height

1.23 Inches

Operating Temperature

-40°C ~ 95°C (Tc)

30?” Gold Finger

Y

Anti-Sulfuration

Y


ORDER INFORMATION

P/N

IC Config.

Rank

Temp.

Description

M5R0-AGS2A5ZQ

2G x 8

1R x 8

-40°C ~ 95°C (Tc)

DDR5 5600 16GB Wide Temperature RDIMM

M5R0-AGM2A5ZQ

2G x 8

1R x 8

-40°C ~ 95°C (Tc)

DDR5 5600 16GB Wide Temperature RDIMM

M5R0-BGS2B5ZQ

2G x 8

2R x 8

-40°C ~ 95°C (Tc)

DDR5 5600 32GB Wide Temperature RDIMM

M5R0-BGM2B5ZQ

2G x 8

2R x 8

-40°C ~ 95°C (Tc)

DDR5 5600 32GB Wide Temperature RDIMM


For more information, please contact our support.
