ECDIS Marine Panel PC

OVERVIEW

Winmate ECDIS Marine Panel PCs are built and tested according to DNV Standard Certification, IEC60945, and IACS-E10 for maritime applications. Color calibrated for ECDIS compliance, dimming brightness, projective capacitive multi-touch screen, and capacitive touch keys, and wide voltage range power input 9-36 V DC acceptable.

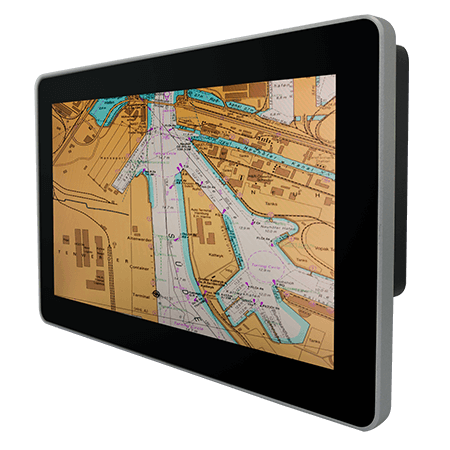

W10IB3S-MRH2 10.1" Intel® Celeron® N2930 Flat }PCAP Marine Panel PC KEY FEATURES 1280 x 800 resolution P-Cap multi-touch screen Front IP65 and full IP44 ratings Isolated connectors (M12 type) Wireless communications - Wi-Fi, WWAN, GPS (optional) Optical bonding with touch screen available on request Learn more...	R15IH3S-MRA3FP 15" Intel® Core™ i5-5350U Flat PCAP ECDIS Marine Panel PC KEY FEATURES 15”1024 x 768 PCAP touchscreen,Flat PCAP ECDIS Marine Panel PC 5th Gen. Intel® Core™ i5 -5350U @ 2.20GHz Edge-to-edge narrow bezel design and fanless cooling system Capacitive touch keys for quick function access and display control (Support ECDIS DAY, DUSK, and NIGHT mode switching) Meet the requirements of Industrial marine standards, including IEC60945 4th Edition, DNVGL-CG-0339, IACS E10 Learn more...	R19IH3S-MRA1FP 19" Intel® Core™ i5-5350U Flat PCAP ECDIS Marine Panel PC KEY FEATURES 19” 1280 x 1024 resolution with projective capacitive multi-touch screen Edge-to-edge narrow bezel design and fanless cooling system Color calibrated for ECDIS compliance (Optional) Capacitive touch keys for quick function access and display control (Support ECDIS DAY, DUSK, and NIGHT mode switching) Optional 4 x COM port (NMEA 0183 protocol) 422/485 switchable via software Meet the requirements of Industrial marine standards, including IEC60945 4th Edition, DNVGL-CG-0339, IACS E10 Support capacitive touch key lock / touchscreen lock function Learn more...

W24IH3S-MRA1FP 24" Intel® Core™ i5-5350U Flat PCAP ECDIS Marine Panel PC KEY FEATURES 24” 1920 x 1080 resolution with projective capacitive multi-touch screen Edge-to-edge narrow bezel design and fanless cooling system Color calibrated for ECDIS compliance (Optional) Capacitive touch keys for quick function access and display control (Support ECDIS DAY, DUSK, and NIGHT mode switching) Optional 4 x COM port (NMEA 0183 protocol) 422/485 switchable via software Meet the requirements of Industrial marine standards, including IEC60945 4th Edition, DNVGL-CG-0339, IACS E10 Support capacitive touch key lock / touchscreen lock function Learn more...	W26IH3S-MRA1FP 26" Intel® Core™ i5-5350U Flat PCAP ECDIS Marine Panel PC KEY FEATURES 26” 1920 x 1200 resolution with projective capacitive multi-touch screen Edge-to-edge narrow bezel design and fanless cooling system, Flat PCAP ECDIS Marine Panel PC Color calibrated for ECDIS compliance (Optional) Capacitive touch keys for quick function access and display control Support ECDIS DAY, DUSK, and NIGHT mode switching Optional 4 x COM port (NMEA 0183 protocol) 422/485 switchable via software Meet the requirements of industrial marine standards, including IEC60945 4th Edition, DNVGL-CG-0339, IACS E10 Support capacitive touch key lock / touchscreen lock function Learn more...
