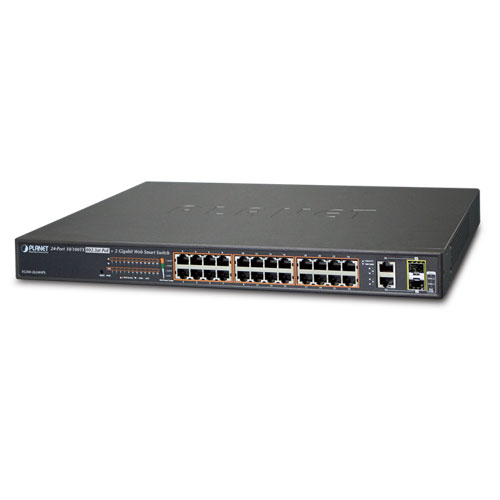

FGSW-2624HPS/FGSW-2624HPS4

FGSW-2624HPS/FGSW-2624HPS4
24-Port 10/100TX 802.3at PoE + 2-Port Gigabit TP/SFP Combo Web Smart Ethernet Switch


Key Features

Physical Port
  • 24-port 10/100BASE-TX RJ45 copper with 24-port IEEE 802.3at/af PoE injector
  • 2-port 10/100/1000BASE-T Gigabit RJ45 copper
  • 2 1000BASE-X mini-GBIC/SFP slots, shared with port-25 to port-26
  • Reset button for system management

Power over Ethernet
    • Complies with IEEE 802.3at High Power over Ethernet End-span PSE
    • Complies with IEEE 802.3af Power over Ethernet End-span PSE
    • Up to 24 IEEE 802.3at / 802.3af devices powered
    • Supports PoE Power up to 30.8 watts for each PoE port
    • Detects powered device (PD) automatically
    • Circuit protection prevents power interference between ports
    • Remote power feeding up to 100m
    • PoE Power Usage
    • PoE Management
- Per port PoE function enable/disable- PoE Port Power feeding priority- Per PoE port power limit- PD classification detection- PoE power sequential
Layer 2 Features
    • Auto-MDI/MDI-X detection on each RJ45 port
    • Prevents packet loss with back pressure (half-duplex) and IEEE 802.3x pause frame flow control (full-duplex)
    • Supports broadcast storm control
    • Supports VLAN
- IEEE 802.1Q tag-based VLAN, up to 32 VLANs groups, out of 4095 VLAN IDs- Port-based VLAN, up to 26 VLAN groups- MTU VLAN (Multi-tenant Unit VLAN)
    • Supports Link Aggregation
- 802.3ad Link Aggregation Control Protocol (LACP)- Cisco ether-channel (static trunk)
    • Supports Spanning Tree Protocol
- STP, IEEE 802.1d Spanning Tree Protocol- RSTP, IEEE 802.1w Rapid Spanning Tree Protocol
  • Port mirroring to monitor the incoming or outgoing traffic on a particular port
  • Provides port mirror (Many-to-1)

Quality of Service
    • 2 priority queues on all switch ports
    • Traffic classification
- Port-based priority- IEEE 802.1p-based priority- IP TOS / DSCP-based priority- TCP / UDP port-based QoS
  • Strict priority and Weighted Round Robin (WRR) CoS policies

Multicast
  • Supports IGMP Snooping v1 and v2 (excluding IGMP Query feature)

Security
  • Physical port to MAC address binding
  • TCP/UDP port number filter: Forwarding or discarding typical network applications
  • Port mirroring to monitor the incoming or outgoing traffic on a particular port

Management
    • Switch Management Interfaces
- Web switch management- SNMP v1 switch management
  • Firmware upload/download via HTTP
  • Hardware reset button for system reboot or resetting to factory default
