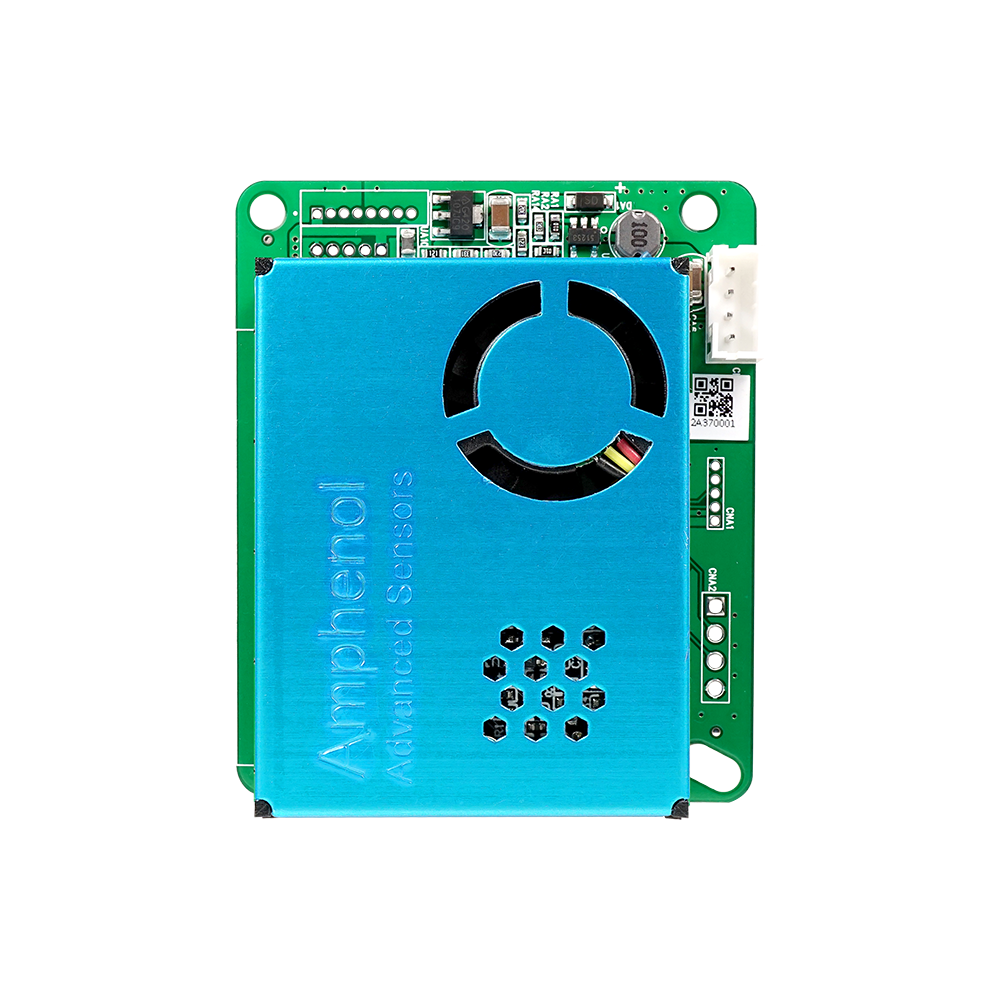

IAGM2

alvasta-tech.com / Industrial / Innodisk / Air Sensor / Air Sensor Module / IAGM2 /

IAGM1

Air Sensor Module

Particulate Matter Sensor Module

Supports

High-precision PM2.5 / PM10 detection
Seamless integration via I²C communication protocol, plug-and-play support

Features

Fast response and recovery time
Low power consumption with high efficiency
Operates reliably in temperatures from -10°C to 50°C and humidity levels between 15% and 90%
Durable and maintenance-free operation

Download Datasheet

BORN FOR SUPERIOR PERFORMANCE

The IAGM2 is a digital sensor designed for accurate particulate matter (PM2.5, PM10) detection. It is ideal for applications such as indoor air quality monitoring, outdoor pollution tracking, and wireless sensor networks, providing precise data on particulate matter concentration at the installation site. Built on proven, maintenance-free technology, the IAGM2 delivers high performance and reliability for long-term use.

SPECIFICATIONS

Model Name	IAGM2
Detection	PM2.5 / PM10
Principle	Optical Scattering (Laser)
Measurement Range (?g/m3)	0 ~ 1000
Resolution (?g/m3)	1
Accuracy (ppm)	±10±10% of Reading
Response Time (T90) (sec)	<10
Operation Temperature	-10°C ~ 50°C (Ta)
Operation Humidity (%RH)	15 ~ 90
Expected Operating Life	3 Years
Power Supply (V)	4.75 ~ 5.25
Power Consumption (mW)	110
Interface	I²C
Dimension (L x W x H/mm)	58 x 48 x 15.5

ORDER INFORMATION

P/N	Description
EA3-2AAS2M0M006A2	IAGM2 PM Sensor Module

For more information, please contact our support.
