IAGVOC

Air Sensor Module

TVOC Sensor Module

Features

  • Rapid response and recovery time
  • High stability & long lifespan
  • Cost efficiency with high performance
  • Hassle-free :
    • On-chip data processing
    • No need for external libraries
    • No impact on MCU

Download Datasheet

BORN FOR SUPERIOR PERFORMANCE

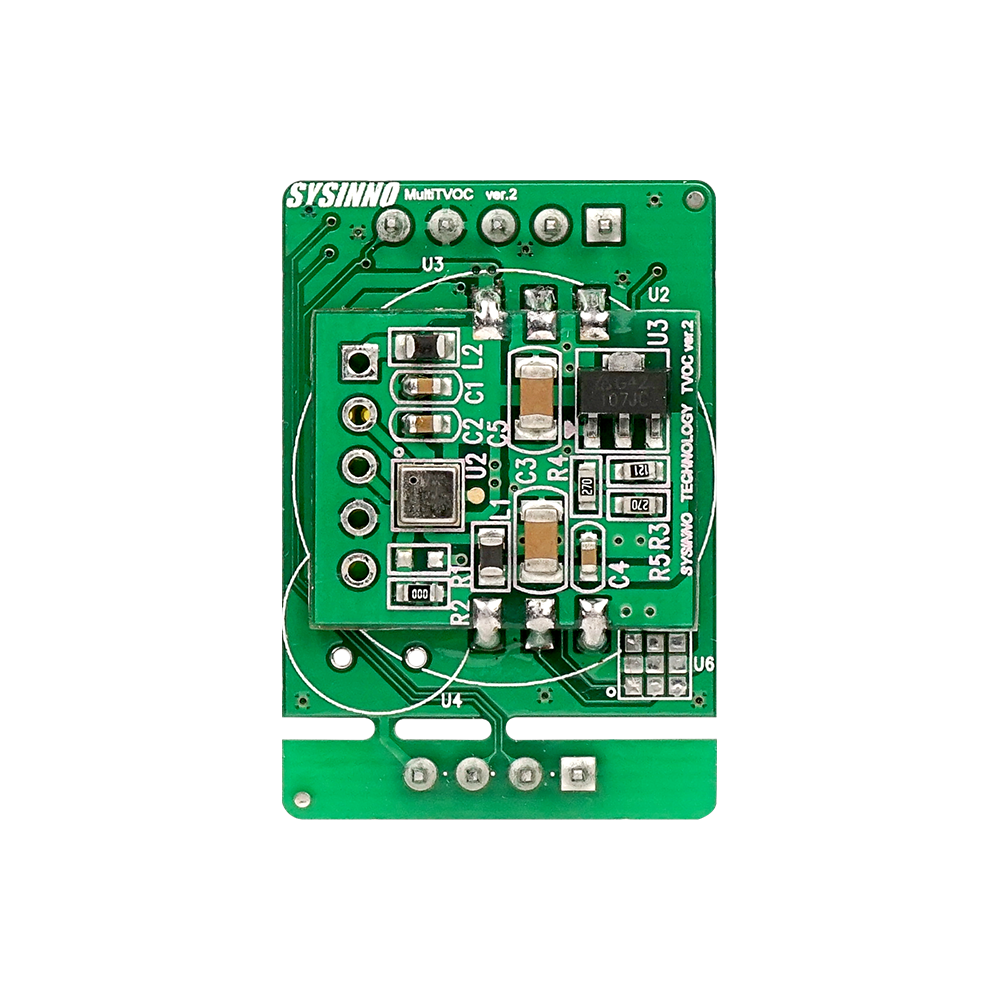

IAGVOC is a digital total volatile organic compounds (TVOC) gas sensor designed for indoor air quality monitoring, security applications, or wireless sensor networks to detect TVOC concentrations near the installation site. This sensor features proven, maintenance-free technology and is engineered for high performance and reliability.


SPECIFICATIONS

Model Name

IAGVOC

Detection

Total Volatile Organic Compounds (TVOC)

Principle

MEMS

Measurement Range (ppm)

0 ~ 60

Resolution (ppm)

0.01

Accuracy (ppm)

±0.1±10% of Reading

Response Time (T90) (sec)

<10

Operation Temperature

-10°C ~ 50°C (Ta)

Operation Humidity (%RH)

15 ~ 90

Expected Operating Life

1 Year

Power Supply (V)

3.1 ~ 3.5

Power Consumption (mW)

<100

Interface

I²C

Dimension (L x W x H/mm)

32 x 21 x 7


ORDER INFORMATION

P/N

Description

EA3-2AASMM20I12A0

IAGVOC TVOC Sensor Module


For more information, please contact our support.
