Industrial Flat-type Ethernet

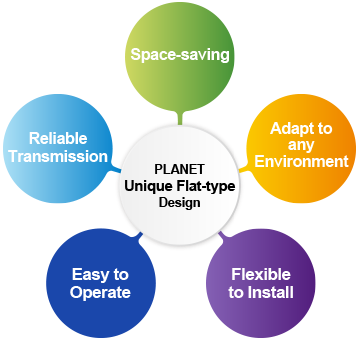

Unique Flat-type Design

Perfect IP Network Deployment for Buildings and Factories
To facilitate the network deployment in any space-limited locations like wall enclosure or electric box
found in buildings or outdoors, PLANET has developed its unique industrial Flat-type Ethernet design
to cater to the demand for space-saving network transmission.

PLANET Flat-type Ethernet Switches and Routers nicely fit in with any network infrastructures given their
compact size. They are best for all buildings and factories where harsh temperatures ranging from -20

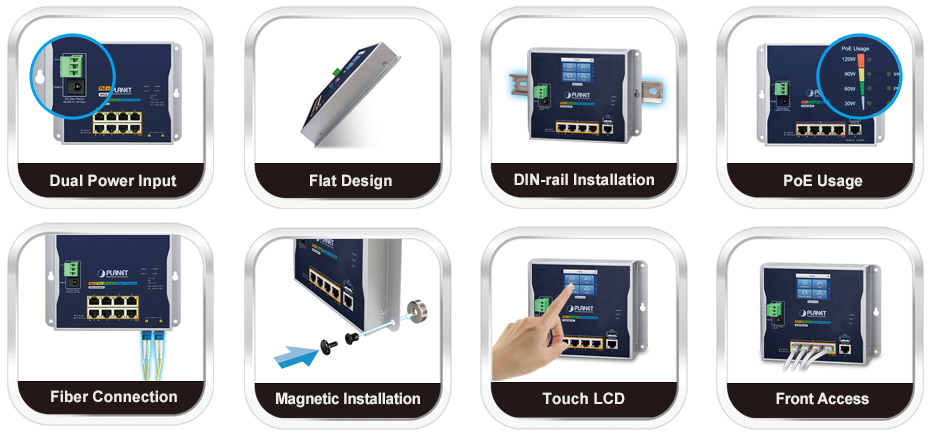

to 70 degrees Celsius can be experienced. They can be installed by wall, DIN-rail or magnetic mounting.
The Front Access design makes the installation, cable wiring, LED monitoring and maintenance very
easy. The reinforced cybersecurity protection, rapid recovery function and high-speed data
transmission reliably enhance the communication performance. PLANET Industrial Flat-type Ethernet Solution makes it easy to turn facilities into a network automation environment.


PLANET Industrial Flat-type Ethernet Solution covers products such as Flat-type Touch LCD Managed Switches, Flat-type Managed Switches and Flat-type Smart Routers.

• Flat-type Touch LCD Managed Switch

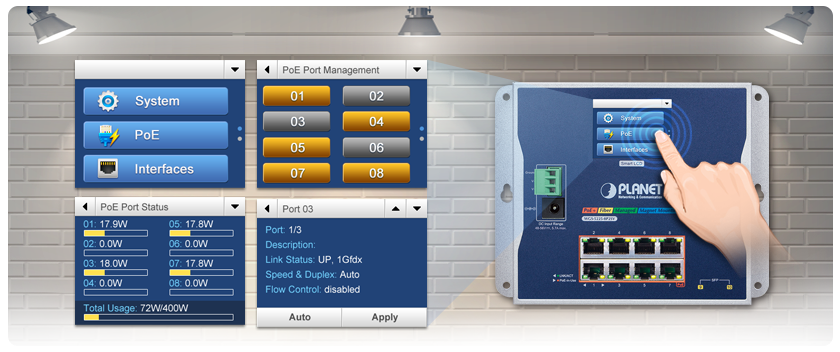

With the intuitive Touch LCD Screen, the administrators can easily diagnose onsite problems to enhance the efficiency of network management or troubleshooting.

  • User-friendly 2.4-inch Touch Color LCD Display
    » Port management
    » Port status
    » PoE port/PD management (WGS-5225-8P2SV)
    » Cable diagnostic
  • 95W 802.3bt PoE++ with L2+/L4 Gigabit switching and security (WGS-5225-8UP2SV)
  • 802.3at PoE+ with intelligent PoE management (WGS-5225-8P2SV)
  • Supports Modbus TCP/IP Protocol

• Flat-type Managed/Unmanaged Switch

To meet the different demands of customers, PLANET provides 3 types of Flat-type switches. PLANET Industrial managed switches offer a comprehensive Layer 2 to Layer 4 Access Control List (ACL). The switches can restrict network access by denying packets based on source and destination IP address, TCP/UDP ports or defined typical network applications.

• Flat-type Smart Router

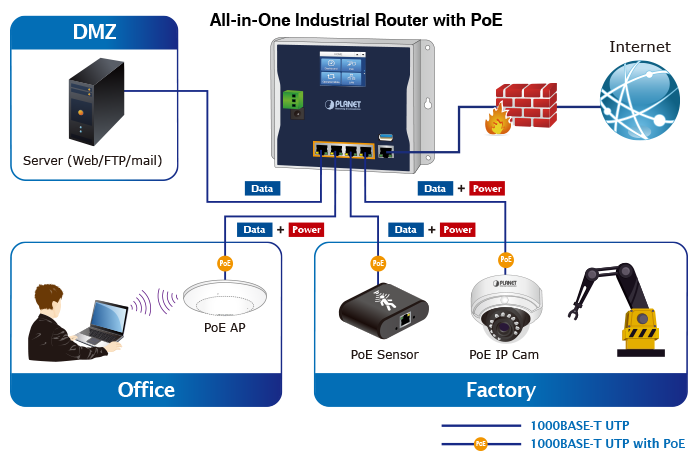

The slim-size all-in-one Smart Router Solution, featuring 4-port LAN and 1-port WAN 1G Gigabit Ethernet, offers Layer 3 dynamic IP (DHCP client), static IP, PPPoE, L2TP, PPTP, and intelligent Layer 2 and Layer 4 management functions to ideally meet the security demands of IoT, IP surveillance and wireless LAN.

  • IPv6 and SNMP management support
  • Wizard design and PLANET DDNS support
  • Firewall with 802.1Q VLAN security
  • Hardware NAT
