IS-DF102-F Series

Key Features Rugged design, compact enclosure 59x36x49mm(LxWxD) Layer 2 Line-Speed Switching Fabric, non-blocking (Switch mode) Wide range power input, 18V-36VAC/12V-58VDC/ or DC Jack socket Link Fault Pass through (LFP) function Supports switch model and converter mode. Surge protection diodes on power input. ESD protection diodes on RJ-45 port Support Far End Fault function on FX port. Provides increased Noise Immunity -40°C to 75°C operating temperature

IS-DF102-F Series

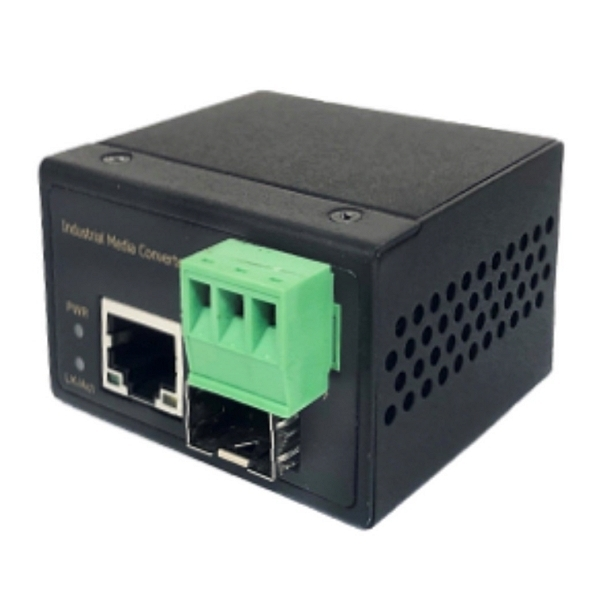

Compact size media converter, 10/100BASE-TX to 100BASE-FX

The IS-DF102 Series is a true mini and rugged Fast Ethernet to fiber Industrial media converter designed for where critical but space-limited applications, and can be powered by wide range of AC, DC power adapter. With its compact and easy to use design, the IS-DF102 Series can also be installed on Din-Rail or be wallmounted. As the ideal unit for IP surveillance, traffic monitoring and Security application, the IS-DF102 Series also works great in extreme environments with its operating temperature ranges from -40°C to 75°C for extending an existing network.
