M.2 (P110) 4TG2-P

M.2

PCIe Gen4 Solution

Features

  • Up to 7,100 / 5,400 MB/s read and write performance
  • Supports temperature -40°C to 85°C with dynamic thermal throttling to maintain SSD stability
  • PLP (iCell) technology for power loss protection

Download Datasheet

BORN FOR SUPERIOR PERFORMANCE

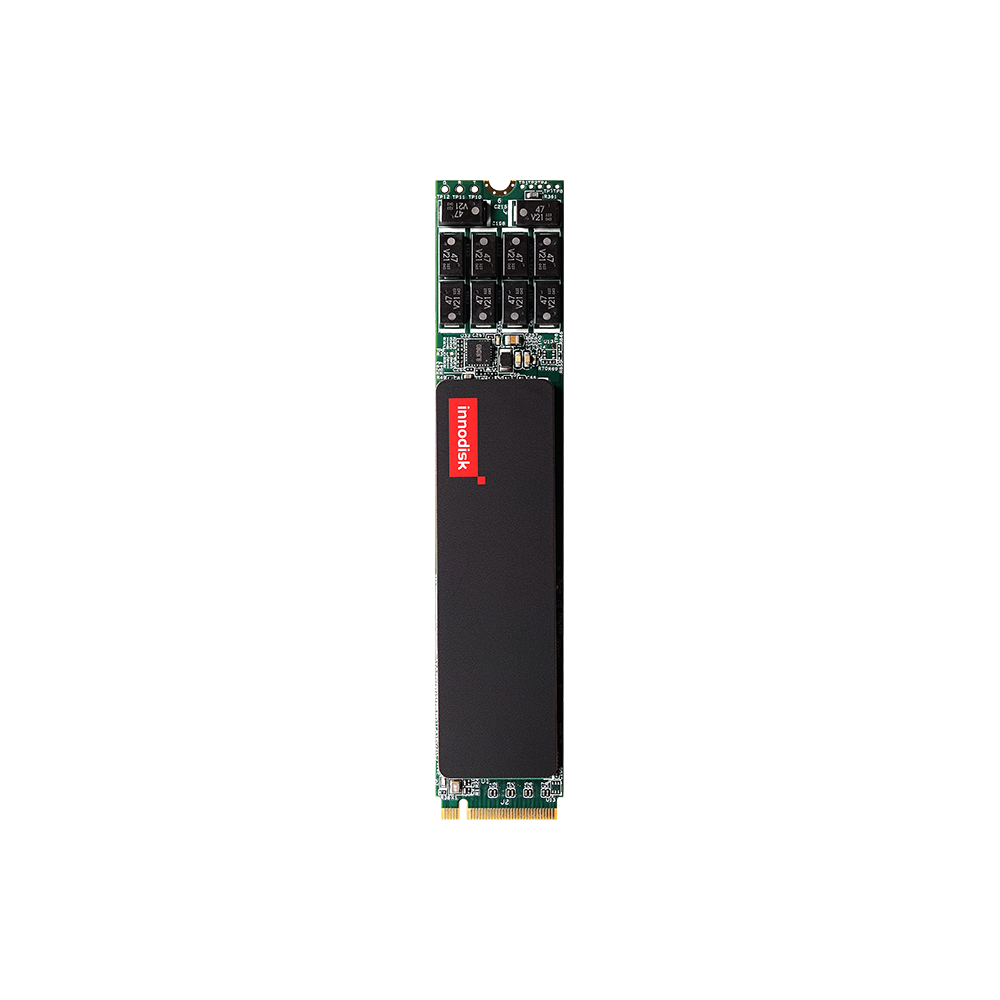

The Innodisk M.2 (P110) 4TG2-P is an NVMe SSD in the standard M.2 form factor, featuring a PCIe Gen 4 x4 interface and 3D TLC NAND Flash. Equipped with its heat-dissipation design, the M.2 (P110) 4TG2-P efficiently disperses heat generated by the ICs, ensuring stable SSD performance. It also features Die RAID protection to reduce the occurrence of bad blocks and optimize data integrity.


SPECIFICATIONS

Model Name

M.2 (P110) 4TG2-P

Flash Type

3D TLC

Interface

PCIe Gen 4 x4

Form Factor

M.2 22110 M Key

Capacity

512GB ~ 8TB

Sequential R / W (MB/sec, max.)

6,950 / 4,700

P/E Cycle

3,000

TBW (Max.)

19,886

Storage Temperature

-40°C ~ 85°C

Max. Power Consumption

10.2W

Max. Channels

8

External DRAM Buffer

?

Features

PLP (iCell), AES, TCG Opal 2.0, S.M.A.R.T.

Dimension (W x L x H/mm)

Pure M.2 : 22.0 x 110.0 x 2.87 S/T with heat-spreading copper layer : 22.0 x 110.0 x 3.3 W/T with heat sink : 25.0 x 110.0 x 14.45

Vibration

20G@[7 ~ 2000Hz]

Shock

1500G@0.5ms

MTBF

>3 million hours

Warranty

3 Years


ORDER INFORMATION

Operating Temperature

Standrad Grade

(0°C ~ 70°C)

Industrial Grade

(-40°C ~ 85°C)

512GB

DGM21-C12DP1KCBEFP

DGM21-C12DP1KWBEFPH

1TB

DGM21-01TDP1KCBEFP

DGM21-01TDP1KWBEFPH

2TB

DGM21-02TDP1KCBEFP

DGM21-02TDP1KWBEFPH

4TB

DGM21-04TDP1KCBEFP

DGM21-04TDP1KWBEFPH

8TB

DGM21-08TDP1KCCEF

DGM21-08TDP1KWCEFH

For TCG Opal function, the PN Code 10th ~12th will be DP2.


For more information, please contact our support.
