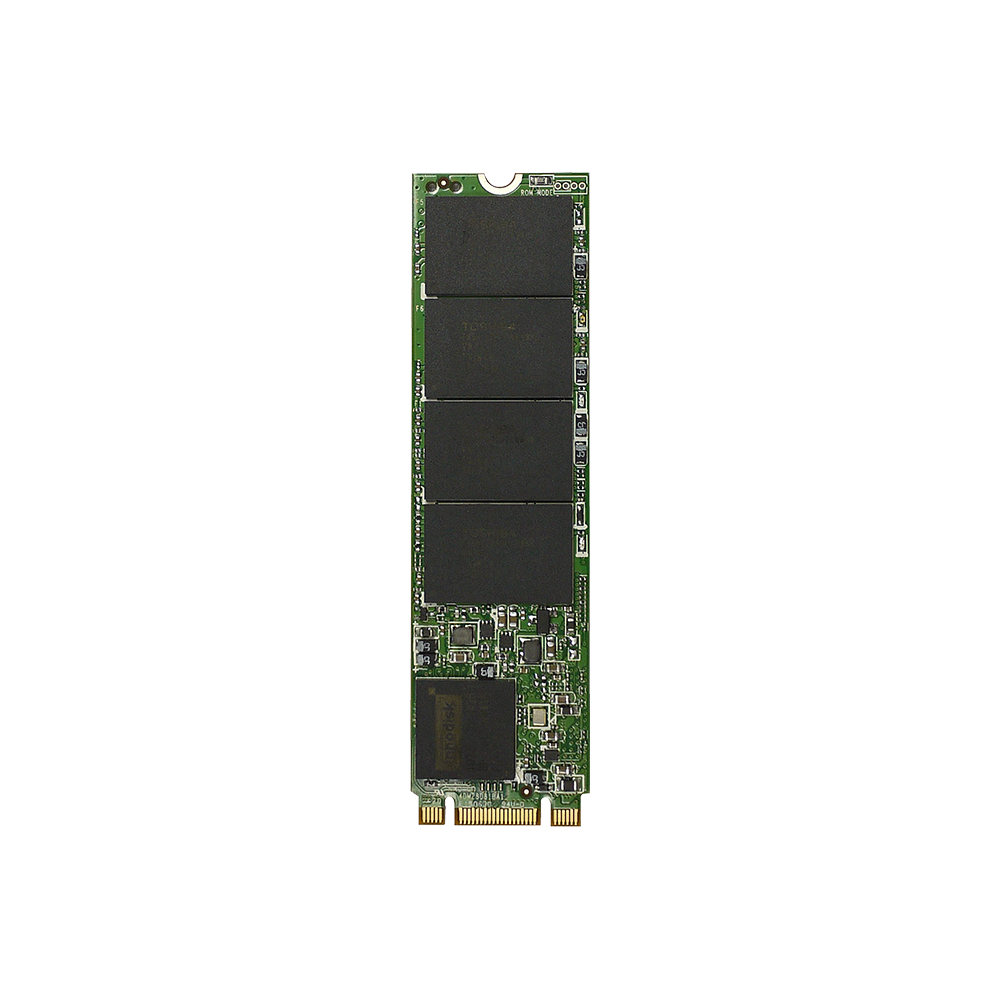

M.2 (S80) 3IS2-P

M.2

32GB ~ 512GB

Features

SATA III solution for Server Boot-Up Drive
Cost-effective Flash with iSLC (MLC)
iSMART disk health monitoring
Intelligent error recovery system
High IOPS to enhance boot up timing
Zero mechanical interference
iData Guard for abnormal power failure
Supports wide temperature from -40°C to 85°C

BORN FOR SUPERIOR PERFORMANCE

Innodisk M.2 (S80) 3IS2-P is designed as the standard M.2 form factor with SATA interface, and supports SATA III standard (6.0Gb/s) with excellent performance. The form factor refers to the M.2 (NGFF) specification which established by JEDEC.

Innodisk M.2 (S80) 3IS2-P is designed for server field. It effectively reduces the booting time of operation system and has less power consumption compared to hard disk drive (HDD). The great benefit of M.2 (S80) 3IS2-P is to be configured as a SATA boot device with no requirement on additional driver and without using a drive bay, making it perfect for server applications.

SPECIFICATIONS

Model Name	M.2 (S80) 3IS2-P
Flash Type	iSLC (MLC)
Interface	SATA III 6.0 Gb/s
Form Factor	M.2 2280 B+M Key
Capacity	32GB ~ 512GB
Sequential R / W (MB/sec, max.)	560 / 450
P/E Cycle	20,000
TBW (Max.)	5,000
Storage Temperature	-55°C ~ 95°C
Max. Power Consumption	1.5W (3.3V x 450mA)
Max. Channels	4
External DRAM Buffer	Y
Feature	AES, TCG Opal 2.0, H/W Write Protect, S.M.A.R.T.
Dimension (W x L x H/mm)	22.0 x 80.0 x 3.5
Vibration	20G@[7 ~ 2000Hz]
Shock	1500G@0.5ms
MTBF	>3 million hours
Warranty	5 Years

ORDER INFORMATION

Operating Temperature	Standard Grade (0°C ~ 70°C)	Industrial Grade (-40°C ~ 85°C)
32GB	DSM28-32GD813CAQC	DSM28-32GD813WAQC
64GB	DSM28-64GD813CAQC	DSM28-64GD813WAQC
128GB	DSM28-A28D813CAQC	DSM28-A28D813WAQC
256GB	DSM28-B56D813CAQC	DSM28-B56D813WAQC
512GB	DSM28-C12D813CAQC	DSM28-C12D813WAQC

For more information, please contact our support.
