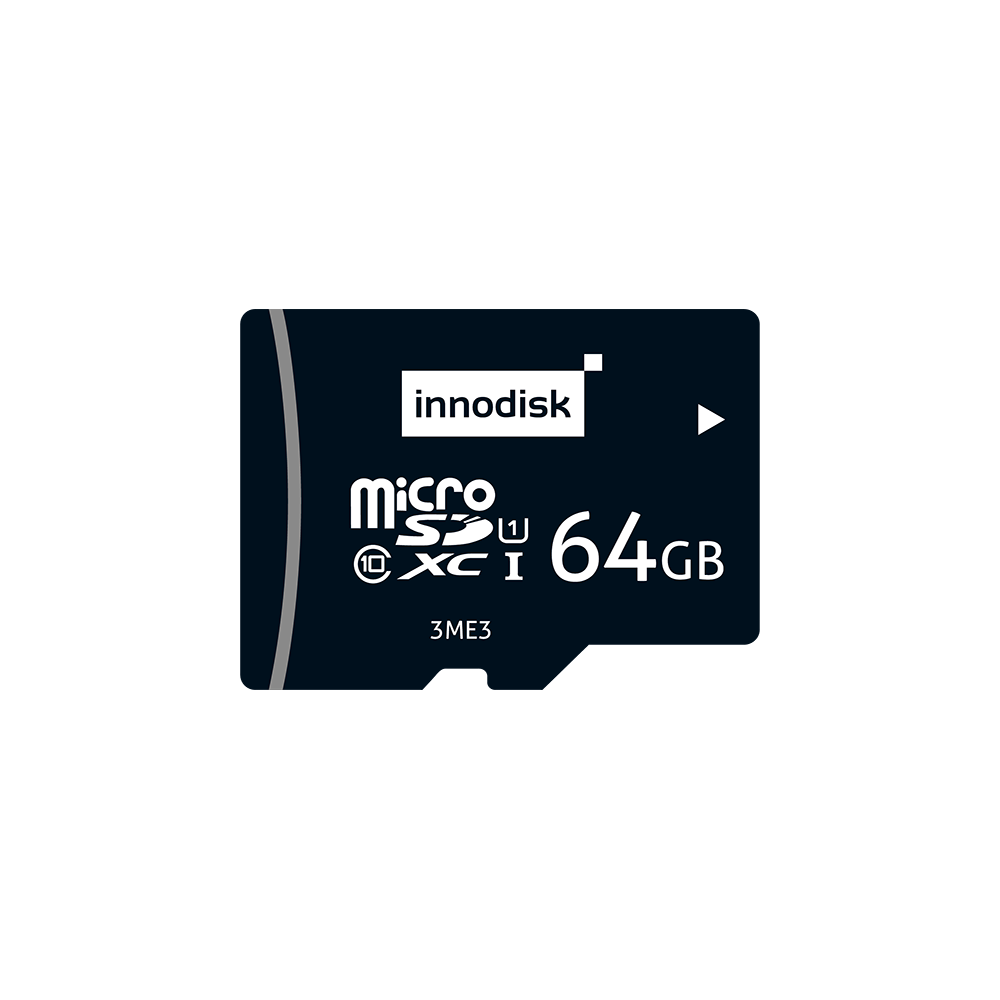

MicroSD Card 3ME3

SD Card & MicroSD Card

8GB ~ 64GB

Features

  • SD 3.0 interface
  • Support Class 10 with UHS-I
  • Adopt MLC NAND flash
  • High performance
  • Targeted for portable and stationary applications
  • S.M.A.R.T. function supported

BORN FOR SUPERIOR PERFORMANCE

Innodisk MicroSD 3ME3 series, supporting class 10 with UHS-I, are specifically designed for industrial PC and embedded applications. The 3.0 series SD card has the latest firmware architecture and Flash algorithms, including superior wear leveling and read disturb management, ensuring the highest reliability and endurance.

Innodisk MicroSD 3ME3 series provides a wide range of capacities from 8GB to 64GB with excellent quality MLC NAND Flash and is fully compliant with SD 3.0 and SD 2.0 specifications.

With its low power consumption and features above, the Innodisk MicroSD 3ME3 series can be applied to industrial automation, SBC (single-board computer), medical equipment, infotainment, and mobile applications.


SPECIFICATIONS

Model Name

MicroSD 3ME3

Flash Type

MLC

Interface

SD 3.0

Form Factor

MicroSD Card

Capacity

8GB ~ 64GB

Sequential R / W (MB/sec, max.)

75 / 31

P/E Cycle

3,000

TBW (Max.)

170

Storage Temperature

-40°C ~ 85°C

Max. Power Consumption

0.5W

Max. Channels

1

External DRAM Buffer

N

Features

S.M.A.R.T.

Dimension (W x L x H/mm)

11.0 x 15.0 x 1.0

Vibration

20G@[7 ~ 2000Hz]

Shock

1500G@0.5ms

MTBF

>3 million hours

Warranty

2 Years


ORDER INFORMATION

Operating Temperature

Extended Grade

(-25°C ~ 85°C)

Industrial Grade

(-40°C ~ 85°C)

8GB

DESDM-08GS02SE1SK

DESDM-08GS02SW1SK

16GB

DESDM-16GS02SE1SK

DESDM-16GS02SW1SK

32GB

DESDM-32GS02SE1SK

DESDM-32GS02SW1SK

64GB

DESDM-64GS02SE1SK

DESDM-64GS02SW1SK


For more information, please contact our support.
