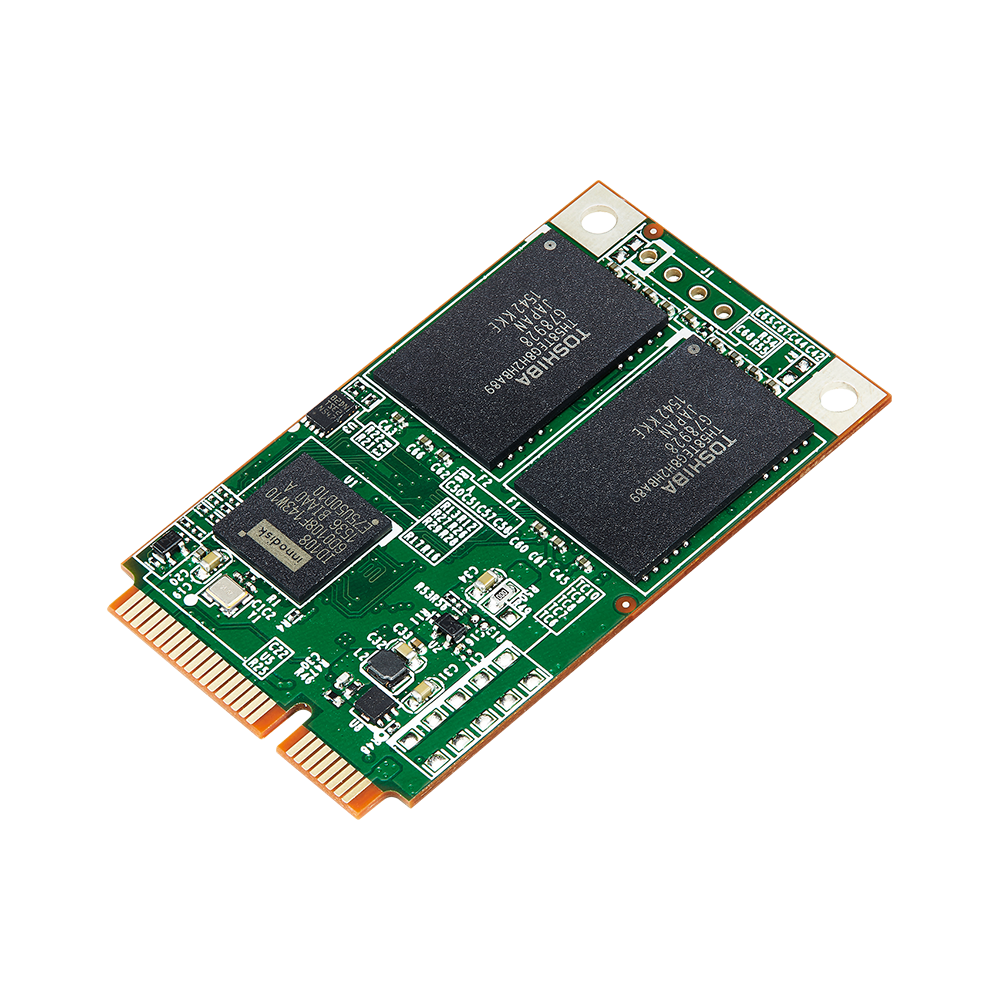

mSATA 3SE3

mSATA

4GB ~ 128GB

Features

  • SATA 6.0Gb/s interface
  • iSMART disk health monitoring
  • Intelligent error recovery system
  • Excellent data transfer speed
  • Zero mechanical interference
  • Anti-vibration mechanical design
  • JEDEC standard MO-300 dimension
  • Supports wide temperature from -40°C to 85°C

BORN FOR SUPERIOR PERFORMANCE

Innodisk mSATA 3SE3 is designed with mSATA form factor by MO-300 / MO-300B, which is established by JEDEC, and supports the SATA III standard (6.0 Gb/s) with excellent performance. Regarding mechanical interference, Innodisk mSATA 3SE3 absolutely replaces the traditional hard disk and makes personal computers, in any field, smaller and more manageable.

Innodisk mSATA 3SE3 effectively reduces the booting time of the operation system, and the power consumption is less than that of a hard disk drive (HDD). It complies with ATA protocol; no additional drives are required, and it can be configured as a boot device or data storage device.


SPECIFICATIONS

Model Name

mSATA 3SE3

Flash Type

SLC

Interface

SATA III 6.0 Gb/s

Form Factor

MO-300

Capacity

4GB ~ 128GB

Sequential R / W (MB/sec, max.)

385 / 225

P/E Cycle

60,000

TBW (Max.)

768

Storage Temperature

-55°C ~ 95°C

Max. Power Consumption

0.5W

Max. Channels

4

External DRAM Buffer

N

Feature

S.M.A.R.T.

Dimension (W x L x H/mm)

29.8 x 50.8 x 3.4

Vibration

20G@[7 ~ 2000Hz]

Shock

1500G@0.5ms

MTBF

>3 million hours

Warranty

5 Years


ORDER INFORMATION

Operating Temperature

Standard Grade

(0°C ~ 70°C)

Industrial Grade

(-40°C ~ 85°C)

4GB

DEMSR-04GD09AC1SB

DEMSR-04GD09AW1SB

8GB

DEMSR-08GD09AC1DB

DEMSR-08GD09AW1DB

16GB

DEMSR-16GD08AC1QB

DEMSR-16GD08AW1QB

32GB

DEMSR-32GD08SCAQB

DEMSR-32GD08SWAQB

64GB

DEMSR-64GD08SCAQB

DEMSR-64GD08SWAQB

128GB

DEMSR-A28D08SCAQB

DEMSR-A28D08SWAQB


For more information, please contact our support.
