Rack Control and Remote Management

All-in-One Control, One-for-All Management

The LCD KVM Series integrates a high-resolution LCD display, keyboard, and touchpad with advanced KVM switch technology — all within a single rackmount console. Designed for modern data centers and server rooms, these solutions provide direct, space-efficient access to multiple servers from one compact interface. This all-in-one design minimizes hardware footprint, enhances operational efficiency, and simplifies centralized server management.

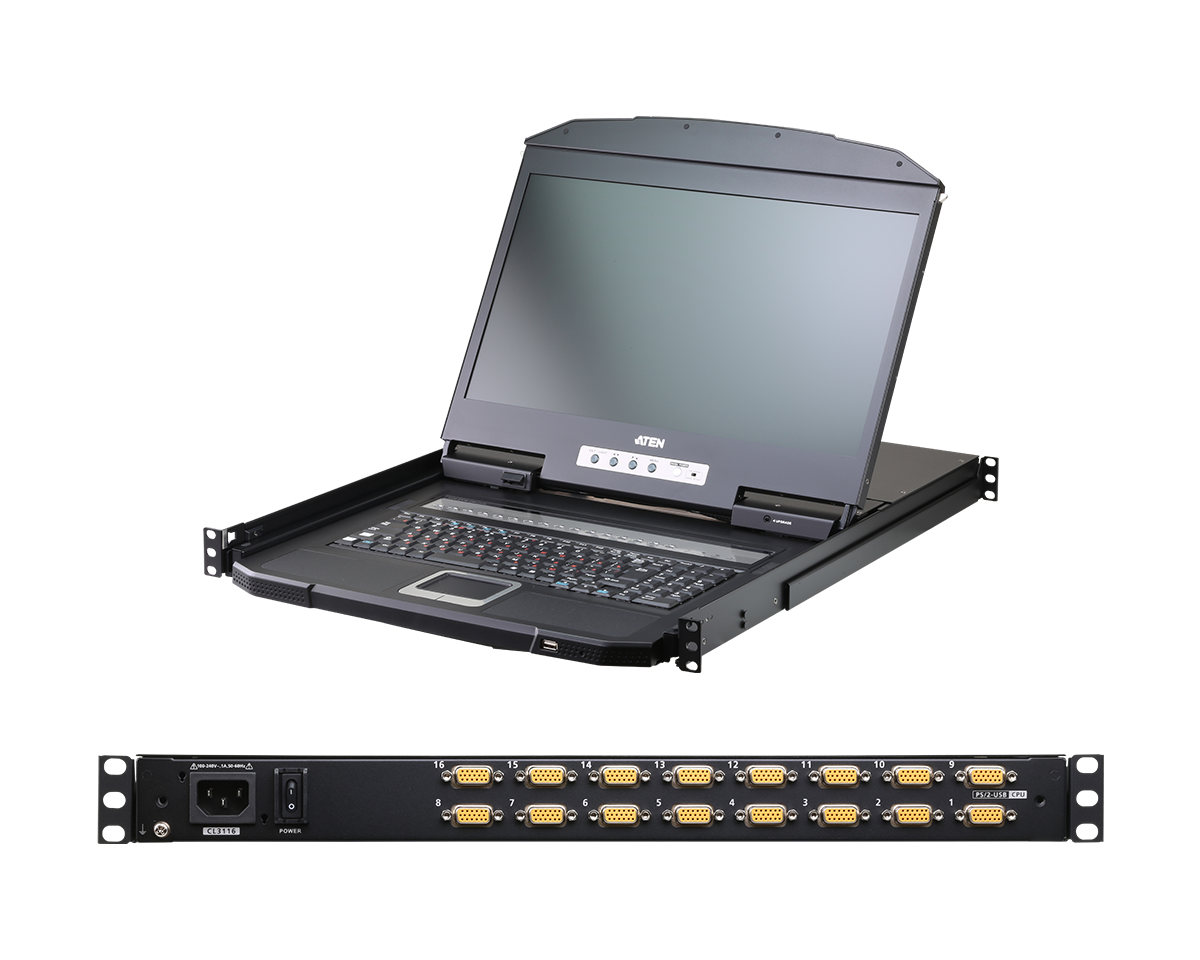

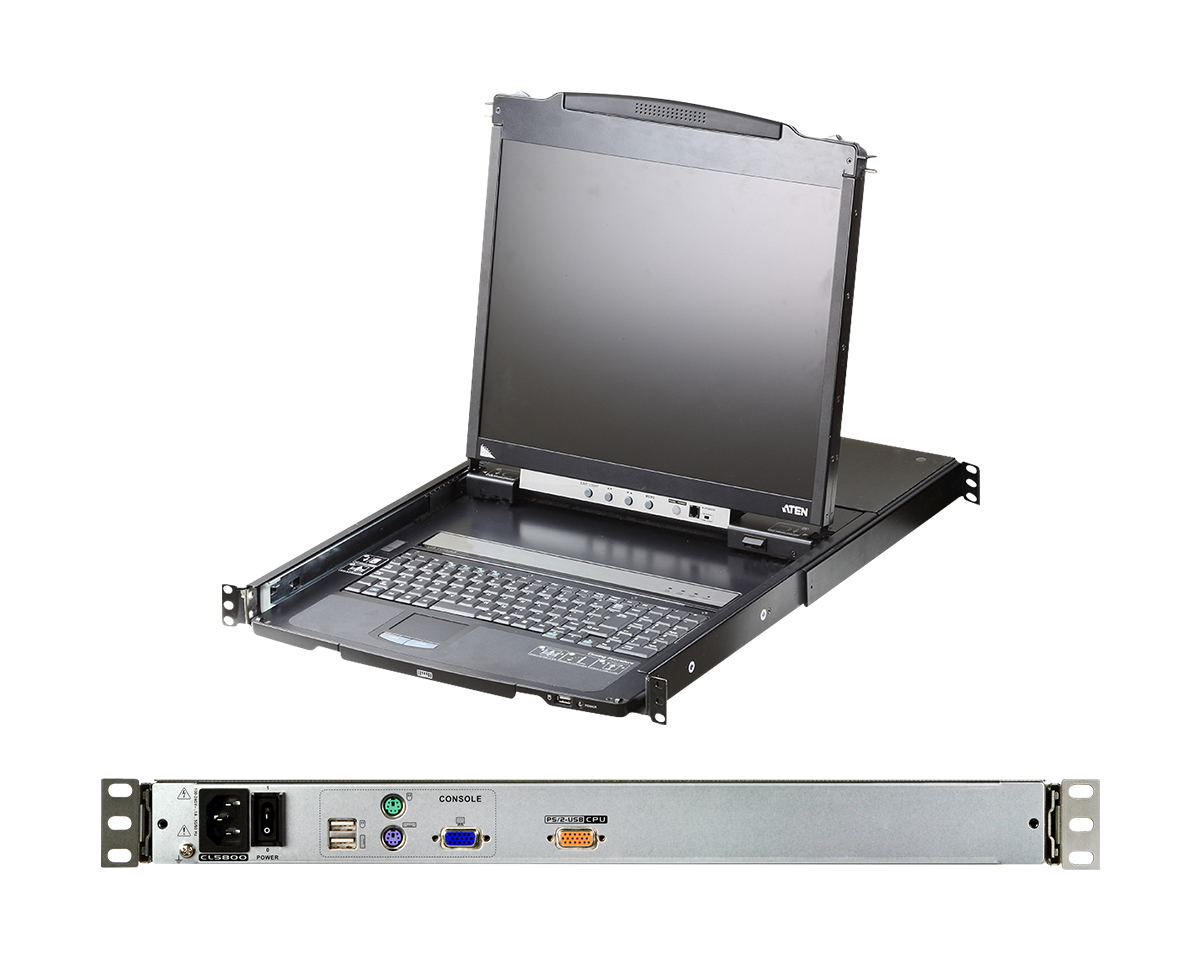

LCD Console Single-port connection to 1 KVM switch or a server directly. Integrating an LCD display, keyboard, and touchpad into a single 1U rackmount unit, an LCD KVM console serves as the front end for standard rack KVM switches, providing convenient at-the-rack access to connected systems.	LCD KVM Switch Multi-port connection to 4/8/16 servers directly. Integrating an LCD display, keyboard, touchpad, and KVM switch into a single 1U rackmount unit, an LCD KVM switch provides centralized IT control of multiple servers through a single, compact interface.

Special Features

Centralized Control

Short Depth Design

KVM over IP

Dual Rail

Scalability

Multi-View Monitoring

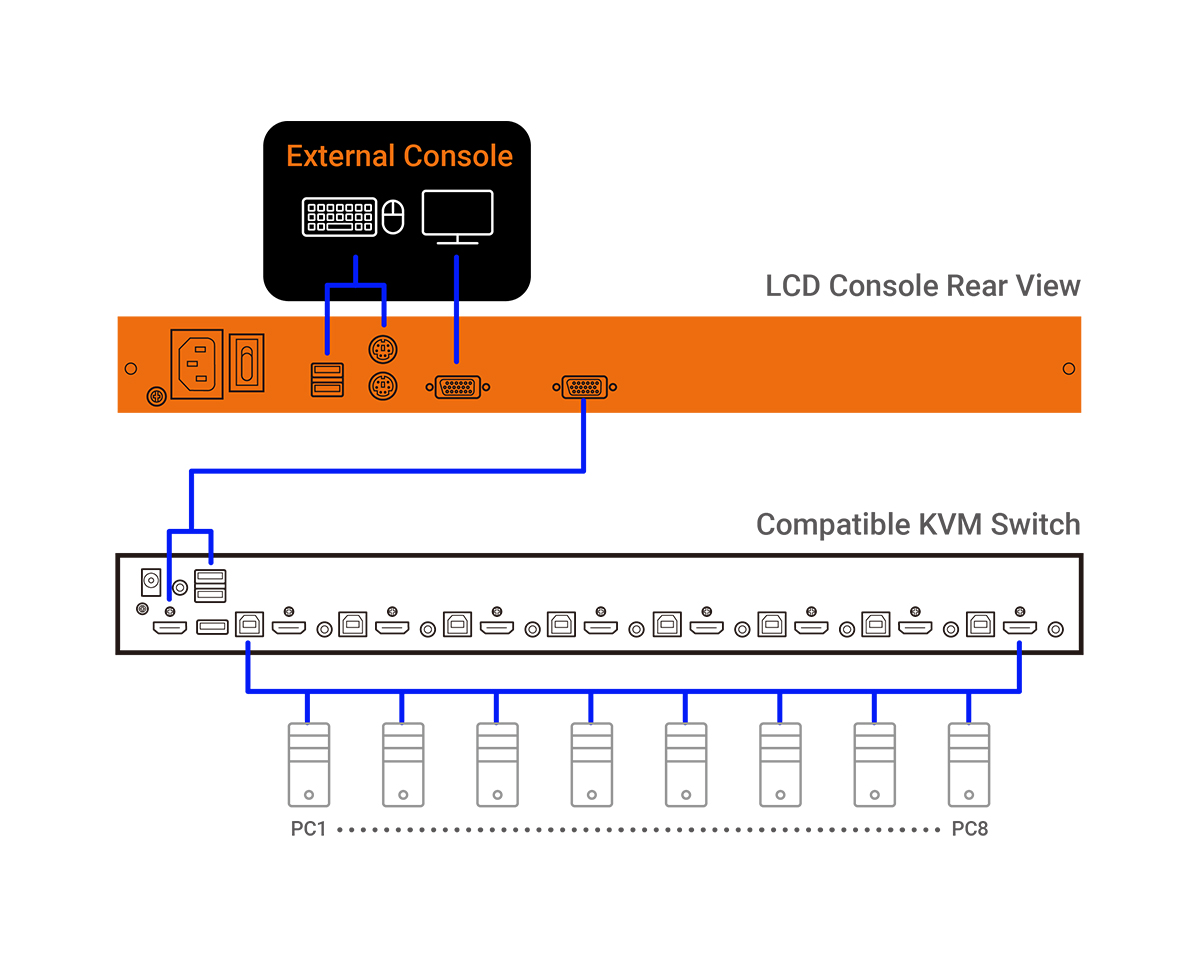

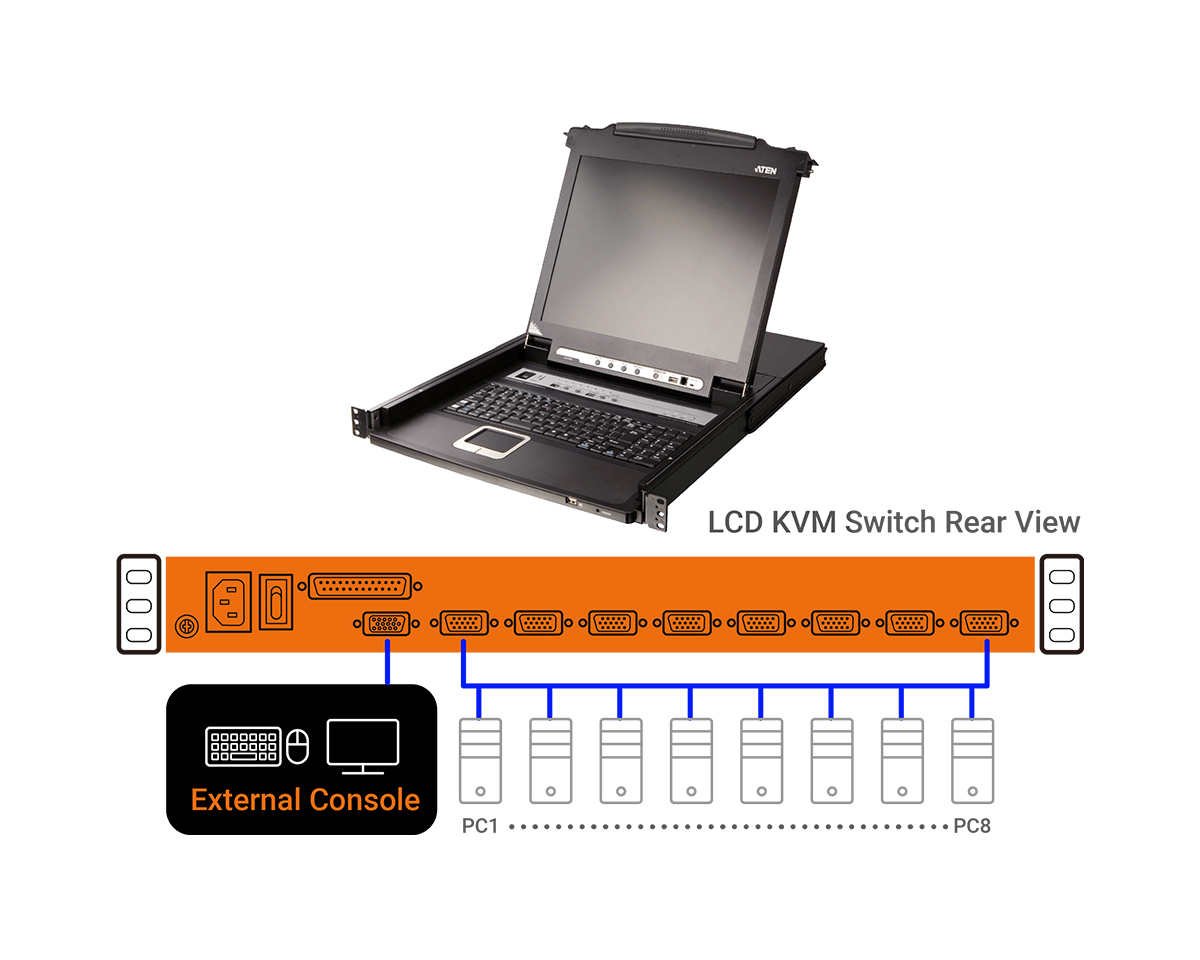

External KVM Console

Flexible Connectivity

Wide Screen

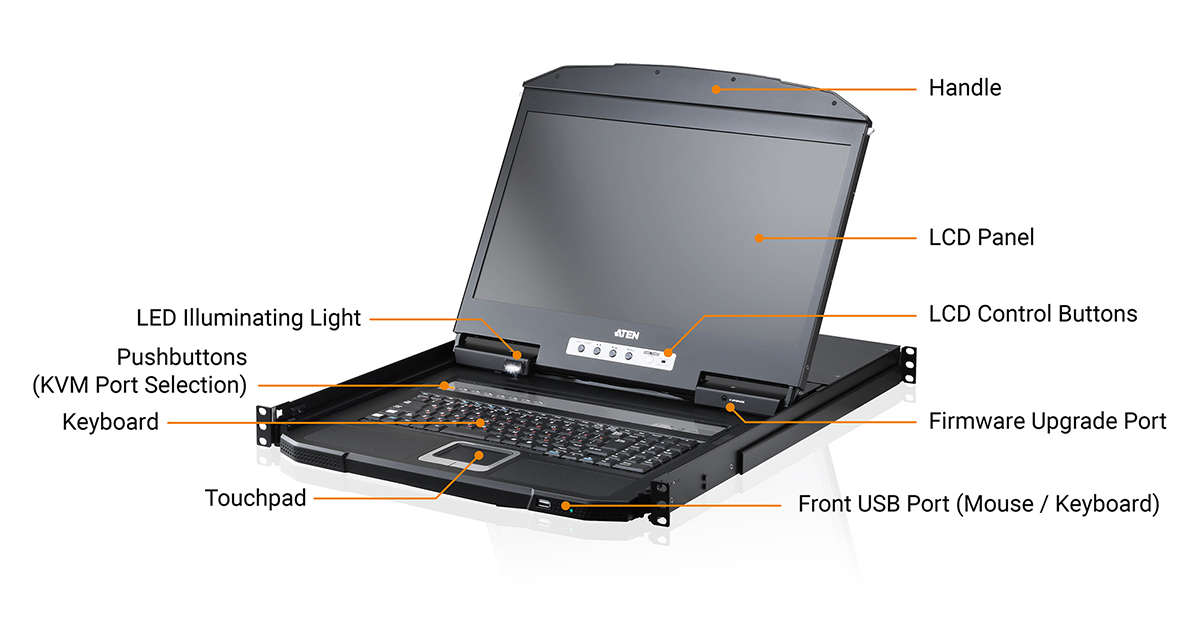

Product Anatomy

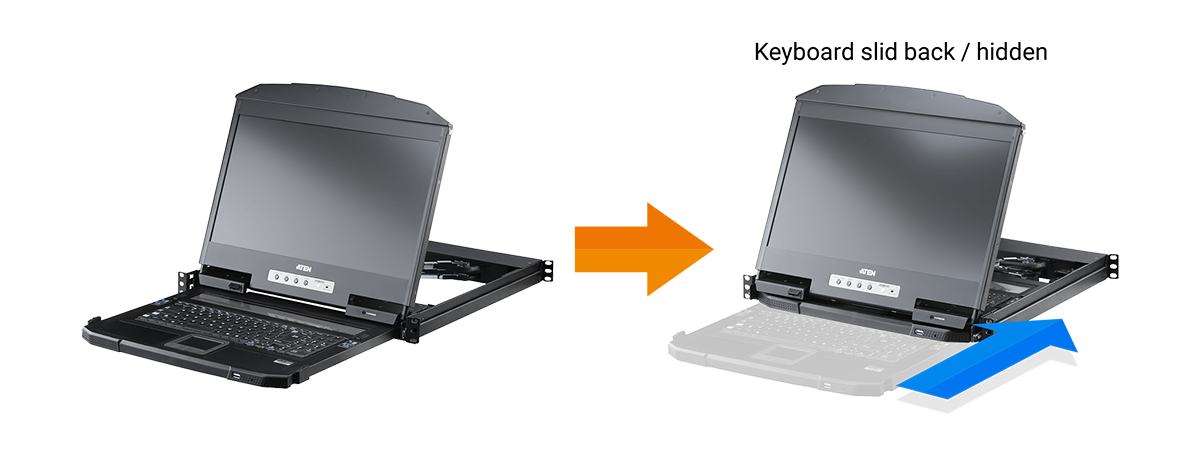

Single Rail

The single-rail design allows the LCD KVM to open and close as it is slid out or in, securing the unit within a 1U rack housing.

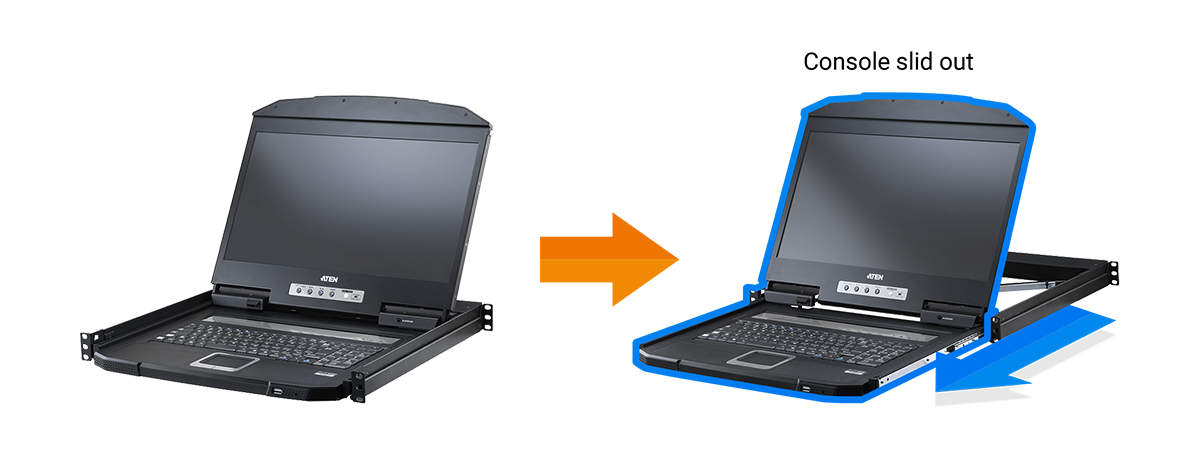

Dual Rail

The dual-rail design allows the LCD monitor and the keyboard/touchpad modules to operate independently. To maximize space efficiency, the keyboard and touchpad can be slid back and hidden when not in use, while the LCD monitor can be rotated to sit flush against the rack, allowing convenient monitoring of system activity.

Mission-Critical Performance

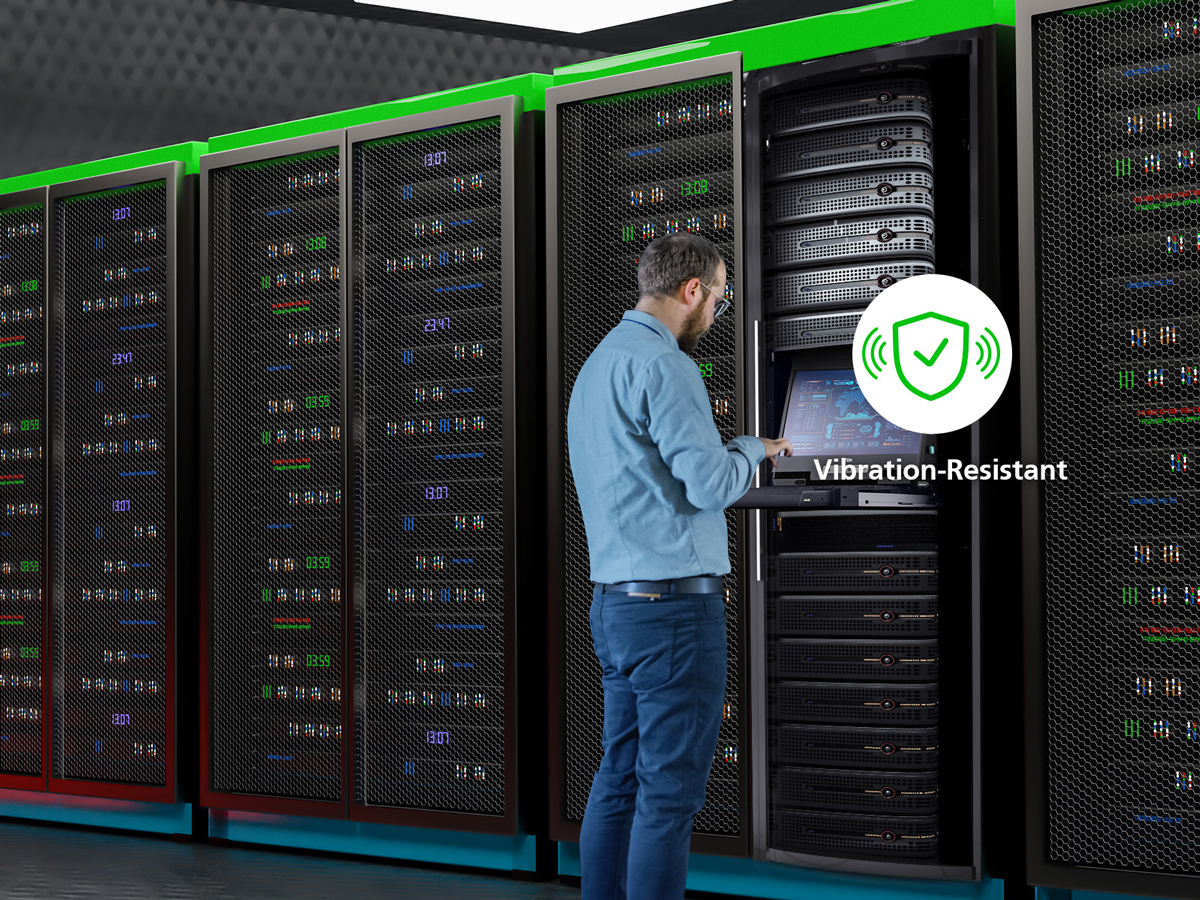

Certified Ruggedness with Vibration-Resistant Design

The CL3000N and CL3700NW LCD KVM switches are engineered to meet MIL-STD-810G (Method 514.6) standards for military-grade vibration resistance, guaranteeing uncompromised performance in extreme conditions. Whether deployed in a tactical vehicle, a maritime vessel, or a rugged industrial site, these units are engineered as ruggedized equipment designed to endure the rigors of constant vibration and transport—ensuring all connections remain stable and hardware remains intact while on the move.

Local Control Meets Global Access (KVM over IP)

In addition to at-the-rack management for immediate local control, the over IP-enabled LCD KVM switches (e.g. CL3708i, CL5716i, KL1108V, KL1516Ai, and more) can serve as powerful remote gateways, providing:
Secure BIOS-level access

Gain real-time control over connected servers over TCP/IP via LAN, WAN, or the Internet, independent of the operating system Efficient virtual media transfer
Simplify maintenance by performing OS installation and firmware updates, or mapping ISO images, folders, or physical drives from a remote computer directly to the server as if done locally.

This ensures administrators retain full control over mission-critical infrastructure to reboot, troubleshoot, and restore services anytime, from anywhere in the world—with no compromises.

Certified Ruggedness with Vibration-Resistant Design

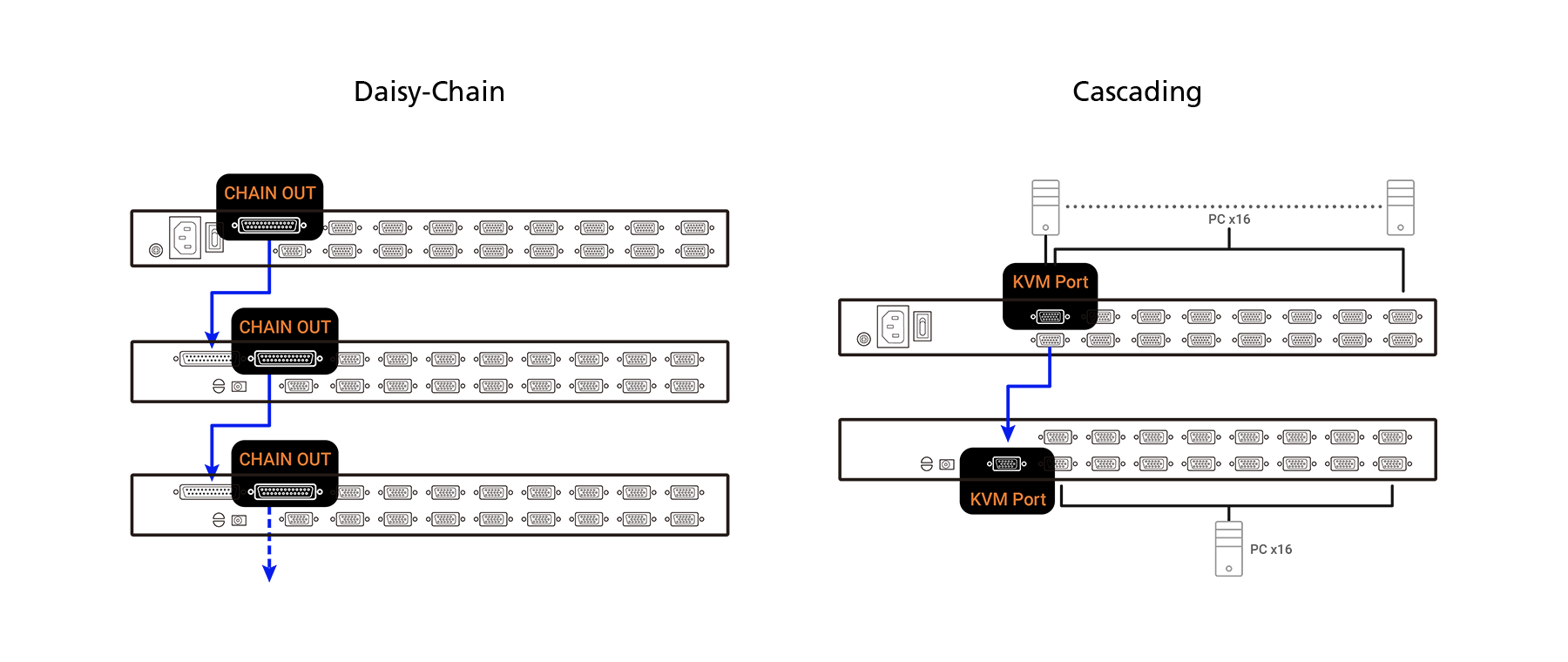

Adaptable Scalability

Deployment with LCD KVM switches is scalable through daisy-chain and cascading configurations, managing up to 512 computers from one console.
