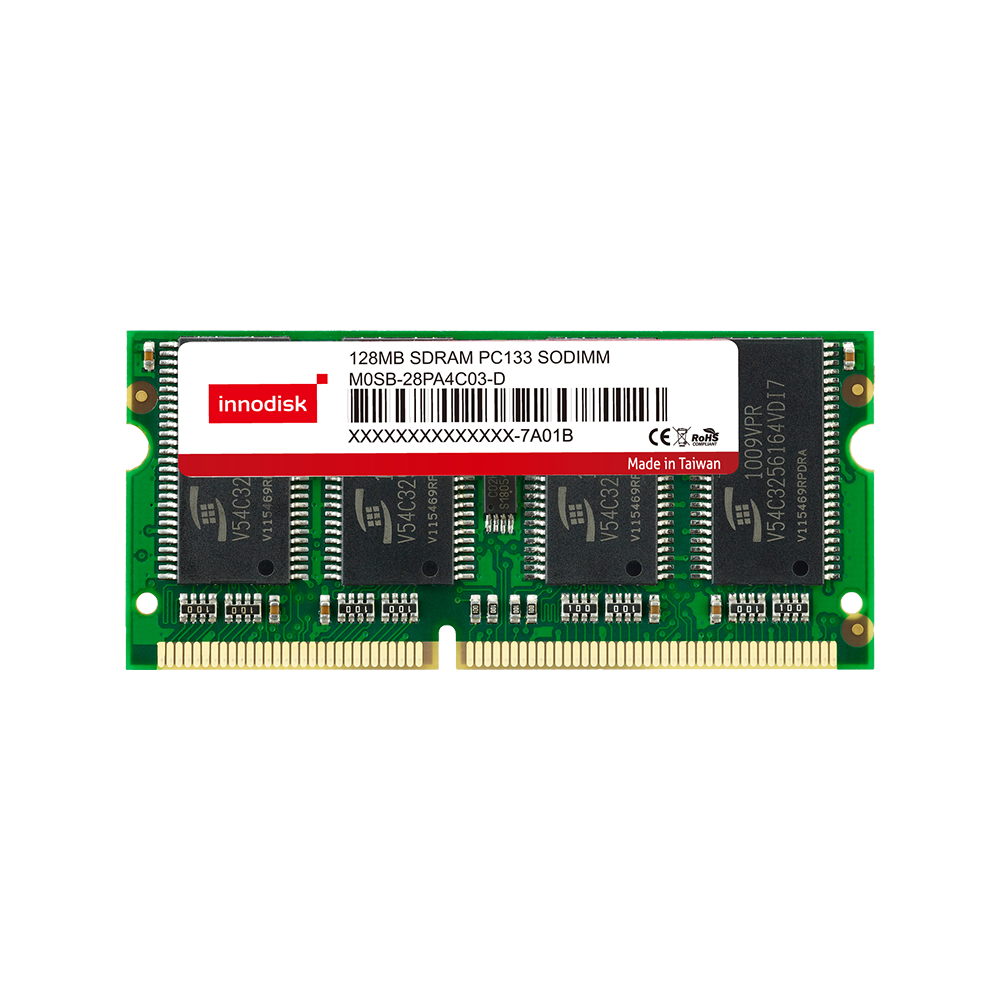

SDRAM SODIMM

SDRAM

Non-ECC Unbuffered Memory

Features

Small Outline Dual In-line Memory Module

  • Fully Tested and Optimized for Stability and Performance
  • Uses Original IC to Meet Strict Industrial Standards
  • JEDEC Standard 3.3V +/- 0.3V
  • Operating Environment : 0°C ~ 70°C
  • RoHS Compliance

BORN FOR SUPERIOR PERFORMANCE

SDRAM SODIMM (small outline) is a compact memory module that fits neatly into any embedded, surveillance and automation setup. The modules comply with all relevant JEDEC standards and are available in 128MB, 256MB, and 512MB capacities. 100MT/s and 133MT/s transfer speed modules are available.


SPECIFICATIONS

Model Name

SDRAM SODIMM

DDR Generation

SDRAM Memory

DIMM Type

SODIMM

Speed

100 MT/s, 133 MT/s

Density

128MB, 256MB, 512MB

Function

Non-ECC Unbuffered Memory

Pin Number

144pin

Bus Width

x64

Voltage

3.3V

PCB Height

1.25 Inches

Operating Temperature

0°C ~ 70°C


ORDER INFORMATION

P/N

IC Config.

Rank

Temp.

Description

M0SB-28PA4C03-J

16M x 16

1R x 16

0°C ~ 70°C

SDRAM 133 128MB SODIMM

M0SB-56PA4C03-J

16M x 16

2R x 16

0°C ~ 70°C

SDRAM 133 256MB SODIMM

M0SB-12PB6C03-J

32M x 16

2R x 16

0°C ~ 70°C

SDRAM 133 512MB SODIMM


For more information, please contact our support.
