USB Drive 3IE4

alvasta-tech.com / Industrial / Innodisk / Flash Storage / USB / USB EDC / USB Drive 3IE4 /

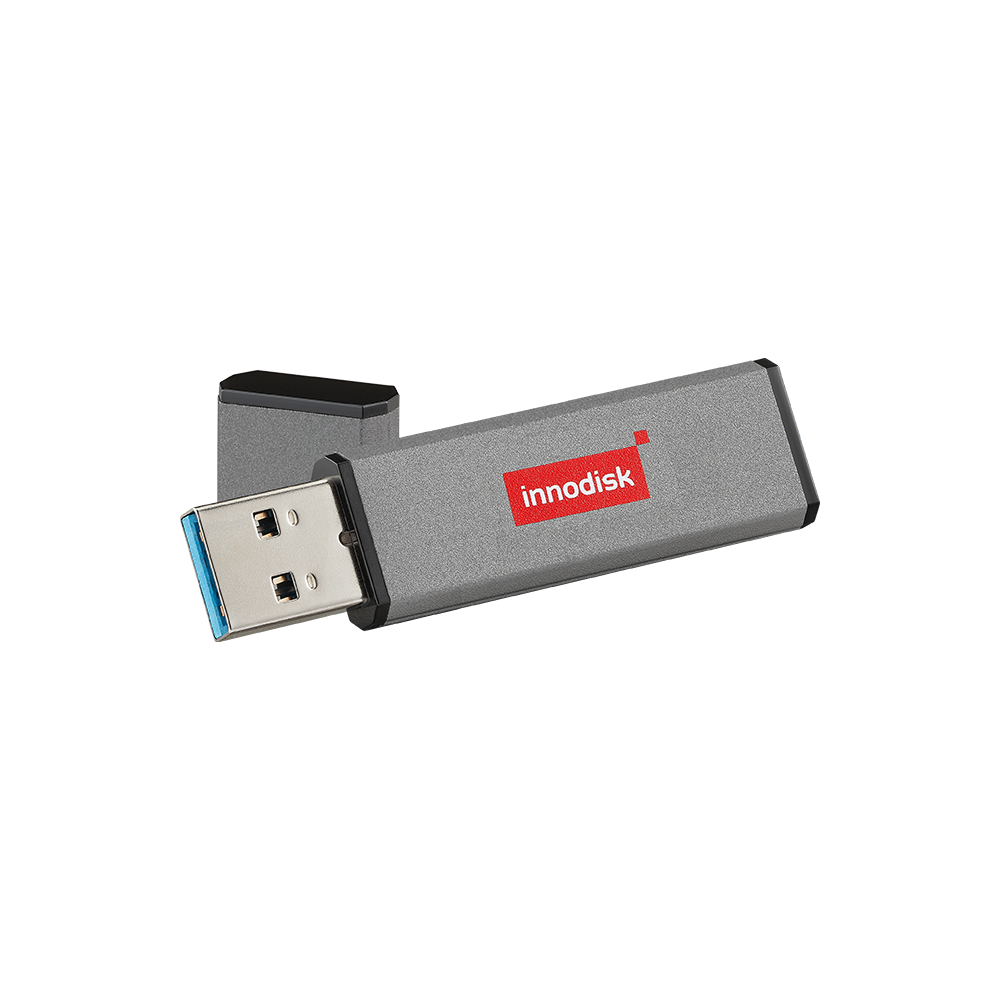

USB Drive 3IE4

USB / USB EDC

16GB ~ 128GB

Features

  • High-speed data transfer
  • Wear leveling support for enhanced durability
  • Energy-efficient with low power consumption
  • Metal housing for ESD protection
  • Connector plated with 30?” gold for reliability

BORN FOR SUPERIOR PERFORMANCE

The Innodisk USB Drive products provide high-capacity USB flash memory storage that electrically complies with a high-speed USB 3.2 Gen 1 interface and is backward compatible with USB 2.0 and 1.1. The device features an attractive small form factor. Besides, the connectivity over USB 3.2 and the NAND flash architecture provide faster data transmission. In our default setting, the USB Drive is able to be set up in “Removable Mode.”


SPECIFICATIONS

Model Name

USB Drive 3IE4

Flash Type

iSLC (3D TLC)

Interface

USB 3.0

Form Factor

USB Drive

Capacity

16GB ~ 128GB

Sequential R / W (MB/sec, max.)

330 / 125

P/E Cycle

20,000

TBW (Max.)

--

Storage Temperature

-40°C ~ 85°C

Max. Power Consumption

1.3W

Max. Channels

2

External DRAM Buffer

N

Features

S.M.A.R.T.

Dimension (W x L x H/mm)

16.6 x 61.45 x 7.6

Vibration

20G@[7 ~ 2000Hz]

Shock

1500G@0.5ms

MTBF

>3 million hours

Warranty

5 Years


ORDER INFORMATION

Operating Temperature

Standard Grade

(0°C ~ 70°C)

Industrial Grade

(-40°C ~ 85°C)

16GB

DHUA1-16GID1KCASF

DHUA1-16GID1KWASF

32GB

DHUA1-32GID1KCADF

DHUA1-32GID1KWADF

64GB

DHUA1-64GID1KCADF

DHUA1-64GID1KWADF

128GB

DHUA1-A28ID1KCADF

DHUA1-A28ID1KWADF


For more information, please contact our support.
