USB EDC Horizontal 2ME2

USB / USB EDC

8GB ~ 128GB

Features

  • High performance with USB 2.0 interface
  • Wear Leveling supported
  • Low power consumption
  • ECC capability up to 72bit / 1024 bytes
  • Pin pitch 2.54mm / 2.00mm
  • Mounting hole supported
  • Supports wide temperature from -40°C to 85°C

BORN FOR SUPERIOR PERFORMANCE

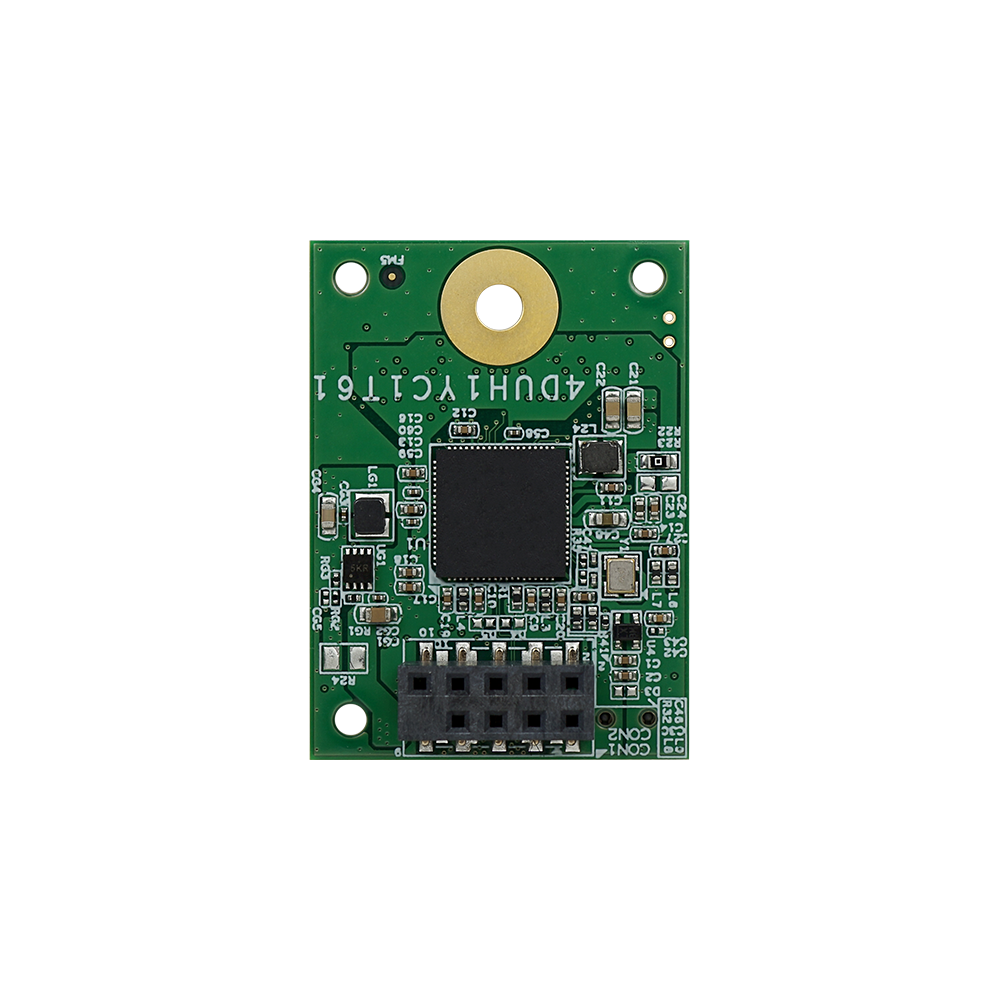

The Innodisk USB EDC (Embedded Disk Card) products provide high capacity USB Flash memory storage that electrically complies with USB 2.0. The device features attractive small form factor and the connectivity over USB 2.0 and the NAND Flash architecture provide a faster data transmission.


SPECIFICATIONS

Model Name

USB EDC Horizontal 2ME2

Flash Type

MLC

Interface

USB 2.0

Form Factor

USB EDC Horizontal

Capacity

8GB ~ 128GB

Sequential R / W (MB/sec, max.)

40 / 25

P/E Cycle

3,000

TBW (Max.)

172

Storage Temperature

-40°C ~ 85°C

Max. Power Consumption

0.45W

Max. Channels

1

External DRAM Buffer

N

Features

H/W Write Protect, S.M.A.R.T.

Dimension (W x L x H/mm)

Pin Pitch 2.00 : 26.6 x 36.9 x 6.75 Pin Pitch 2.54 : 26.6 x 36.9 x 9.85

Vibration

5G@[7 ~ 2000Hz]

Shock

50G@0.5ms

MTBF

>3 million hours

Warranty

3 Years


ORDER INFORMATION

Operating Temperature

Standard Grade

(0°C ~ 70°C)

Industrial Grade

(-40°C ~ 85°C)

8GB

DEUH%-08GDQ1BC1SC

DEUH%-08GDQ1BW1SC

16GB

DEUH%-16GDQ1BC1SC

DEUH%-16GDQ1BW1SC

32GB

DEUH%-32GDQ1BC1SC

DEUH%-32GDQ1BW1SC

64GB

DEUH%-64GDQ1BC1SC

DEUH%-64GDQ1BW1SC

128GB

DEUH%-A28DQ1BC1SC

DEUH%-A28DQ1BW1SC

%. 1 : pin pitch = 2.54mm / 2 : pin pitch = 2.00mm


For more information, please contact our support.
