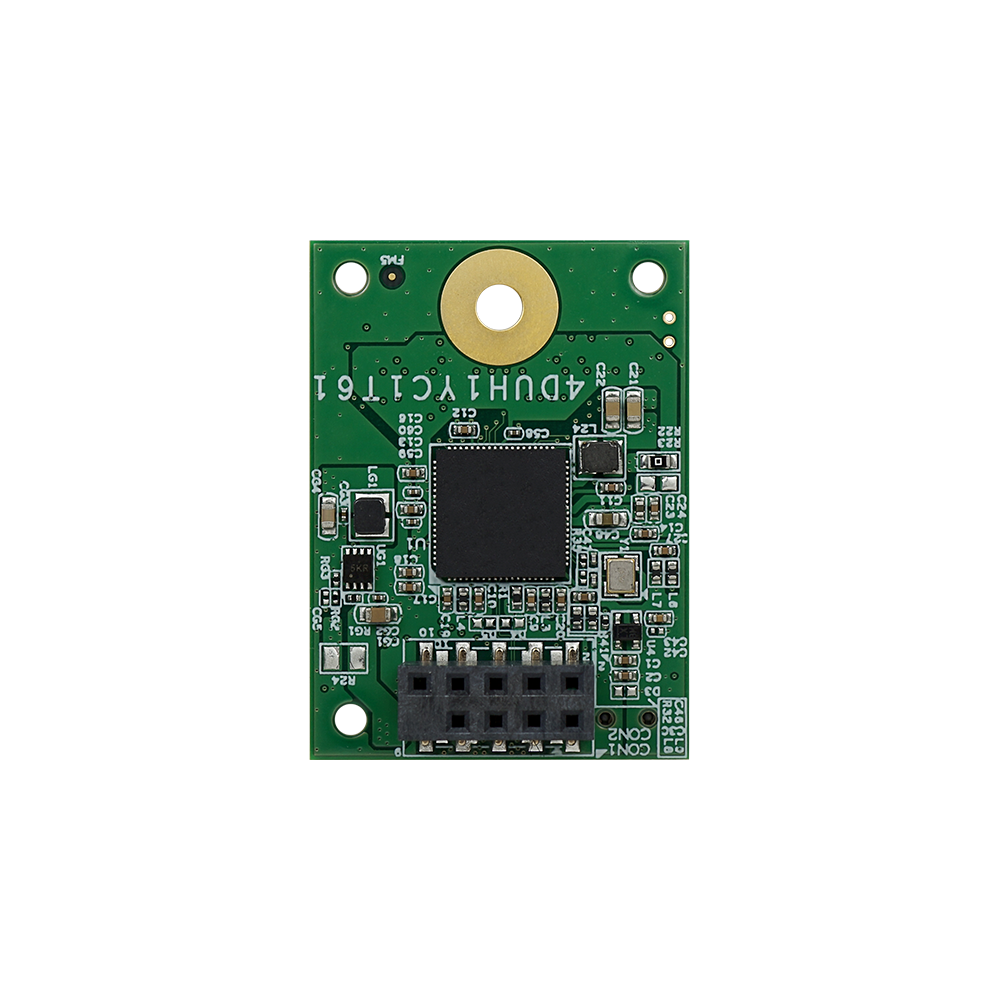

USB EDC Horizontal 2SE2

USB / USB EDC

512MB ~ 32GB

Features

  • High performance with USB 2.0 interface
  • Wear Leveling supported
  • Low power consumption
  • ECC capability up to 72bit / 1024 bytes
  • Pin pitch 2.54mm / 2.00mm
  • Mounting hole supported
  • Supports wide temperature from -40°C to 85°C

BORN FOR SUPERIOR PERFORMANCE

The Innodisk USB EDC (Embedded Disk Card) products provide high capacity USB Flash memory storage that electrically complies with USB 2.0. The device features attractive small form factor and the connectivity over USB 2.0 and the NAND Flash architecture provide a faster data transmission.


SPECIFICATIONS

Model Name

USB EDC Horizontal 2SE2

Flash Type

SLC

Interface

USB 2.0

Form Factor

USB EDC Horizontal

Capacity

512MB ~ 32GB

Sequential R / W (MB/sec, max.)

30 / 20

P/E Cycle

60,000

TBW (Max.)

1,728

Storage Temperature

-40°C ~ 85°C

Max. Power Consumption

0.51W

Max. Channels

1

External DRAM Buffer

N

Features

H/W Write Protect, S.M.A.R.T.

Dimension (W x L x H/mm)

Pin Pitch 2.00 : 26.6 x 36.9 x 6.75 Pin Pitch 2.54 : 26.6 x 36.9 x 9.85

Vibration

5G@[7 ~ 2000Hz]

Shock

50G@0.5ms

MTBF

>3 million hours

Warranty

5 Years


ORDER INFORMATION

Operating Temperature

Standard Grade

(0°C ~ 70°C)

Industrial Grade

(-40°C ~ 85°C)

512MB

DEUH%-512DQ1AC1SB

DEUH%-512DQ1AW1SB

1GB

DEUH%-01GDQ1AC1SB

DEUH%-01GDQ1AW1SB

2GB

DEUH%-02GDQ1AC1SB

DEUH%-02GDQ1AW1SB

4GB

DEUH%-04GDQ1AC1SB

DEUH%-04GDQ1AW1SB

8GB

DEUH%-08GDQ1AC1SB

DEUH%-08GDQ1AW1SB

16GB

DEUH%-16GDQ1AC1SB

DEUH%-16GDQ1AW1SB

32GB

DEUH%-32GDQ1AC1SB

DEUH%-32GDQ1AW1SB

%. 1 : pin pitch = 2.54mm / 2 : pin pitch = 2.00mm
