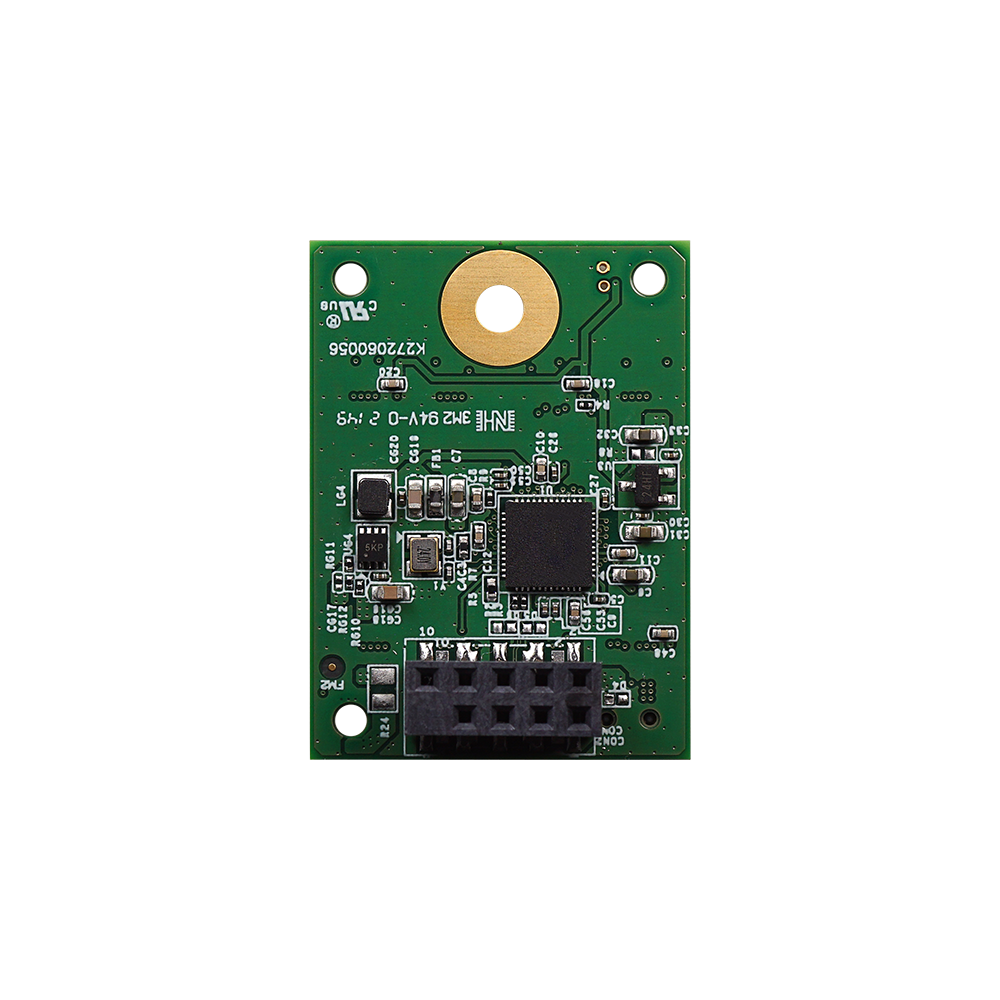

USB EDC Horizontal 2SE3

USB / USB EDC

4GB ~ 32GB

Features

  • High performance with USB 2.0 interface
  • Wear Leveling supported
  • Low power consumption
  • ECC capability up to 72-bit / 1024 Bytes
  • Pin pitch 2.54mm / 2.00mm
  • Mounting hole supported
  • Supports wide temperature from -40°C to 85°C

BORN FOR SUPERIOR PERFORMANCE

The Innodisk USB EDC (Embedded Disk Card) products provide high-capacity USB Flash memory storage that electrically complies with USB 2.0. The device features an attractive small form factor, and the connectivity over USB 2.0 and the NAND Flash architecture provide faster data transmission.


SPECIFICATIONS

Model Name

USB EDC Horizontal 2SE3

Flash Type

SLC

Interface

USB 2.0

Form Factor

USB EDC Horizontal

Capacity

4GB ~ 32GB

Sequential R / W (MB/sec, max.)

35 / 35

TBW (Max.)

1,728

Storage Temperature

-40°C ~ 85°C

Max. Power Consumption

0.36W

Max. Channels

1

External DRAM Buffer

N

Features

H/W Write Protect, S.M.A.R.T.

Dimension (W x L x H/mm)

Pin Pitch 2.00mm : 26.6 x 36.9 x 6.75
Pin Pitch 2.54mm: 26.6 x 36.9 x 9.85

Vibration

20G@[7 ~ 2000Hz]

Shock

1500G@0.5ms

MTBF

>3 million hours

Warranty

5 Years


ORDER INFORMATION

Operating Temperature

Standard Grade

(0°C ~ 70°C)

Industrial Grade

(-40°C ~ 85°C)

4GB

DEUH%-04GI61AC*SB

DEUH%-04GI61AW*SB

8GB

DEUH%-08GI61AC*SB

DEUH%-08GI61AW*SB

16GB

DEUH%-16GI61AC*SB

DEUH%-16GI61AW*SB

32GB

DEUH%-32GI61AC*SB

DEUH%-32GI61AW*SB

%. 1 : pin pitch = 2.54mm / 2 : pin pitch = 2.00mm
*. 1 : 5V / 2 : 3.3V
