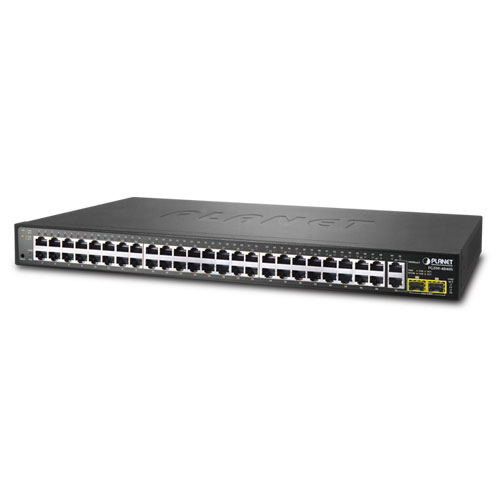

FGSW-4840S

FGSW-4840S
48-Port 10/100TX + 2-Port Gigabit + 2-Port 1000X SFP Managed Switch


Key Features

Physical Port

  • 48-port 10/100Base-TX Fast Ethernet RJ45 copper, auto MDI / MDIX
  • 2-port 10/100/1000Base-T Gigabit Ethernet RJ45 copper, auto MDI / MDIX
  • 2 1000Base-X mini-GBIC/SFP slots
  • Reset button for system factory default


Layer 2 Features

  • Prevents packet loss with back pressure (half-duplex) and IEEE 802.3x pause frame flow control (full-duplex)
  • High-performance Store and Forward architecture, and runt/CRC filtering eliminates erroneous packets to optimize the network bandwidth
  • Supports VLAN
    • - IEEE 802.1Q tagged VLAN, up to 512 VLAN groups, out of 4094 VLAN IDs- Management VLAN
  • Supports Spanning Tree Protocol
    • - STP (Spanning Tree Protocol)- RSTP (Rapid Spanning Tree Protocol)- MSTP (Multiple Spanning Tree Protocol)- Loop Guard, Root Guard, TC, BPDU Guard, STP BPDU Guard, BPDU Filtering
  • Supports Link Aggregation
    • - IEEE 802.3ad Link Aggregation Control Protocol (LACP)- Cisco ether-channel (Static Trunk)- Maximum 6 trunk groups, up to 4 ports per trunk group
  • Provides port mirror (many-to-1)


Quality of Service

  • Ingress / Egress Rate Limit per port bandwidth control
  • Storm Control support
    • - Broadcast / Unknown Unicast / Unknown Multicast
  • Traffic classification
    • - IEEE 802.1p CoS- DSCP / ToS priority
  • Strict priority, Weighted Round Robin (WRR) and Equal CoS policies
  • Voice VLAN

Multicast

  • IGMP Snooping v1, v2 and v3
  • Multicast IP Table / Static Multicast IP
  • Multicast Filter


Security

  • L2 / L3 / L4 Access Control List
  • MAC Security
    • Static MACMAC Filtering
  • Port Security for Source MAC address entries filtering
  • Port Isolation, loopback detection
  • DHCP Filtering


Management

  • Switch Management Interface
    • - Web switch management- Telnet Command Line Interface- SNMP v1, v2c and v3- SSL v2, v3 / SSH v1,v2 secure access- IP / MAC / Port-based Web access control
  • Static, DHCP and BooTP for IP address assignment
  • System Maintenance
    • - Firmware upload / download via HTTP- Configuration upload / download through HTTP- Hardware reset button for system reset to factory default- System CPU / Memory status monitor
  • System Time Setting
    • - Manual Setting- Network Time Protocol- PC clock synchronization
  • Daylight Saving Time Setting
  • SNMP trap for interface Link Up and Link Down notification
  • System Local Log / remote log / backup log
  • Four RMON groups (history, statistics, alarms and events)
  • Virtual Cable Test / Loop Back Test
