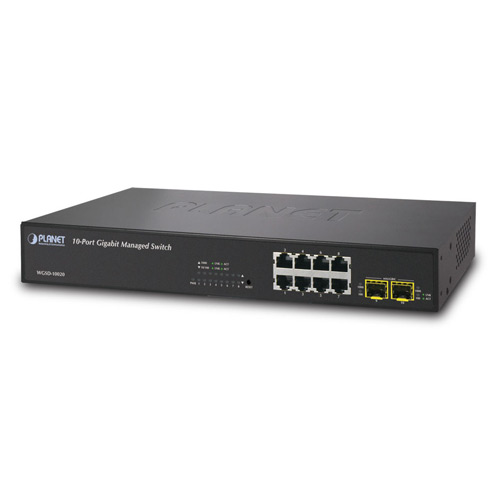

WGSD-10020

WGSD-10020
L2+ 8-Port 10/100/1000T + 2 100/1000X SFP Managed Switch


Key Features

Physical Port

  • 8-Port 10/100/1000BASE-T Gigabit Ethernet RJ45
  • 2 100/1000BASE-X mini-GBIC/SFP slots, SFP type auto detection
  • RS-232 DB9 console interface for basic management and setup


Layer 2 Features

  • Prevents packet loss with back pressure (half-duplex) and IEEE 802.3x pause frame flow control (full-duplex)
  • High performance of Store-and-Forward architecture and runt/CRC filtering eliminates erroneous packets to optimize the network bandwidth
  • Storm Control support
    • - Broadcast / Multicast / Unicast / Unknown-unicast
  • Supports VLAN
    • - IEEE 802.1Q tagged VLAN- Up to 255 VLANs groups, out of 4095 VLAN IDs- Provider Bridging (VLAN Q-in-Q) support (IEEE 802.1ad)- Private VLAN Edge (PVE)- Protocol-based VLAN- MAC-based VLAN- IP Subnet-based VLAN- Voice VLAN- Management VLAN
  • Supports Spanning Tree Protocol
    • - STP, IEEE 802.1D Spanning Tree Protocol- RSTP, IEEE 802.1w Rapid Spanning Tree Protocol- MSTP, IEEE 802.1s Multiple Spanning Tree Protocol- STP BPDU Guard and BPDU filtering
  • Supports Link Aggregation
    • - IEEE 802.3ad Link Aggregation Control Protocol (LACP)- Cisco ether-channel (Static Trunk)- Maximum 5 trunk groups, up to 5 ports per trunk group- Up to 20Gbps bandwidth (full duplex mode)
  • Provides port mirror (many-to-1)
  • Port Mirroring to monitor the incoming or outgoing traffic on a particular port
  • Loop protection to avoid broadcast loops


Layer 3 IP Routing Features

  • Supports maximum 32 software static routes and route summarization


Quality of Service

  • Ingress Shaper and Egress Rate Limit per port bandwidth control
  • 8 priority queues on all switch ports
  • Traffic classification
    • - IEEE 802.1p CoS- TOS / DSCP / IP Precedence of IPv4/IPv6 packets- IP TCP/UDP port number- Typical network application
  • Strict priority and Weighted Round Robin (WRR) CoS policies
  • Traffic-policing policies on the switch port
  • DSCP remarking


Multicast

  • Supports IGMP Snooping v1, v2 and v3 for IPv4 multicasting network
  • Supports MLD Snooping v1 and v2 for IPv6 multicasting network
  • Querier mode support
  • IGMP Snooping port filtering
  • MLD Snooping port filtering
  • MVR (Multicast VLAN Registration)


Security

  • Authentication
    • ? IEEE 802.1x Port-based / MAC-based network access authentication- Built-in RADIUS client to co-operate with the RADIUS servers- TACACS+ login users access authentication- RADIUS / TACACS+ users access authentication
  • Access Control List
    • ? IPv4 / IPv6 IP-based ACL- MAC-based ACL
  • Source MAC / IP address binding
  • Port Security for Source MAC address entries filtering
  • DHCP Snooping to filter distrusted DHCP messages
  • Dynamic ARP Inspection discards ARP packets with invalid MAC address to IP address binding
  • IP Source Guard prevents IP spoofing attacks
  • Auto DoS rule to defend DoS attack
  • IP address access management to prevent unauthorized intruder


Management

    • IPv4 and IPv6 dual stack management
    • Switch Management Interfaces
      • - Console / Telnet Command Line Interface- Web switch management- SNMP v1, v2c, and v3 switch management- SSH / SSL secure access
    • User Privilege levels control
    • System Maintenance


    - Configuration upload / download through Web interface- Dual Images- Reset button for system reboot or reset to factory default- Built-in Trivial File Transfer Protocol (TFTP) client
  • Four RMON groups (history, statistics, alarms, and events)
  • IPv6 IP Address / NTP / DNS management and ICMPv6
  • BOOTP and DHCP for IP address assignment
  • DHCP Relay
  • DHCP Option82
  • NTP (Network Time Protocol)
  • Link Layer Discovery Protocol (LLDP) Protocol and LLDP-MED
  • Cable Diagnostic technology provides the mechanism to detect and report potential cabling issues
  • PLANET Smart Discovery Utility for deploy management
